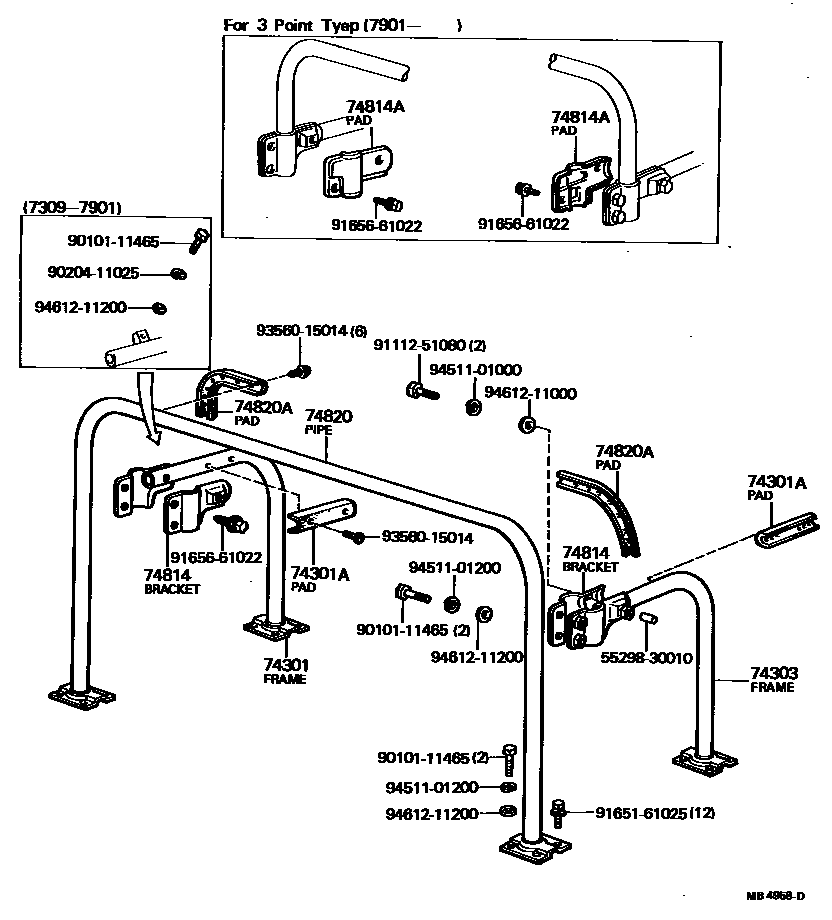

PROTECTOR PIPE, ROLL BAR & HANDRAIL

74301FRAME SUB-ASSY, PASSENGER SEAT PROTECTOR, NO.1

main63202-90300iFJ40197309-197901

sub63202-90307

main63202-90301iBJ40197402-197501

main63202-90302iBJ43,FJ43..GEN197402-197901

sub63202-90308

main63202-90303iBJ40,FJ40,45..ARL,EUR197611-197901

sub63202-90307

main63202-90304iBJ43,FJ43..EUR197705-197901

sub63202-90308

main63202-90305iBJ40,FJ40..RB..GEN197901-198007

sub63202-90307

main63202-90306iBJ43,FJ43..RB..GEN197901-198007

main63202-90307iFJ45..RB197901-198007

W/3-POINT FRONT SEAT BELT

main63202-90308iBJ43,FJ43..RB197901-198007

W/3-POINT FRONT SEAT BELT

74301APAD, SAFETY BAR, SIDE, NO.1

main63208-90300iFJ40197309-198007

74303FRAME SUB-ASSY, PASSENGER SEAT PROTECTOR, NO.2

main63203-90300iBJ40,FJ40..GEN197309-197901

sub63203-90307

main63203-90301iBJ40197402-197501

main63203-90302iBJ43,FJ43197402-197901

sub63203-90308

main63203-90303iBJ40,FJ40..ARL,EUR197611-197901

sub63203-90307

main63203-90304iBJ43,FJ43..EUR197705-197901

sub63203-90308

main63203-90305iBJ40,FJ40..RB..GEN197901-198007

sub63203-90307

main63203-90306iBJ43,FJ43..RB..GEN197901-198007

main63203-90307iFJ45..RB197901-198007

W/3-POINT FRONT SEAT BELT

main63203-90308iBJ43,FJ43..RB197901-198007

W/3-POINT FRONT SEAT BELT

74814BRACKET, PROTECTOR PIPE

main63222-90300iFJ40197309-197901

RH.

sub63222-90303

main63222-90301iBJ40,FJ40,45..ARL,EUR197611-197901

RH.

sub63222-90303

main63222-90302iBJ4#,FJ40,43..RB..GEN197901-198007

RH.

sub63222-90303

main63222-90303iFJ45..RB197901-198007

RH.,W/3-POINT FRONT SEAT BELT

main63222-90303iBJ4#,FJ40,43..RB197901-198007

RH.

main63232-90300iFJ40197309-197901

LH.

sub63232-90303

main63232-90301iBJ4#,FJ4#..ARL,EUR197611-197901

LH.

sub63232-90303

main63232-90302iBJ4#,FJ40,43..RB..GEN197901-198007

LH.

sub63232-90303

main63232-90303iBJ4#,FJ40,43..RB197901-198007

LH.

main63232-90303iBJ4#,FJ40,43..RB197901-198007

LH.,W/3-POINT FRONT SEAT BELT

74814APAD SUB-ASSY, SAFETY BAR BRACKET

main63204-90300iBJ4#,FJ40,43..RB197901-198007

RH.,W/3-POINT FRONT SEAT BELT

main63205-90300iBJ4#,FJ40,43..RB197901-198007

LH.,W/3-POINT FRONT SEAT BELT

74820PIPE ASSY, PROTECTOR

main63201-90300iBJ4#,FJ40,43197309-197901

sub63201-90304

main63201-90302iBJ4#,FJ4#..ARL,EUR197611-197901

sub63201-90304

main63201-90303iBJ4#,FJ40,43..RB..GEN197901-198007

sub63201-90304

main63201-90304iFJ45..RB197901-198007

W/3-POINT FRONT SEAT BELT

74820APAD, SAFETY BAR, FRONT

main63206-90300iFJ40197309-198007

RH.

main63207-90300iBJ4#,FJ40,43..RB197309-198007

LH.

5529830010CAP, TEE NUT(FOR 8MM)

main55298-30010

9010111465

main90101-11465

9020411025

main90204-11025

9111251080

main91112-51080

9165161025

main91651-61025

9165661022

main91656-61022

9356015014

main93560-15014

9451101000

main94511-01000

9451101200

main94511-01200

9461211000

main94612-11000

9461211200

main94612-11200

18 parts on this diagram · 1 diagram in section
