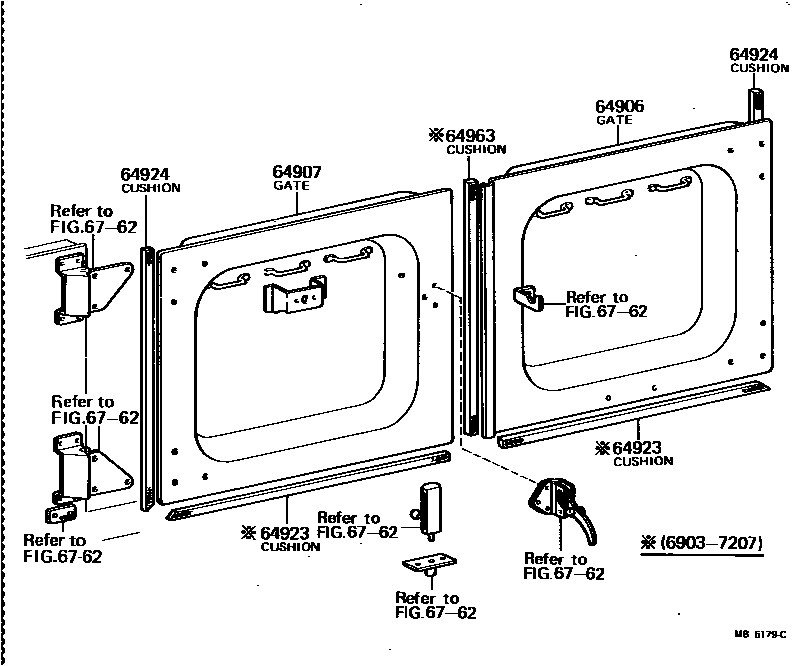

BACK DOOR PANEL & GLASS
64906GATE SUB-ASSY, REAR SWING, RH
FOR LARGE LICENSE PLATE
EUROPE SPEC.
EUROPE SPEC.
FOR LICENSE PLATE POSITION LH.
FOR LARGE LICENSE PLATE
FOR LICENSE PLATE POSITION LH.
64907GATE SUB-ASSY, REAR SWING, LH
FOR LICENSE PLATE POSITION LH.
FOR LARGE LICENSE PLATE
EUR.,FOR LARGE LICENSE PLATE
FOR LARGE LICENSE PLATE
EUR.,FOR LARGE LICENSE PLATE
FOR LICENSE PLATE POSITION LH.
FOR LARGE LICENSE PLATE
64924CUSHION, REAR DROP GATE, SIDE
RH.,LICENSE PLATE POSITION LH.
RH.
RH.
sub64922-90302
LH.,LICENSE PLATE POSITION LH.
LH.
LH.
sub64962-90314
64963CUSHION, REAR SWING GATE, LOWER
sub64964-60010
6762
6 parts on this diagram · 8 diagrams in section
