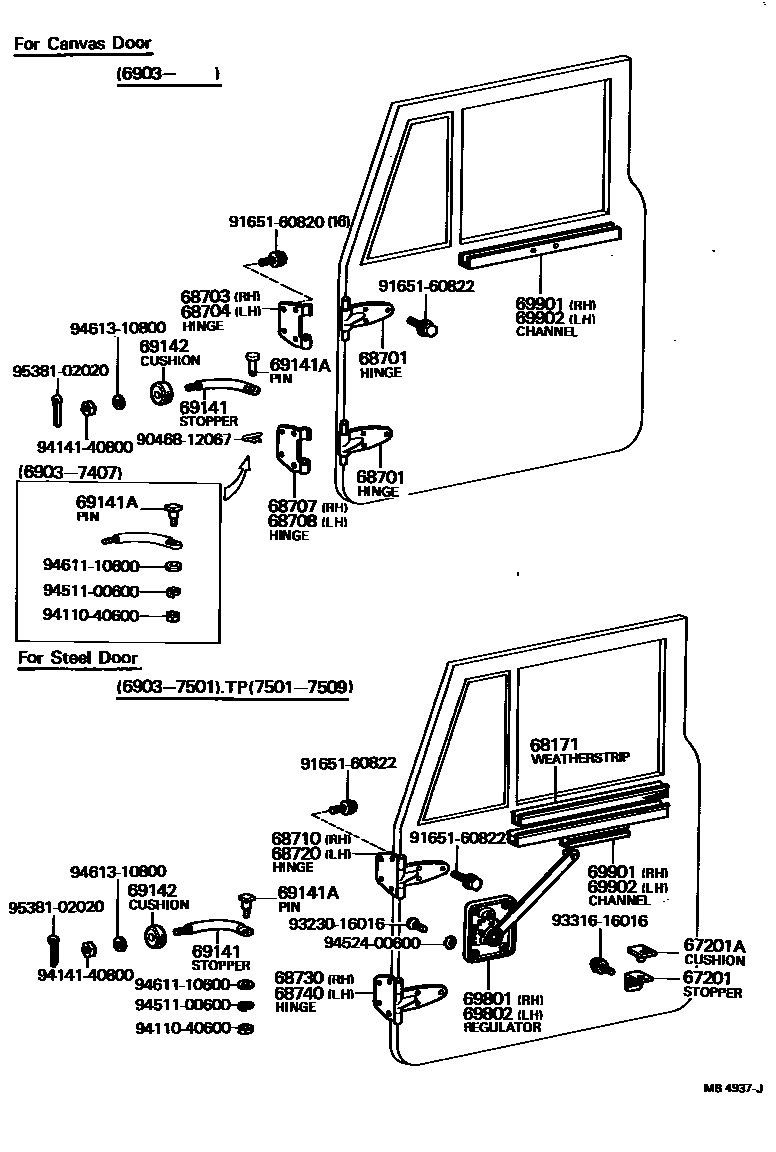

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0003 1 0005 1

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main67404-90332iBJ4#,FJ40,43,45,HJ45196903-197509

67201ACUSHION, DOOR GLASS DOWN STOPPER(FOR FRONT DOOR)

main68191-30010iBJ4#,FJ40,43,45,HJ45196903-197509

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-90301iBJ40,FJ40,45,HJ45..PIC,V197501-198007

sub69971-60020

main68171-90301iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

sub69971-60020

main68171-90351iFJ55196903-197901

main68171-90352iFJ55197901-198007

main68211-60011iBJ4#,FJ40,43..TP196903-197509

68701HINGE SUB-ASSY, CANVAS DOOR MALE

main68701-60011iBJ4#,FJ40,43..TP..GEN196903-198007

68703HINGE SUB-ASSY, CANVAS DOOR FEMALE, UPPER RH

main68713-60010iBJ4#,FJ40,42,43..TP196903-198007

68704HINGE SUB-ASSY, CANVAS DOOR FEMALE, UPPER LH

main68714-60010iBJ4#,FJ40,42,43..TP196903-198007

68707HINGE SUB-ASSY, CANVAS DOOR FEMALE, LOWER RH

main68713-60010iBJ4#,FJ40,42,43..TP196903-198007

68708HINGE SUB-ASSY, CANVAS DOOR FEMALE, LOWER LH

main68714-60010iBJ4#,FJ40,42,43..TP196903-198007

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60012iBJ4#,FJ40,43,45,HJ45196903-198007

main68710-90351iFJ55196903-198007

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-90351iFJ55196903-198007

main68720-60012iBJ4#,FJ40,43,45,HJ45196903-198007

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-60012iBJ4#,FJ40,43,45,HJ45196903-198007

main68730-90352iFJ55196903-198007

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68720-60012iBJ4#,FJ40,43,45,HJ45196903-198007

main68740-90352iFJ55196903-198007

69141STOPPER, FRONT DOOR OPEN

main68957-60010iBJ4#,FJ40,43..TP196903-197509

FOR STEEL DOOR

main68980-90300iBJ4#,FJ4#,HJ45197501-198007

FOR STEEL DOOR

main68980-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69141-60010iBJ4#,FJ40,43..TP..GEN196903-198007

FOR CANVAS DOOR

69141APIN, FRONT DOOR OPEN STOPPER

main68898-60010iBJ4#,FJ4#,HJ45196903-197407

main68898-60010iBJ4#,FJ4#,HJ45197407-197509

FOR STEEL DOOR

main68898-90300iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main68898-90300iBJ40,FJ40,45,HJ45..PIC,V197501-198007

FOR STEEL DOOR

main90240-08146iBJ4#,FJ40,43..TP197407-198007

FOR CANVAS DOOR

sub90240-08028

69142CUSHION, DOOR OPEN STOPPER

main69101-90300iBJ4#,FJ4#,HJ45197302-198007

main90540-08008iFJ4#,HJ45196903-197302

sub69101-90300

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-90300iBJ4#,FJ4#,HJ45197306-197509

main69801-90301iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69801-90301iBJ40,FJ40,45,HJ45..PIC,V197501-197509

main69801-90302iBJ40,FJ40,45,HJ45..PIC,V197501-197509

FOR W/VENTILATING WINDOW

main69801-90303iBJ4#,FJ4#,HJ45197509-198007

main69801-90304iBJ4#,FJ4#,HJ45197509-198007

FOR W/VENTILATING WINDOW

main69801-90351iFJ55196903-197309

main69801-90352iFJ55197309-197509

main69801-90353iFJ55197509-198007

main69810-60011iFJ40,43,45,HJ45196903-197306

sub69810-90300

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-90300iBJ4#,FJ40,43..TP197306-197509

main69802-90301iBJ40,FJ40,45,HJ45..PIC,V197501-197509

main69802-90301iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69802-90302iBJ40,FJ40,45,HJ45..PIC,V197501-197509

FOR W/VENTILATING WINDOW

main69802-90303iBJ4#,FJ4#,HJ45197509-198007

main69802-90304iBJ4#,FJ4#,HJ45197509-198007

FOR W/VENTILATING WINDOW

main69802-90351iFJ55196903-197309

main69802-90352iFJ55197309-197509

main69802-90353iFJ55197509-198007

main69820-60011iFJ40,43,45,HJ45196903-197306

sub69820-90300

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main68211-60020iBJ4#,FJ40,43..TP..GEN196903-198007

FOR CANVAS DOOR

main69901-90300iBJ4#,FJ40,43..TP196903-197509

FOR STEEL DOOR

main69901-90301iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69901-90301iBJ40,FJ40,45,HJ45..PIC,V197501-198007

FOR STEEL DOOR

main69901-90303iBJ40,FJ40,45,HJ45..PIC,V197501-197901

FOR W/VENTILATING WINDOW

sub69901-90302

main69901-90351iFJ55196903-197309

main69901-90351iBJ4#,FJ4#,HJ45197901-198007

FOR W/VENTILATING WINDOW

main69901-90352iFJ55197309-198007

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main68211-60020iBJ4#,FJ40,42,43..TP196903-198007

FOR CANVAS DOOR

main69901-90303iBJ40,FJ40,45,HJ45..PIC,V197501-197901

FOR W/VENTILATING WINDOW

sub69901-90302

main69902-90300iBJ4#,FJ40,43,45,HJ45196903-197509

FOR STEEL DOOR

main69902-90301iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main69902-90301iBJ40,FJ40,45,HJ45..PIC,V197501-198007

FOR STEEL DOOR

main69902-90351iFJ55196903-197309

main69902-90352iFJ55197309-198007

main69903-90351iBJ4#,FJ4#,HJ45197901-198007

FOR W/VENTILATING WINDOW

9046812067

main90468-12067

9165160820

main91651-60820

9165160822

main91651-60822

9323016016

main93230-16016

9331616016

main93316-16016

9411040600

main94110-40600

9414140800

main94141-40800

9451100600

main94511-00600

9452400600

main94524-00600

9461110600

main94611-10600

9461310800

main94613-10800

9538102020

main95381-02020

31 parts on this diagram · 3 diagrams in section
