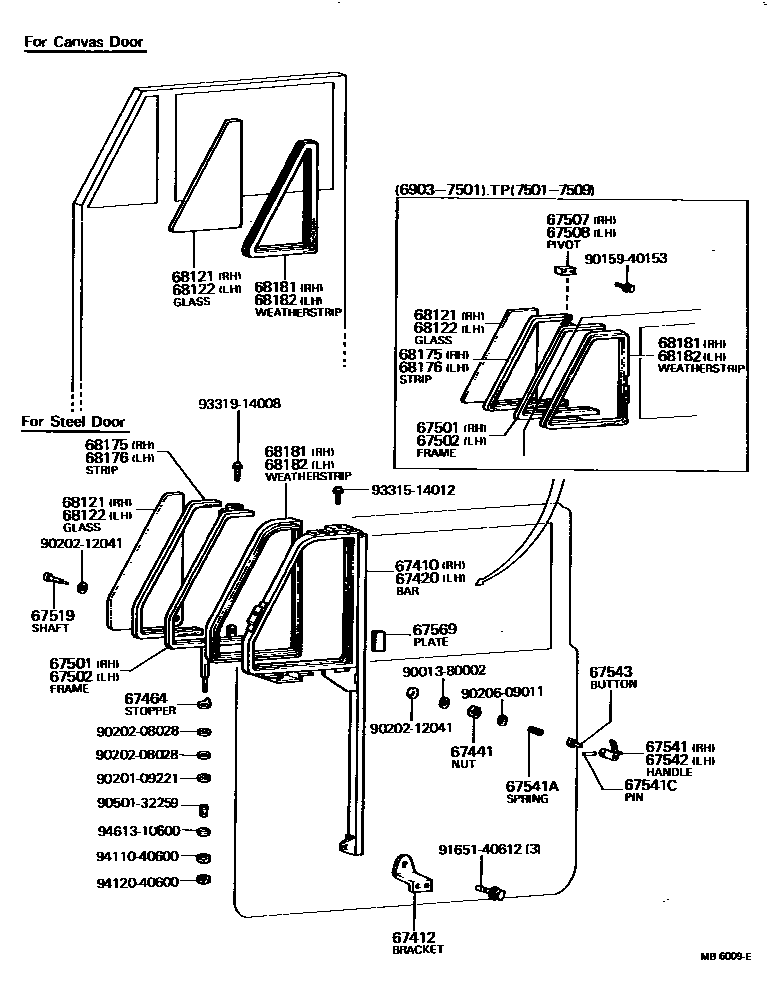

FRONT DOOR VENTILATOR WINDOW

0001 1 0002 1

67410BAR ASSY, FRONT DOOR WINDOW DIVISION, RH

main67401-90301iBJ40,FJ40,45,HJ45..PIC,V197501-197509

main67510-90351iFJ55196903-197309

sub67401-90352

sub90202-08039

sub90206-11029

sub93219-14006

sub94110-40600

sub94613-10600

67412BRACKET, FRONT DOOR DIVISION BAR SET

main67481-90301×2iBJ40,FJ40,45,HJ45..PIC,V197501-197509

67420BAR ASSY, FRONT DOOR WINDOW DIVISION, LH

main67402-90301iBJ4#,FJ4#,HJ45197509-198007

main67520-90351iFJ55196903-197309

sub67402-90352

sub90202-08039

sub90206-11029

sub93219-14006

sub94110-40600

sub94613-10600

67441NUT, LOCK HANDLE

main67553-95011×2iBJ4#,FJ40,43,45,HJ45196908-197901

sub90170-12015

main90013-70001×2iFJ40,43,45196903-196908

main90170-12166×2iBJ4#,FJ4#,HJ45197901-198007

67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING

main67464-90351×2iFJ55196903-197309

main67559-60010×2iBJ4#,FJ40,43,45,HJ45196903-197509

main67559-90300×2iBJ4#,FJ4#,HJ45197509-198007

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67501-60011iFJ40,43,45,HJ45196903-197205

main67501-90300iBJ4#,FJ40,43..TP197501-197509

main67501-90301iBJ4#,FJ4#,HJ45197509-198007

main67501-90351iFJ55196903-197309

sub67501-90903

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67502-60011iFJ40,43,45,HJ45196903-197205

main67502-90300iBJ4#,FJ40,43..TP197501-197509

main67502-90301iBJ40,FJ40,45,HJ45..PIC,V197501-197509

main67502-90351iFJ55196903-197309

sub67502-90903

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67541-60022iBJ4#,FJ40,43..TP197501-197509

main67544-90351iFJ55196903-197309

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67541-60022iBJ4#,FJ40,43..TP197501-197509

main67545-90351iFJ55196903-197309

67519SHAFT, VENTILATING WINDOW LOCK HANDLE

main67519-60010×2iFJ40,43,45196903-196908

sub67533-95011

main67519-60011×2iBJ4#,FJ40,43,45,HJ45196908-197501

67541HANDLE, VENTILATING WINDOW LOCK, RH

main67541-20021iFJ55196903-197309

main67561-95400iBJ4#,FJ40,43,45,HJ45196903-198007

67541ASPRING, COMPRESSION(FOR VENTILATING WINDOW LOCK HANDLE)

main90501-05014×2iFJ40,43,45,55,HJ45196903-197309

67541CPIN, VENTILATING WINDOW LOCK HANDLE

main67563-95400×2iBJ4#,FJ40,43,45,HJ45196903-198007

main90245-02019×2iFJ55196903-197309

67542HANDLE, VENTILATING WINDOW LOCK, LH

main67542-20021iFJ55196903-197309

main67562-95400iBJ4#,FJ40,43,45,HJ45196903-198007

67543BUTTON, VENTILATING WINDOW LOCK HANDLE PUSH

main67543-20020×2iFJ55196903-197309

main67564-95400×2iBJ4#,FJ40,43,45,HJ45196903-198007

67569PLATE,FRONT DOOR VENTILATING WINDOW HANDLE

main67569-60020×2iBJ4#,FJ40,43,45,HJ45196903-197509

main67569-90300×2iBJ4#,FJ4#,HJ45197509-198007

68121GLASS, VENT WINDOW, RH

main68121-60012iBJ4#,FJ40,43..TP197501-197509

FOR STEEL DOOR

main68121-60020iFJ40,42,43..TP196903-197307

FOR CANVAS DOOR

main68121-90300iBJ4#,FJ40,43..TP..GEN197901-198007

FOR CANVAS DOOR

main68121-90302iBJ4#,FJ4#,HJ45197509-198007

TP.T=5.0,FOR STEEL DOOR

main68121-90303iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197608-198007

TN.TP.T=5.0,FOR STEEL DOOR

main68121-90351iFJ55196903-197309

68122GLASS, VENT WINDOW, LH

main68121-60012iBJ4#,FJ40,43..TP197501-197509

FOR STEEL DOOR

main68121-60020iFJ40,42,43..TP196903-197307

FOR CANVAS DOOR

main68121-90300iBJ4#,FJ40,43..TP..GEN197901-198007

FOR CANVAS DOOR

main68121-90302iBJ4#,FJ4#,HJ45197509-198007

TP.T=5.0,FOR STEEL DOOR

main68121-90303iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197608-198007

TN.TP.T=5.0,FOR STEEL DOOR

main68121-90351iFJ55196903-197309

68175WEATHERSTRIP, VENT WINDOW FRAME, RH

main68175-60020iFJ40,43,45,HJ45196903-197205

main68175-90300iBJ4#,FJ4#,HJ45197205-197806

main68175-90301iBJ4#,FJ4#,HJ45197806-198007

main68175-90351iFJ55196903-197309

68176WEATHERSTRIP, VENT WINDOW FRAME, LH

main68175-90300iBJ4#,FJ4#,HJ45197205-197806

main68175-90301iBJ4#,FJ4#,HJ45197806-198007

main68176-60020iFJ40,43,45,HJ45196903-197205

main68176-90351iFJ55196903-197309

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68175-60010iBJ4#,FJ40,43..TP..GEN197901-198007

FOR CANVAS DOOR

main68181-60010iBJ4#,FJ40,43..TP197501-197509

FOR STEEL DOOR

main68181-90300iBJ40,FJ40,45,HJ45..PIC,V197501-197509

FOR STEEL DOOR

main68181-90351iFJ55196903-197309

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68176-60010iBJ4#,FJ40,43..TP..GEN197901-198007

FOR CANVAS DOOR

main68182-60010iBJ4#,FJ40,43..TP197501-197509

FOR STEEL DOOR

main68182-90300iBJ40,FJ40,45,HJ45..PIC,V197501-197509

FOR STEEL DOOR

main68182-90351iFJ55196903-197309

9001380002

main90013-80002

9015940153

main90159-40153

9020109221

main90201-09221

9020208028

main90202-08028

9020212041

main90202-12041

9020609011

main90206-09011

9050132259

main90501-32259

9165140612

main91651-40612

9331514012

main93315-14012

9331914008

main93319-14008

9411040600

main94110-40600

9412040600

main94120-40600

9461310600

main94613-10600

35 parts on this diagram · 2 diagrams in section
