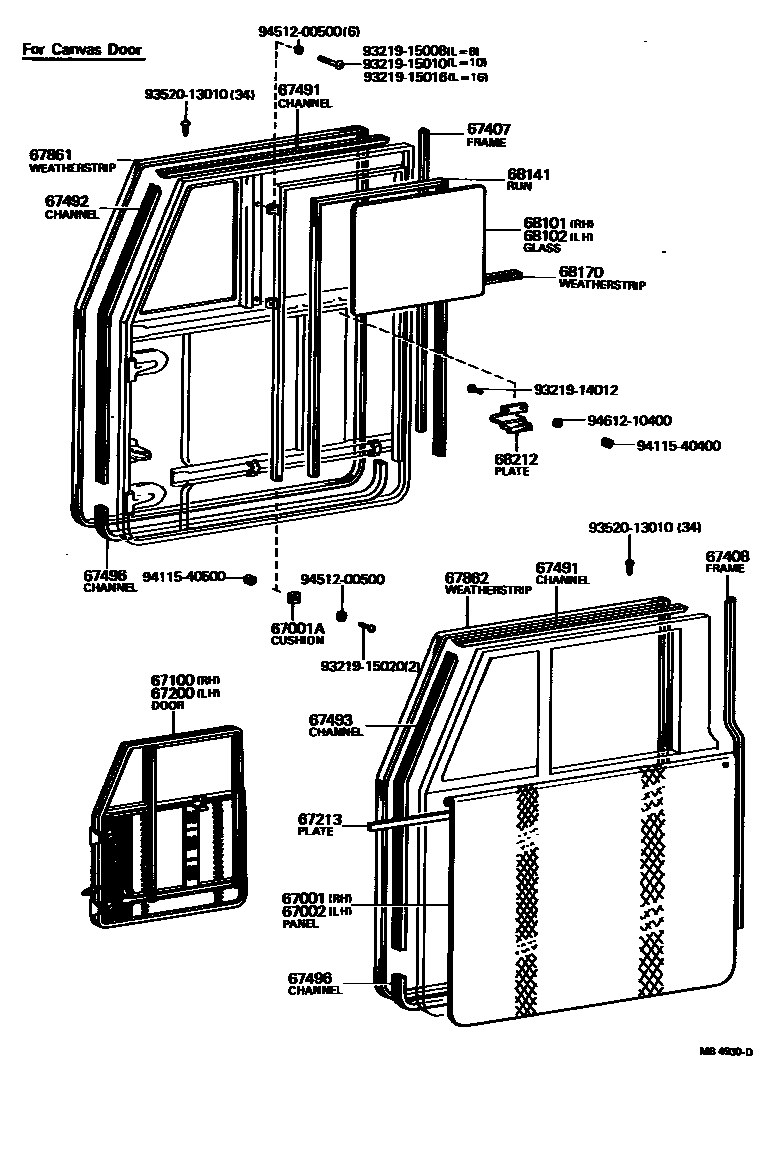

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0004 1 0006 1 0007 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60022iFJ40,43,45,HJ45..LHD196903-197207

STEEL DOOR

sub67001-90304

sub67451-90301¥1,740

sub69405-90300¥2,090

main67001-60030iFJ40,42,43..TP196903-197109

CANVAS DOOR

sub67001-90300

main67001-60032iFJ40,43,45,HJ45..RHD196903-197207

STEEL DOOR

sub67001-90302¥78,900

sub67451-90301¥1,740

sub68108-90300¥16,900

sub69405-90300¥2,090

main67001-60051iFJ40,45,HJ45..RHD..(PIC,V)196903-197207

W/DOOR TRIM

sub67001-90305

sub67451-90301¥1,740

sub69405-90300¥2,090

main67001-60061iFJ40,45,HJ45..LHD..(PIC,V)196903-197207

W/DOOR TRIM

sub67001-90306

sub67451-90301¥1,740

sub69405-90300¥2,090

main67001-90300iBJ4#,FJ40,42,43..TP197109-197608

CANVAS DOOR

main67001-90302iFJ4#,HJ45..RHD¥78,900197207-197309

STEEL DOOR

main67001-90304iFJ4#,HJ45..LHD197207-197309

STEEL DOOR

main67001-90305iFJ40,45,HJ45..RHD..(PIC,V)197207-197309

W/DOOR TRIM

main67001-90306iFJ40,45,HJ45..LHD..(PIC,V)197207-197309

W/DOOR TRIM

main67001-90307iBJ4#,FJ40,43..RHD..TP197309-197509

STEEL DOOR

main67001-90309iBJ4#,FJ40,43..LHD..TP197309-197509

STEEL DOOR

main67001-90310iBJ40,FJ40,45,HJ45..RHD..(PIC,V)197309-197501

W/DOOR TRIM

main67001-90311iBJ40,FJ40,45,HJ45..LHD..(PIC,V)197309-197501

W/DOOR TRIM

main67001-90312iBJ40,FJ40,45,HJ45..PIC,V197501-197608

STEEL DOOR

main67001-90312iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main67001-90313iBJ4#,FJ4#,HJ45197608-197901

STEEL DOOR

sub67001-90316¥78,800

main67001-90314iBJ4#,FJ40,43..TP..GEN197608-198007

CANVAS DOOR

main67001-90316iBJ4#,FJ4#,HJ45¥78,800197901-198005

STEEL DOOR

main67001-90352iFJ55¥123,000196903-197006

sub67001-90354

main67001-90354iFJ55197006-197309

main67001-90355iFJ55197109-197309

W/ARM REST & DOOR MIRROR

main67001-90356iFJ55197109-197309

W/DOOR MIRROR

main67001-90357iFJ55197006-197309

W/ARM REST

main67001-90358iFJ55¥123,000197309-197705

sub67001-90364

main67001-90359iFJ55¥123,000197309-197608

W/ARM REST

sub67001-90358¥123,000

main67001-90360iFJ55¥115,000197309-197705

W/ARM REST & DOOR MIRROR

sub67001-90365

main67001-90361iFJ55¥115,000197309-197608

W/DOOR MIRROR

sub67001-90360¥115,000

main67001-90362iFJ55..GEN197705-198007

main67001-90363iFJ55197705-197901

W/ARM REST & DOOR MIRROR

sub67001-90368

main67001-90366iFJ55..EUR197709-198007

main67001-90368iFJ55..ARL,GEN197901-198007

W/DOOR MIRROR

main67001-90800iBJ4#,FJ4#,HJ45¥68,400198005-198007

STEEL DOOR

sub67001-90802¥68,200

67001ACUSHION, FRONT DOOR PANEL

main69891-60010iBJ4#,FJ40,42,43..TP196903-198007

FOR STEEL DOOR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60022iFJ40,43,45,HJ45..LHD196903-197207

STEEL DOOR

sub67002-90304¥78,900

sub67451-90301¥1,740

sub69405-90300¥2,090

main67002-60030iFJ40,42,43..TP¥10,500196903-197109

CANVAS DOOR

sub67002-90300

main67002-60032iFJ40,43,45,HJ45..RHD196903-197207

STEEL DOOR

sub67002-90302¥78,900

sub67451-90301¥1,740

sub68109-90300¥16,900

sub69405-90300¥2,090

main67002-60051iFJ40,45,HJ45..RHD..(PIC,V)196903-197207

W/DOOR TRIM

sub67002-90305

sub67451-90301¥1,740

sub69405-90300¥2,090

main67002-60061iFJ40,45,HJ45..LHD..(PIC,V)196903-197207

W/DOOR TRIM

sub67002-90306

sub67451-90301¥1,740

sub69405-90300¥2,090

main67002-90300iBJ4#,FJ40,42,43..TP197109-197608

CANVAS DOOR

main67002-90302iFJ4#,HJ45..RHD¥78,900197207-197309

STEEL DOOR

main67002-90304iFJ4#,HJ45..LHD¥78,900197207-197309

STEEL DOOR

main67002-90305iFJ40,45,HJ45..RHD..(PIC,V)197207-197309

W/DOOR TRIM

main67002-90306iFJ40,45,HJ45..LHD..(PIC,V)197207-197309

W/DOOR TRIM

main67002-90307iBJ4#,FJ40,43..RHD..TP197309-197509

STEEL DOOR

main67002-90309iBJ4#,FJ4#,HJ45..LHD197309-197509

STEEL DOOR

main67002-90310iBJ40,FJ40,45,HJ45..RHD..(PIC,V)197309-197501

W/DOOR TRIM

main67002-90311iBJ40,FJ40,45,HJ45..LHD..(PIC,V)197309-197501

W/DOOR TRIM

main67002-90312iBJ40,FJ40..V197501-197608

STEEL DOOR

main67002-90312iFJ40,45,HJ45197407-197501

AUSTRALIA SPEC.

main67002-90313iBJ4#,FJ4#,HJ45197608-197901

STEEL DOOR

sub67002-90316¥78,800

main67002-90314iBJ4#,FJ40,43..TP197608-198007

CANVAS DOOR

main67002-90316iBJ4#,FJ4#,HJ45¥78,800197901-198005

STEEL DOOR

main67002-90352iFJ55¥123,000196903-197006

sub67002-90354

main67002-90354iFJ55197006-197309

main67002-90355iFJ55197109-197309

W/ARM REST & DOOR MIRROR

main67002-90356iFJ55197109-197309

W/DOOR MIRROR

main67002-90357iFJ55197006-197309

W/ARM REST

main67002-90358iFJ55¥123,000197309-197705

sub67002-90364

main67002-90359iFJ55¥123,000197309-197608

W/ARM REST

sub67002-90358¥123,000

main67002-90360iFJ55¥115,000197309-197705

W/ARM REST & DOOR MIRROR

sub67002-90365

main67002-90361iFJ55¥115,000197309-197608

W/DOOR MIRROR

sub67002-90360¥115,000

main67002-90362iFJ55197705-198007

main67002-90363iFJ55197705-197709

W/ARM REST & DOOR MIRROR

main67002-90366iFJ55..EUR197709-198007

main67002-90367iFJ55..ARL,GEN197709-198007

W/ARM REST & DOOR MIRROR

main67002-90800iBJ4#,FJ4#,HJ45¥68,400198005-198007

STEEL DOOR

sub67002-90802¥68,200

67100DOOR ASSY, FRONT RH

main67100-60010iFJ40,42,43..TP¥105,000196903-197109

sub67100-90300

main67100-90300iFJ40,42,43..TP197109-197309

main67100-90308iBJ4#,FJ40,43..TP197309-197608

main67100-90321iBJ4#,FJ40,43..TP¥86,000197608-198007

67200DOOR ASSY, FRONT, LH

main67200-60010iFJ40,42,43..TP¥92,700196903-197109

sub67200-90300

main67200-90300iFJ40,42,43..TP197109-197309

main67200-90308iBJ4#,FJ40,43..TP197309-197608

main67200-90321iBJ4#,FJ40,43..TP¥75,900197608-198007

67213PLATE, FRONT DOOR CANVAS SET

main67211-60020iBJ4#,FJ40,42,43..TP196903-198007

RH.

main67212-60020iBJ4#,FJ40,42,43..TP196903-198007

LH.

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67047-90300iFJ40,45,HJ45¥2,210197407-197501

AUSTRALIA SPEC.

main67047-90300iBJ40,FJ40,45,HJ45..PIC,V¥2,210197501-198007

FOR STEEL DOOR

main67494-60010iBJ4#,FJ40,42,43..TP¥2,080196903-198007

FOR CANVAS DOOR

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67047-90300iBJ40,FJ40,45,HJ45..PIC,V¥2,210197501-198007

FOR STEEL DOOR

main67047-90300iFJ40,45,HJ45¥2,210197407-197501

AUSTRALIA SPEC.

main67494-60010iBJ4#,FJ40,43..TP..GEN¥2,080196903-198007

FOR CANVAS DOOR

67491CHANNEL, CANVAS DOOR WEATHERSTRIP UPPER HOLD

main67491-60010iBJ4#,FJ40,43..TP..GEN¥650196903-198007

FOR CANVAS DOOR

67492CHANNEL, CANVAS DOOR WEATHERSTRIP FRONT HOLD, RH

main67492-60010iBJ4#,FJ40,42,43..TP¥2,100196903-198007

FOR CANVAS DOOR

67493CHANNEL, CANVAS DOOR WEATHERSTRIP FRONT HOLD, LH

main67493-60010iBJ4#,FJ40,42,43..TP¥1,540196903-198007

FOR CANVAS DOOR

67496CHANNEL, CANVAS DOOR WEATHERSTRIP UNDER HOLD

main67496-60010iBJ4#,FJ40,42,43..TP¥1,540196903-198007

FOR CANVAS DOOR

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-90300iBJ4#,FJ4#,HJ45¥12,000197805-198007

FOR STEEL DOOR

main67861-90351iFJ55¥6,100196903-197705

main67861-90357iFJ55197705-197807

main67861-90358iFJ55¥16,200197807-198005

sub67861-90359

main67861-90359iFJ55198005-198007

main68108-60020iFJ40,43,45,HJ45¥16,900196903-197207

FOR STEEL DOOR

main68108-90300iBJ4#,FJ4#,HJ45¥16,900197207-197509

FOR STEEL DOOR

main68108-90301iBJ40,FJ40,45,HJ45..PIC,V¥16,900197501-197805

FOR STEEL DOOR

sub67861-90300¥12,000

main68108-90301iFJ40,45,HJ45¥16,900197407-197501

AUSTRALIA SPEC.

sub67861-90300¥12,000

main68161-60020iBJ4#,FJ40,43..TP..GEN¥11,800196903-198007

FOR CANVAS DOOR

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-90300iBJ4#,FJ4#,HJ45¥12,000197805-198007

FOR STEEL DOOR

main67862-90351iFJ55¥6,100196903-197705

main67862-90357iFJ55¥11,700197705-197807

main67862-90358iFJ55¥16,200197807-198005

sub67862-90359

main67862-90359iFJ55198005-198007

main68109-60020iFJ40,43,45,HJ45¥17,100196903-197207

FOR STEEL DOOR

main68109-90300iBJ4#,FJ40,43..TP¥16,900197207-197509

FOR STEEL DOOR

main68109-90301iFJ40,45,HJ45¥16,900197407-197501

AUSTRALIA SPEC.

sub67862-90300¥12,000

main68109-90301iBJ4#,FJ4#,HJ45¥16,900197501-197805

FOR STEEL DOOR

sub67862-90300¥12,000

main68161-60020iBJ4#,FJ40,43..TP..GEN¥11,800196903-198007

FOR CANVAS DOOR

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-60012iBJ4#,FJ40,43,45,HJ45¥3,480196903-197509

FOR STEEL DOOR

sub68111-90333¥3,550

main68111-60020iFJ40,42,43..TP¥4,290196903-197307

FOR CANVAS DOOR

sub68111-90300¥4,320

main68111-90300iBJ4#,FJ40,43..TP..GEN¥4,320197307-198007

FOR CANVAS DOOR

main68111-90302iBJ40,FJ40,45,HJ45..PIC,V¥8,700197501-198007

TP.T=5.0,FOR STEEL DOOR

sub68111-90304¥10,700

main68111-90302iFJ40,45,HJ45¥8,700197407-197501

AUSTRALIA SPEC.,TP.T=5.0

sub68111-90304¥10,700

main68111-90303iBJ4#,FJ4#,HJ45¥6,600197501-198007

TP.T=5.0,FOR W/VENT.WINDOW

sub68111-90305¥8,000

main68111-90304iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN¥10,700197608-198007

TN.T.T=5.0,FOR STEEL DOOR

main68111-90305iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN¥8,000197608-198007

TN.TP.T=5.0,FOR W/VENT.WINDOW

main68111-90351iFJ55¥4,890196903-197309

main68111-90352iFJ55¥0197309-197705

TP.T=5.0

sub68111-90353¥11,600

main68111-90353iFJ55¥11,600197309-197705

TN.TP.T=5.0

main68111-90354iFJ55¥9,300197705-197901

TP.T=5.0

sub68111-90357¥10,000

main68111-90355iFJ55¥13,200197705-197901

TN.TP.T=5.0

sub68111-90353¥11,600

main68111-90356iFJ55¥7,800197901-198007

TP.T=4.0

sub68111-90353¥11,600

main68111-90357iFJ55..EUR,GEN¥10,000197901-198007

TN.TP.T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68111-60012iBJ4#,FJ40,43..TP¥3,480196903-197509

FOR STEEL DOOR

sub68111-90333¥3,550

main68111-60020iFJ40,42,43..TP¥4,290196903-197307

FOR CANVAS DOOR

sub68111-90300¥4,320

main68111-90300iBJ4#,FJ40,43..TP¥4,320197307-198007

FOR CANVAS DOOR

main68111-90302iFJ40,45,HJ45¥8,700197407-197501

AUSTRALIA SPEC.,TP.T=5.0

sub68111-90304¥10,700

main68111-90302iBJ4#,FJ4#,HJ45¥8,700197501-198007

TP.T=5.0,FOR STEEL DOOR

sub68111-90304¥10,700

main68111-90303iBJ4#,FJ4#,HJ45¥6,600197501-198007

TP.T=5.0,FOR W/VENT.WINDOW

sub68111-90305¥8,000

main68111-90304iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN¥10,700197608-198007

TN.T.T=5.0,FOR STEEL DOOR

main68111-90305iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN¥8,000197608-198007

TN.TP.T=5.0,FOR W/VENT.WINDOW

main68111-90351iFJ55¥4,890196903-197309

main68111-90352iFJ55¥0197309-197705

TP.T=5.0

sub68111-90353¥11,600

main68111-90353iFJ55¥11,600197309-197705

TN.TP.T=5.0

main68111-90354iFJ55¥9,300197705-197901

TP.T=5.0

sub68111-90357¥10,000

main68111-90355iFJ55¥13,200197705-197901

TN.TP.T=5.0

sub68111-90353¥11,600

main68111-90356iFJ55¥7,800197901-198007

TP.T=4.0

sub68111-90353¥11,600

main68111-90357iFJ55..EUR,GEN¥10,000197901-198007

TN.TP.T=4.0

68141RUN, FRONT DOOR GLASS

main68105-90300iBJ4#,FJ4#,HJ45¥3,380197407-197909

FOR L/VENTILATING WINDOW

main68105-90300iBJ40,FJ40,45,HJ45..PIC,V¥3,380197501-197509

FOR STEEL DOOR,UPPER

main68105-90301iBJ40,FJ40,45,HJ45..PIC,V¥2,620197501-197909

FOR W/VENTILATING WINDOW

main68105-90302iBJ4#,FJ4#,HJ45¥3,540197909-198007

FOR L/VENTILATING WINDOW

main68105-90303iBJ4#,FJ4#,HJ45¥3,410197909-198007

FOR W/VENTILATING WINDOW

main68141-90351iFJ55196903-197309

main68141-90352iFJ55¥4,370197309-197705

main68141-90353iFJ55197705-197901

main68141-90354iFJ55197901-198007

main68212-90300iBJ4#,FJ40,43..TP¥4,360197501-197509

FOR STEEL DOOR UPPER,L=487

sub68213-90300¥4,360

main68212-90300iBJ4#,FJ40,43,45,HJ45¥4,360196903-197501

FOR STEEL DOOR,UPPER,L=487

sub68213-90300¥4,360

main68213-60010iFJ40,43,45¥4,360196903-197103

FOR STEEL DOOR,SIDE,L=908

sub68213-90300¥4,360

main68213-90300iBJ4#,FJ40,43..TP¥4,360197501-197509

FOR STEEL DOOR LOWER,L=908

main68213-90300iBJ4#,FJ40,43,45,HJ45¥4,360197103-197501

FOR STEEL DOOR,SIDE,L=908

main69921-60010iBJ4#,FJ40,42,43..TP¥3,600196903-198007

FOR CANVAS DOOR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68130-90352iFJ55¥2,020197309-198007

RH.

main68160-90300iBJ40,FJ40,45,HJ45..PIC,V¥1,780197501-198007

FOR STEEL DOOR

main68160-90300iFJ40,45,HJ45¥1,780197407-197501

AUSTRALIA SPEC.

main68160-90301iBJ4#,FJ4#,HJ45¥1,270197501-198007

RH.,FOR W/VENTILATING WINDOW

main68170-60010iFJ40,43,45¥2,860196903-196910

FOR STEEL DOOR

sub68170-90300¥2,860

main68170-60020iFJ40,42,43..TP¥2,860196903-196910

FOR CANVAS DOOR

sub68170-90301¥2,860

main68170-90300iBJ4#,FJ40,43,45,HJ45¥2,860196910-197501

FOR STEER DOOR

main68170-90300iBJ4#,FJ40,43..TP¥2,860197501-197509

FOR STEEL DOOR

main68170-90301iBJ4#,FJ40,42,43..TP¥2,860196910-198007

FOR CANVAS DOOR

main68170-90302iBJ40,FJ40,45,HJ45..PIC,V¥1,270197501-198007

LH.,FOR W/VENTILATING WINDOW

main68170-90351iFJ55196903-197309

main68170-90352iFJ55¥1,890197309-198007

LH.

68212PLATE, CANVAS DOOR WINDOW HOLDER

main68212-60020iBJ4#,FJ40,42,43..TP¥650196903-198007

FOR CANVAS DOOR

9321914012

main93219-14012¥100

9321915008

main93219-15008

9321915010

main93219-15010¥160

9321915016

main93219-15016¥140

9321915020

main93219-15020¥80

9352013010

main93520-13010¥170

9411540400

main94115-40400¥240

9411540500

main94115-40500¥110

9451200500

main94512-00500¥140

9461210400

main94612-10400¥170

29 parts on this diagram · 5 diagrams in section
