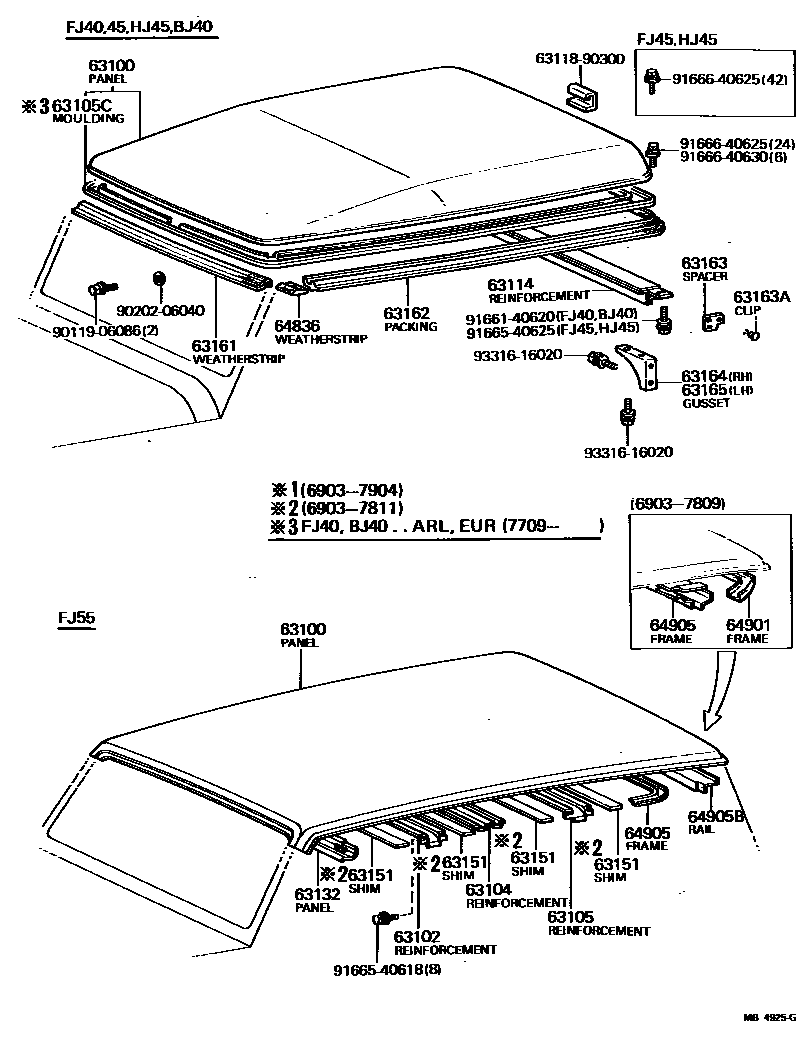

ROOF PANEL & BACK PANEL

0001 1 0003 1

63100PANEL ASSY, ROOF

main63100-60011iFJ40..VLS196903-197002

main63100-60012iFJ40..V197002-197309

main63100-90301iBJ40,FJ40..V197309-197501

main63100-90302iFJ45,HJ45197309-197501

main63100-90303iBJ40,FJ40..V..GEN197501-198007

sub63100-90311

main63100-90304iFJ45,HJ45197501-197505

main63100-90305iBJ40,FJ40..V..(ARL,EUR)197505-197709

sub63100-90311

main63100-90307iFJ45,HJ45..PIC197505-197709

sub63100-90313

main63100-90311iBJ40,FJ40..V..(ARL,EUR)197709-198007

main63100-90311iBJ40,FJ40..RHD..4F..VKC..GEN197909-198007

NEW ZEALAND SPEC.

main63100-90313iFJ45,HJ45..PIC197709-197901

main63100-90316iFJ45,HJ45..PIC197901-198007

main63100-90317iFJ45,HJ45..VKC..GEN197904-198007

sub63100-90318

main63100-90318iFJ45,HJ45..VKC..GEN197906-198007

E.L.R.

main63100-90318iHJ45..VKC..EUR;FJ45..VKC..(ARL,EUR)197904-198007

main63100-90332iFJ45,HJ45196903-197309

main63111-90351iFJ55196903-197705

main63111-90352iFJ55197705-198007

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63103-90351iFJ55196903-197705

main63103-90352iFJ55197705-198007

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63105-90351iFJ55196903-197705

main63105-90352iFJ55197705-198007

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-90351iFJ55196903-197705

main63104-90352iFJ55197705-198007

63105CMOULDING SUB-ASSY, ROOF DRIP

main63105-90302iBJ40,FJ40..V..(ARL,EUR)197709-198007

main63105-90302iBJ40,FJ40..RHD..4F..VKC..GEN197909-198007

NEW ZEALAND SPEC.

63114REINFORCEMENT, ROOF PANEL, REAR

main63106-60011iFJ40..VLS196903-197207

sub63106-90302

main63106-60021iFJ40..VKC197204-197207

main63106-90302iBJ40,FJ40..VLS197207-198007

main63106-90303iBJ40,FJ40,45,HJ45..VKC197207-198007

63132PANEL, WINDSHIELD HEADER, INNER

main61109-90352iFJ55197709-198007

main61147-90904iFJ55196903-197709

sub61109-90351

63151SHIM, ROOF REINFORCEMENT

main63113-90351iFJ55196903-197709

70X1200

sub63113-90352

main63113-90352iFJ55197507-197709

70X580

main63113-90352iFJ55197709-197811

63161WEATHERSTRIP, ROOF

main63161-60011iBJ40,FJ40,45,HJ45..PIC,V196903-198007

63162PACKING, ROOF DRIP MOULDING

main63168-60010iFJ40..VLS196903-197002

main63168-60011iBJ40,FJ40..V197002-197905

sub63168-90306

main63168-90304iFJ45,HJ45..VKC..GEN197904-197905

main63168-90305iHJ45..VKC..EUR;FJ45..VKC..(ARL,EUR)197904-197905

main63168-90306iBJ40,FJ40..V..GEN197905-198007

sub63168-90307

main63168-90307iBJ40,FJ40..V..(ARL,EUR)197905-198007

main63168-90307iBJ40,FJ40..RHD..4F..VKC..GEN197909-198007

NEW ZEALAND SPEC.

main63168-90308iFJ45,HJ45..VKC..GEN197905-198007

sub63168-90309

main63168-90309iHJ45..VKC..EUR;FJ45..VKC..(ARL,EUR)197905-198007

main63168-90309iFJ45,HJ45..VKC..GEN197906-198007

E.L.R.

main63301-90332iFJ45,HJ45196910-197407

sub63313-90300

main63313-90300iFJ45,HJ45197407-197505

sub63313-90302

main63313-90302iFJ45,HJ45..PIC197505-197905

sub63313-90303

main63313-90303iFJ45,HJ45..PIC197905-198007

main63313-90332iFJ45196903-196910

sub63301-90332

63163SPACER, ROOF DRIP MOULDING STRENGTH

main63167-60010iFJ40..VLS196903-197106

sub63167-90300

main63167-90300iFJ40..VLS197106-197203

sub63167-90302

sub63168-90302

main63167-90302iBJ40,FJ40,45,HJ45..V197204-198007

RH.

main63168-90302iBJ40,FJ40,45,HJ45..V197204-198007

LH.

63163ACLIP, SPRING(FOR ROOF DRIP MOULDING STRENGTH SPACER SET)

main90053-60501iFJ40..V196903-197303

sub90053-60511

main90467-04100iBJ40,FJ40,45,HJ45..V197309-198007

main90467-06004iFJ40..V197303-197309

63164GUSSET, ROOF DRIP MOULDING, RH

main63165-60010iBJ40,FJ40,45,HJ45..V196903-198007

63165GUSSET, ROOF DRIP MOULDING, LH

main63166-60010iBJ40,FJ40,45,HJ45..V196903-198007

64836WEATHERSTRIP, ROOF, FRONT

main64836-90332iBJ40,FJ40,45,HJ45..PIC,V196903-197904

64901FRAME SUB-ASSY, BACK

main61247-90351iFJ55196903-197809

64905FRAME SUB-ASSY, BACK UPPER

main61501-90351iFJ55..VTG196903-198007

main61501-90354iFJ55..VKC196903-197809

sub61501-90355

sub65528-90355

main61501-90355iFJ55..VKC197809-198007

64905BRAIL SUB-ASSY, REAR UPPER PILLAR

main61014-90351iFJ55..VTG197809-198007

6311890300SUPPORT, ROOF PANEL, RH

main63118-90300

9011906086

main90119-06086

9020206040

main90202-06040

9166140620

main91661-40620

9166540618

main91665-40618

9166540625

main91665-40625

9166640625

main91666-40625

9166640630

main91666-40630

9331616020

main93316-16020

27 parts on this diagram · 2 diagrams in section
