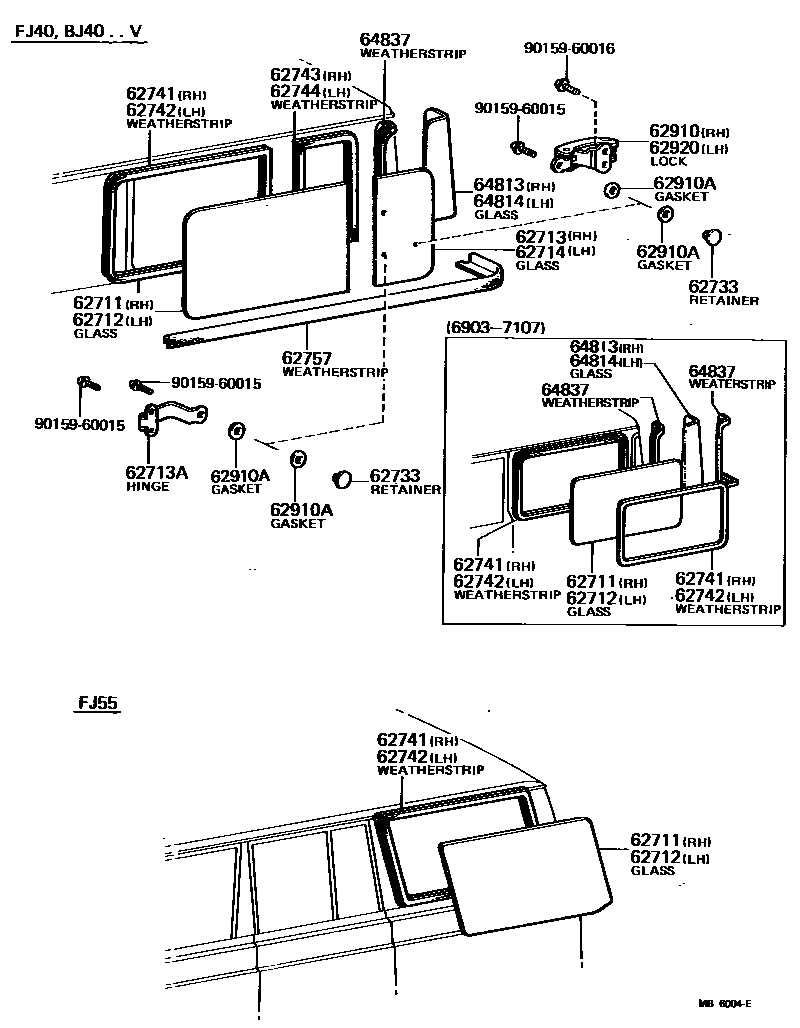

SIDE WINDOW

0001 1 0003 1 0004 1

62711GLASS, QUARTER WINDOW, RH

main61635-90351iFJ55196903-197709

TP.T=5.0

sub61635-90354

main61635-90352iFJ55197309-197709

TN.TP.T=5.0

sub61635-90354

main61635-90353iFJ55197709-198007

TP.T=4.0

sub61635-90354

main61635-90354iFJ55197709-198007

TN.TP.T=4.0

main62711-60012iFJ40..VLS196903-197107

main62711-90300iBJ40,FJ40..V197107-197608

main62711-90303iBJ40,FJ40..V197608-198007

TP.T=4.0

sub62711-90304

main62711-90304iFJ45,HJ45..VKC..(EUR,GEN)197608-198007

TN.TP.T=4.0

62712GLASS, QUARTER WINDOW, LH

main61635-90351iFJ55196903-197709

TP.T=5.0

sub61635-90354

main61635-90352iFJ55197309-197709

TN.TP.T=5.0

sub61635-90354

main61635-90353iFJ55197709-198007

TP.T=4.0

sub61635-90354

main61635-90354iFJ55..EUR,GEN197709-198007

TN.TP.T=4.0

main62711-60012iFJ40..VLS196903-197107

main62711-90300iBJ40,FJ40..V197107-197608

main62711-90303iBJ40,FJ40..V197608-198007

TP.T=4.0

sub62711-90304

main62711-90304iBJ40,FJ40..V..(EUR,GEN)197608-198007

TN.TP.T=4.0

62713GLASS, QUARTER WINDOW, REAR RH

main62714-90300iBJ40,FJ40..V197608-198007

TP.T=4.0

sub62714-90301

main62714-90301iBJ40,FJ40..V..(EUR,GEN)197608-198007

TN.TP.T=4.0

62713AHINGE ASSY, QUARTER WINDOW, REAR

main62704-90300iBJ40,FJ40..V197608-198007

62714GLASS, QUARTER WINDOW, REAR LH

main62714-90300iBJ40,FJ40..V197608-198007

TP.T=4.0

sub62714-90301

main62714-90301iBJ40,FJ40..V..(EUR,GEN)197608-198007

TN.TP.T=4.0

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-90300iBJ40,FJ40..V197608-198007

62741WEATHERSTRIP, QUARTER WINDOW, RH

main61636-90351iFJ55196903-197709

main61636-90353iFJ55196903-197709

W/MOULDING

main61636-90358iFJ55197709-198007

main61636-90359iFJ55..EUR,GEN197709-198007

W/MOULDING

main62741-90300iBJ40,FJ40..V197107-197608

main62741-90301iFJ40..VLS196903-197107

OUTER

main62741-90303iBJ40,FJ40..V197608-198007

main62743-60020iFJ40..VLS196903-197107

INNER

sub56122-60011

62742WEATHERSTRIP, QUARTER WINDOW, LH

main61637-90351iFJ55196903-197709

main61637-90353iFJ55196903-197709

W/MOULDING

main61637-90357iFJ55197709-198007

main61637-90358iFJ55..EUR,GEN197709-198007

W/MOULDING

main62741-90300iBJ40,FJ40..V197107-197608

main62741-90301iFJ40..VLS196903-197107

OUTER

main62741-90303iFJ45,HJ45..VKC197608-198007

main62743-60020iFJ40..VLS196903-197107

INNER

sub56122-60011

62743WEATHERSTRIP, QUARTER WINDOW, REAR RH

main62744-90300iBJ40,FJ40..V197608-198007

sub62797-90800

62744WEATHERSTRIP, QUARTER WINDOW, REAR LH

main62744-90300iBJ40,FJ40..V197608-198007

sub62797-90800

62757WEATHERSTRIP, UPPER SIDE PANEL

main61687-90300iBJ40,FJ40..VLS197207-197904

RH.

sub61687-90303

main61687-90301iBJ40,FJ40..VKC197207-197904

RH.

sub61687-90304

main61687-90303iBJ40,FJ40..VLS197904-197911

RH.

sub61687-90306

main61687-90304iBJ40,FJ40..VKC197904-197911

RH.

sub61687-90307

main61687-90305iFJ45,HJ45..VKC197904-197911

RH.

sub61687-90308

main61687-90306iBJ40,FJ40..VLS197911-198007

RH.

main61687-90307iBJ40,FJ40..VKC197911-198007

RH.

sub61687-90308

main61687-90308iFJ45,HJ45..VKC197911-198007

RH.

main61688-90300iBJ40,FJ40..VLS197207-197904

LH.

sub61688-90303

main61688-90301iBJ40,FJ40..VKC197207-197904

LH.

sub61688-90304

main61688-90303iBJ40,FJ40..VLS197904-197911

LH.

sub61688-90306

main61688-90304iBJ40,FJ40..VKC197904-197911

LH.

sub61688-90307

main61688-90305iFJ45,HJ45..VKC197904-197911

LH.

sub61688-90308

main61688-90306iBJ40,FJ40..VLS197911-198007

LH.

main61688-90307iBJ40,FJ40..VKC197911-198007

LH.

sub61688-90308

main61688-90308iFJ45,HJ45..VKC197911-198007

LH.

main62747-60010iFJ40..VLS196903-197207

RH.

main62747-60020iFJ40..VKC197204-197207

RH.

sub61687-90301

main62748-60010iFJ40..VLS196903-197207

LH.

main62748-60020iFJ40..VKC197204-197207

LH.

sub61688-90301

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-90300iBJ40,FJ40..V197608-198007

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main62734-12010iBJ40,FJ40..V197608-198007

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-90300iBJ40,FJ40..V197608-198007

64813GLASS, BACK WINDOW CORNER, RH

main62712-60010iFJ40..VLS196903-197107

main62712-90300iBJ40,FJ40,45,HJ45..V197107-198007

TP.T=5.0

sub62712-90301

main62712-90301iBJ40,FJ40,45,HJ45..V..(EUR,GEN)197608-198007

TN.TP.T=5.0

64814GLASS, BACK WINDOW CORNER, LH

main62713-60010iFJ40..VLS196903-197107

main62713-90300iBJ40,FJ40,45,HJ45..V197107-198007

TP.T=5.0

sub62713-90301

main62713-90301iBJ40,FJ40,45,HJ45..V..(EUR,GEN)197608-198007

TN.TP.T=5.0

64837WEATHERSTRIP, BACK WINDOW CORNER

main62742-60020iFJ40..VLS196903-197107

OUTER

main62742-90300iBJ40,FJ40,45,HJ45..V197107-198007

main62744-60020iFJ40..VLS196903-197107

INNER

sub62743-60020

9015960015

main90159-60015

9015960016

main90159-60016

19 parts on this diagram · 3 diagrams in section
