EPC Data

SIDE MEMBER

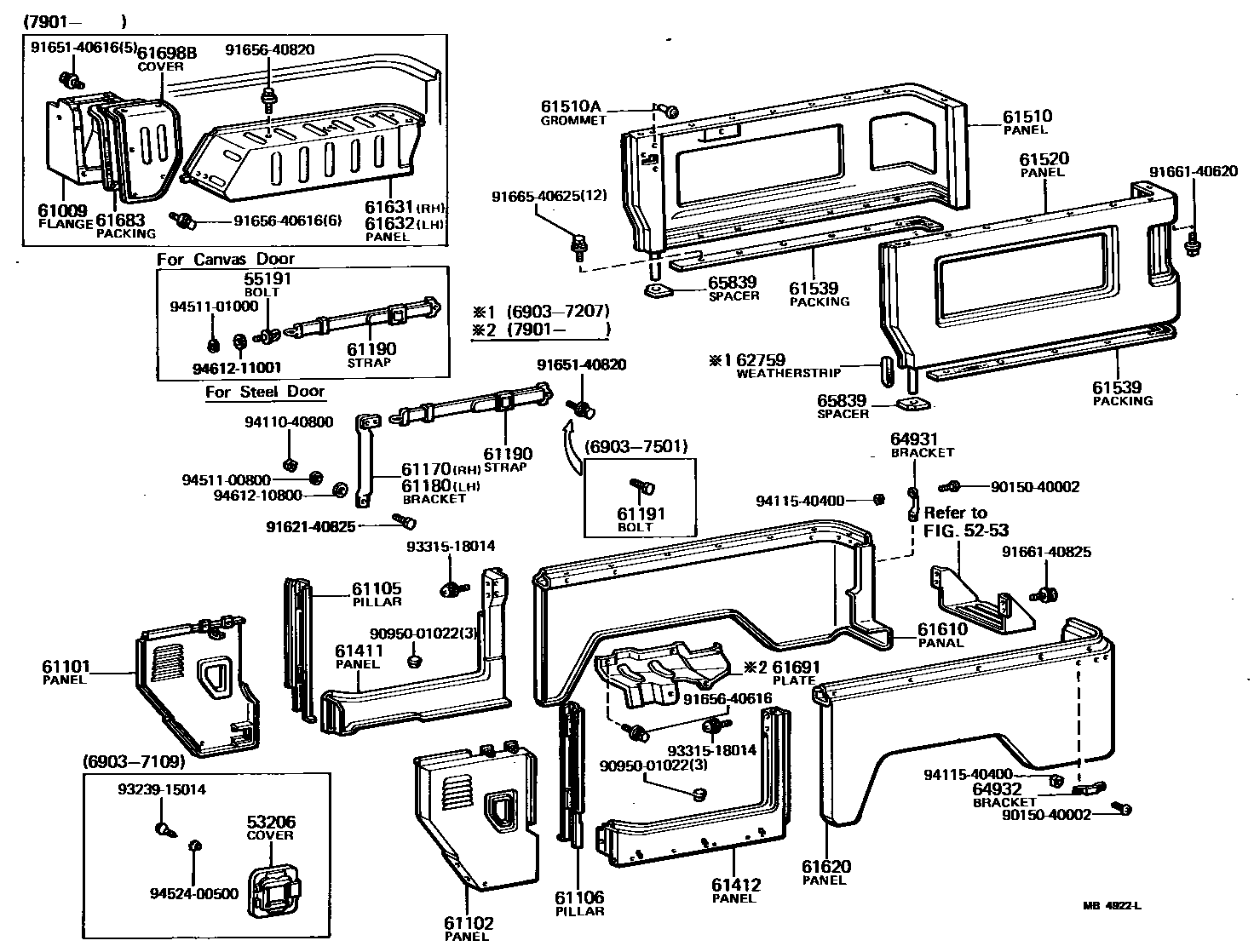

Parts diagram
5253
53206COVER SUB-ASSY, COWL SIDE AIR GUIDE
main53206-60010i196903-197109
main53206-60020i196903-197109
55191BOLT, SAFETY STRAP RING
main55191-60010×2i196903-197901
main55191-90300×2i197901-198007
61009FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET
main61009-90300i197901-198007
61101PANEL SUB-ASSY, COWL SIDE, RH
main55007-90300i197706-197901
FOR L/HEATER
main55007-90301i197901-198007
sub55007-90800
main55706-90300i197109-197706
FOR L/HEATER
main55706-90301i197109-197901
FOR W/HEATER
main55706-90305i197901-198007
FOR W/HEATER
sub55706-90162
main55706-90308i197901-198007
FOR L/HEATER
sub55706-90162
main55706-90309i197911-198007
FOR L/HEATER & W/RADIO
main55706-90310i197911-198007
FOR W/HEATER & W/RADIO
main61101-90351i196903-197209
main61101-90352i196903-197209
main61101-90353i196910-197209
FOR W/COOLER
main61101-90354i197209-198007
main61101-90355i197209-198007
main61101-90358i197209-197309
FOR W/COOLER
61102PANEL SUB-ASSY, COWL SIDE, LH
main55707-90300i197109-197901
FOR L/HEATER
main55707-90301i197109-197901
FOR W/HEATER
main55707-90304i197311-197901
FOR W/HEATER & TANDEM M/C
main55707-90311i197901-198007
FOR L/HEATER
sub55707-90817
main55707-90313i197901-198007
FOR W/HEATER
sub55707-90816
main55707-90314i197901-198007
FOR W/HEATER
sub55707-90816
main55707-90317i197901-198007
FOR L/HEATER
sub55707-90817
main55707-90320i197911-198007
FOR W/HEATER & W/RADIO
sub55707-90807
main55707-90321i197911-198007
FOR W/HEATER & W/RADIO
main55707-90322i197911-198007
FOR L/HEATER & W/RADIO
main55707-90323i197911-198007
L/HEATER & W/RADIO
main61102-90351i196903-197209
main61102-90352i196903-197209
main61102-90353i196910-197209
FOR W/COOLER
main61102-90354i197209-198007
main61102-90355i197209-198007
main61102-90358i197209-197309
FOR W/COOLER
61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
main61106-90300i197109-197501
main61106-90305i197501-197509
FOR STEEL DOOR
main61106-90306i197501-197509
FOR STEEL DOOR
main61106-90307i197901-198007
FOR CANVAS DOOR
main61106-90308i197901-198007
FOR CANVAS DOOR
main61106-90309i197901-198007
FOR STEEL DOOR
main61106-90310i197901-198007
FOR STEEL DOOR
main61106-90311i197901-198007
FOR STEEL DOOR,W/COOLER
main61106-90319i197901-198007
FOR CANVAS DOOR,W/COOLER
61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
main61107-90300i197109-197310
main61107-90302i197310-197501
main61107-90312i197501-197509
FOR STEEL DOOR
main61107-90313i197501-197509
FOR STEEL DOOR
main61107-90314i197901-198007
FOR CANVAS DOOR
main61107-90315i197901-198007
FOR CANVAS DOOR
main61107-90316i197901-198007
FOR STEEL DOOR
main61107-90317i197901-198007
FOR STEEL DOOR
main61107-90318i197901-197909
FOR W/COOLER
61170BRACKET ASSY, SAFETY STRAP, RH
main61018-60010i196903-197607
FOR STEEL DOOR
main61193-90300i197607-198007
FOR STEEL DOOR
61180BRACKET ASSY, SAFETY STRAP, LH
main61019-60010i196903-197607
FOR STEEL DOOR
main61193-90300i197607-198007
FOR STEEL DOOR
61190STRAP ASSY, SAFETY
main61190-60011×2i196903-197501
main61190-90300×2i197501-198007
61191BOLT, SAFETY STRAP RING
main61191-60010×2i196903-197501
FOR STEEL DOOR
61411PANEL, ROCKER, OUTER RH
main61310-60010i196903-197012
main61310-90300i197012-197209
main61310-90302i197209-197501
main61310-90303i197509-197806
main61310-90305i197806-197901
main61310-90306i197901-198007
main61310-90307i197901-198007
main61310-90309i197901-198007
main61310-90310i197907-198007
main61310-90311i197901-198007
main61310-90312i197907-198007
main61411-90351i196903-197705
main61411-90352i197705-198007
61412PANEL, ROCKER, OUTER LH
main61320-60010i196903-197012
main61320-90300i197012-197501
main61320-90301i197501-197509
main61320-90302i197407-197501
AUSTRALIA SPEC.
main61320-90303i197501-197509
main61320-90304i197806-197901
main61320-90305i197901-198007
SWITZERLAND SPEC.
main61320-90306i197901-198007
main61320-90307i197901-198007
main61320-90308i197901-198007
main61320-90309i197901-198007
main61412-90351i196903-197705
main61412-90352i197705-198007
61510PANEL ASSY, REAR UPPER SIDE, RH
main61501-60011i196903-197309
sub61549-90800
main61501-60020i197204-197309
sub61549-90800
main61501-90303i197510-197608
main61501-90304i197309-197608
main61501-90305i197510-197608
main61501-90306i197505-197608
main61501-90309i197510-197608
sub61549-90800
main61501-90310i197608-198007
main61501-90311i197901-198007
FOR 3POINT FRONT SEAT BELT
main61501-90312i197901-198007
main61501-90313i197901-198007
FOR 3POINT FRONT SEAT BELT
main61501-90314i197608-198007
sub61549-90800
main61501-90315i197901-198007
sub61549-90800
main61501-90316i197901-198007
FOR 3POINT FRONT SEAT BELT
sub61549-90800
main61501-90317i197901-198007
FOR 3POINT FRONT SEAT BELT
sub61549-90800
main61501-90319i197904-198007
SIDE WINDOW SLIDE TYPE
main61501-90320i197906-198007
E.L.R.,SIDE WINDOW SLID TYPE
main61501-90321i197904-198007
main61501-90322i197904-197906
E.L.R.
main61501-90323i197904-198007
SIDE WINDOW SLIDE TYPE
sub61549-90800
main61501-90324i197909-198007
E.L.R.,SIDE WINDOW SLIDE TYPE
sub61549-90800
main61501-90325i197904-198007
sub61549-90800
main61501-90326i197904-197909
E.L.R.
sub61549-90800
61510AGROMMET, SAFETY BELT ANCHORAGE NUT
main58276-90300×2i196903-198007
61520PANEL ASSY, REAR UPPER SIDE,LH
main61502-60011i196903-197309
main61502-60020i197204-197309
sub61502-90309
main61502-90303i197309-197608
sub61549-90800
main61502-90304i197510-197608
main61502-90305i197309-197608
sub61549-90800
main61502-90306i197309-197608
sub61502-90309
main61502-90307i197505-197608
sub61549-90800
main61502-90308i197505-197608
sub61502-90309
sub61549-90800
main61502-90310i197510-197608
main61502-90311i197901-198007
sub61549-90800
main61502-90312i197901-198007
FOR 3POINT FRONT SEAT BELT
sub61549-90800
main61502-90313i197608-197901
sub61549-90800
main61502-90314i197901-198007
FOR 3POINT FRONT SEAT BELT
sub61549-90800
main61502-90315i197608-198007
main61502-90316i197901-198007
main61502-90317i197901-198007
FOR 3POINT FRONT SEAT BELT
main61502-90318i197608-197901
main61502-90320i197904-198007
SIDE WINDOW SLIDE TYPE
sub61549-90800
main61502-90321i197904-197906
E.L.R.,SIDE WINDOW SLIDE TYPE
sub61549-90800
main61502-90322i197904-198007
sub61549-90800
main61502-90323i197906-198007
E.L.R.
sub61549-90800
main61502-90324i197904-198007
SIDE WINDOW SLIDE TYPE
main61502-90325i197904-197909
E.L.R.,SIDE WINDOW SLIDE TYPE
main61502-90326i197904-198007
main61502-90327i197909-198007
E.L.R.
61539PACKING, REAR UPPER SIDE PANEL SET
main61534-60011×2i196903-198007
main61534-90300×2i197904-198007
61610PANEL ASSY, REAR BODY SIDE, RH
main61601-60012i196903-196910
sub61601-90421
main61601-60014i196910-197209
sub61601-90421
main61601-60022i196903-196910
sub61601-90422
main61601-60024i196910-197209
sub61601-90422
main61601-60031i196903-196910
sub61601-90430
main61601-60033i196910-197209
sub61601-90430
main61601-60051i196903-196910
sub61601-90431
main61601-60053i196910-197209
sub61601-90431
main61601-60101i197204-197209
sub61601-90423
main61601-90070i197209-197309
sub61601-90433
main61601-90071i197209-197309
sub61601-90425
main61601-90072i197209-197309
sub61601-90433
main61601-90075i197209-197309
sub61601-90448
main61601-90076i197209-197309
sub61601-90449
main61601-90077i197209-197309
sub61601-90443
main61601-90078i197209-197309
sub61601-90449
main61601-90270i197509-197901
sub61601-90427
main61601-90272i197309-197501
sub61601-90432
main61601-90276i197509-197512
sub61601-90428
main61601-90277i197309-197501
sub61601-90433
main61601-90278i197309-197501
main61601-90279i197309-197501
main61601-90281i197309-197501
sub61601-90429
main61601-90284i197309-197501
sub61601-90444
main61601-90286i197501-197509
sub61601-90448
main61601-90287i197509-197709
sub61601-90445
main61601-90289i197309-197408
sub61601-90449
main61601-90302i196903-196910
sub61601-90422
main61601-90303i196903-196910
sub61601-90440
main61601-90304i196903-196910
sub61601-90441
main61601-90305i196903-196910
sub61601-90441
main61601-90315i196903-196910
sub61601-90431
main61601-90319i196903-196910
sub61601-90446
main61601-90321i196903-196910
sub61601-90447
main61601-90323i196903-196910
sub61601-90447
main61601-90328i196910-197209
sub61601-90422
main61601-90329i196910-197209
sub61601-90431
main61601-90330i196910-197209
sub61601-90440
main61601-90331i196910-197209
sub61601-90446
main61601-90332i196910-197209
sub61601-90441
main61601-90333i196910-197209
sub61601-90447
main61601-90334i196910-197209
sub61601-90441
main61601-90335i196910-197209
sub61601-90447
main61601-90342i197209-197309
sub61601-90424
main61601-90343i197209-197309
sub61601-90425
main61601-90344i197209-197309
sub61601-90426
main61601-90345i197209-197309
sub61601-90442
main61601-90346i197209-197309
sub61601-90443
main61601-90347i197209-197309
sub61601-90432
main61601-90410i197309-197501
main61601-90411i197309-197501
main61601-90412i197309-197501
FOR W/SAFETY BAR
main61601-90413i197309-197501
FOR W/SAFETY BAR
main61601-90414i197309-197501
FOR W/SAFETY BAR
main61601-90415i197309-197501
FOR W/SAFETY BAR
main61601-90416i197309-197501
FOR W/SAFETY BAR
main61601-90417i197309-197501
FOR W/SAFETY BAR
main61601-90418i197309-197501
FOR W/SAFETY BAR
main61601-90470i198005-198007
FOR SAND TIRE
main61601-90471i198005-198007
FOR LICENSE PLATE POSITION
main61601-90472i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61601-90473i198005-198007
FOR L/REAR SEAT
main61601-90600i197402-197501
main61601-90601i197402-197501
main61601-90602i197402-197501
main61601-90603i197402-197501
main61601-90604i197402-197501
main61601-90605i197402-197501
main61601-90606i197402-197501
main61601-90607i197402-197501
main61601-90608i197402-197501
main61601-90609i197402-197501
main61601-90610i197402-197501
main61601-90613i197402-197501
FOR W/SAFETY BAR
main61601-90614i197402-197501
FOR W/SAFETY BAR
main61601-90615i197402-197408
FOR W/SAFETY BAR
main61601-90616i197402-197408
FOR W/SAFETY BAR
main61601-90617i197402-197501
FOR W/SAFETY BAR
main61601-90618i197402-197501
FOR W/SAFETY BAR
main61601-90624i197402-197501
FOR W/SAFETY BAR
main61601-90625i197402-197501
FOR W/SAFETY BAR
main61601-90626i197402-197501
FOR W/SAFETY BAR
main61601-90627i197402-197501
FOR W/SAFETY BAR
main61601-90628i197402-197501
FOR W/SAFETY BAR
main61601-90629i197402-197501
FOR W/SAFETY BAR
main61601-90633i197512-197901
main61601-90634i197606-197709
main61601-90635i197606-197709
main61601-90637i197512-197608
main61601-90638i197608-197901
FOR SAND TIRE
main61601-90639i197608-197901
FOR SAND TIRE
main61601-90640i197608-197901
FOR SAND TIRE
main61601-90641i197608-197709
FOR SAND TIRE
main61601-90642i197608-197709
FOR SAND TIRE
main61601-90643i197608-197709
FOR SAND TIRE
main61601-90644i197608-197709
FOR SAND TIRE
main61601-90645i197608-197901
FOR SAND TIRE
main61601-90646i197608-197901
main61601-90647i197608-197901
main61601-90648i197608-197709
main61601-90649i197608-197709
main61601-90800i197608-197901
main61601-90802i197709-197901
main61601-90803i197709-197901
main61601-90804i197709-197901
main61601-90805i197709-197901
main61601-90806i197709-197901
FOR SAND TIRE
main61601-90807i197709-197901
FOR SAND TIRE
main61601-90808i197709-197804
main61601-90809i197709-197804
main61601-90810i197709-197804
main61601-90811i197709-197804
main61601-90818i197901-197904
sub61802-90302
main61601-90819i197901-197904
sub61802-90302
main61601-90820i197901-197904
sub61802-90302
main61601-90821i197901-197904
sub61802-90302
main61601-90822i197901-197904
sub61802-90302
main61601-90823i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90824i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90825i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90826i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90827i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90828i197901-197904
sub61802-90302
main61601-90829i197901-197904
sub61802-90302
main61601-90830i197901-197904
sub61802-90302
main61601-90831i197901-197904
FOR SAND TIRE
sub61802-90302
main61601-90832i197901-197904
FOR SAND TIRE
sub61802-90302
main61601-90833i197901-197904
FOR SAND TIRE
sub61802-90302
main61601-90834i197901-197904
FOR SAND TIRE
sub61802-90302
main61601-90835i197901-197904
FOR SAND TIRE
sub61802-90302
main61601-90836i197901-197904
FOR SAND TIRE
sub61802-90302
main61601-90837i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90838i197901-197904
FOR LICENSE PLATE POSITION LH.
sub61802-90302
main61601-90839i197804-197901
main61601-90840i197804-197901
main61601-90841i197804-197901
main61601-90842i197804-197901
main61601-90843i197904-198007
main61601-90844i197904-198007
FOR LICENSE PLATE POSITI0N LH.
main61601-90847i197904-198005
main61601-90848i197904-198005
main61601-90849i197904-198005
main61601-90850i197904-198007
main61601-90851i197904-198005
main61601-90852i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90853i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90854i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90855i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90856i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90857i197904-198007
main61601-90858i197904-198005
main61601-90859i197904-198005
main61601-90860i197904-198005
FOR SAND TIRE
main61601-90861i197904-198005
FOR SAND TIRE
main61601-90862i197904-198007
FOR SAND TIRE
main61601-90863i197904-198007
FOR SAND TIRE
main61601-90864i197904-198005
FOR SAND TIRE
main61601-90865i197904-198005
FOR SAND TIRE
main61601-90866i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90867i197904-198005
FOR LICENSE PLATE POSITION LH.
main61601-90868i197909-198007
FOR L/REAR SEAT
main61601-90869i197909-198005
FOR L/REAR SEAT
main61601-90870i197909-198007
FOR L/REAR SEAT
main61601-90876i198005-198007
main61601-90877i198005-198007
main61601-90878i198005-198007
main61601-90879i198005-198007
main61601-90880i198005-198007
FOR LICENSE PLATE POSITION LH.
main61601-90881i198005-198007
FOR LICENSE PLATE POSITION LH.
main61601-90882i198005-198007
FOR LICENSE PLATE POSITION LH.
main61601-90883i198005-198007
FOR LICENSE PLATE POSITION LH.
main61601-90884i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61601-90885i198005-198007
main61601-90886i198005-198007
main61601-90887i198005-198007
FOR SAND TIRE
main61601-90888i198005-198007
FOR SAND TIRE
main61601-90889i198005-198007
FOR SAND TIRE
61620PANEL ASSY, REAR BODY SIDE, LH
main61602-60011i196903-196910
sub61602-90087
main61602-60013i196910-197309
sub61602-90087
main61602-60021i196903-196910
sub61602-90088
main61602-60023i196910-197309
sub61602-90088
main61602-60032i196903-196910
sub61602-90272
main61602-60034i196910-197309
sub61602-90272
main61602-60052i196903-196910
sub61602-90273
main61602-60054i196910-197309
sub61602-90273
main61602-60081i197204-197309
sub61602-90089
main61602-90070i197309-197501
main61602-90072i197309-197608
sub61602-90089
main61602-90074i197309-197509
sub61602-90274
main61602-90075i197309-197509
sub61602-90276
main61602-90076i197309-197408
sub61602-90275
main61602-90077i197501-197509
sub61602-90277
main61602-90078i197309-197501
main61602-90079i197309-197501
main61602-90080i197309-197501
FOR W/SAFETY BAR
main61602-90081i197309-197501
FOR W/SAFETY BAR
main61602-90082i197309-197501
FOR W/SAFETY BAR
main61602-90083i197309-197501
FOR W/SAFETY BAR
main61602-90084i197309-197501
FOR W/SAFETY BAR
main61602-90085i197309-197501
FOR W/SAFETY BAR
main61602-90086i197309-197501
FOR W/SAFETY BAR
main61602-90284i197402-197608
W/E.D.I.C.
main61602-90285i197512-197901
main61602-90286i197402-197501
W/E.D.I.C.
main61602-90287i197501-197509
W/E.D.I.C.
main61602-90288i197402-197501
W/E.D.I.C.
main61602-90289i197402-197501
W/E.D.I.C.
main61602-90304i196903-196910
main61602-90305i196903-196910
sub61602-90278
main61602-90306i196903-196910
sub61602-90279
main61602-90307i196903-196910
sub61602-90279
main61602-90316i196903-196910
sub61602-90088
main61602-90318i196903-196910
sub61602-90274
main61602-90320i196903-196910
sub61602-90275
main61602-90322i196903-196910
sub61602-90275
main61602-90328i196910-197309
sub61602-90088
main61602-90329i196910-197309
sub61602-90273
main61602-90330i196910-197309
sub61602-90274
main61602-90331i196910-197309
sub61602-90278
main61602-90332i196910-197309
sub61602-90275
main61602-90333i196910-197309
sub61602-90279
main61602-90334i196910-197309
sub61602-90275
main61602-90335i196910-197309
sub61602-90279
main61602-90343i197309-197509
sub61602-90087
main61602-90344i197309-197509
main61602-90346i197309-197501
sub61602-90088
main61602-90347i197501-197509
sub61602-90271
main61602-90349i197309-197501
main61602-90410i197509-197512
W/E.D.I.C.
main61602-90411i197402-197501
W/E.D.I.C.
main61602-90412i197402-197501
W/E.D.I.C.
main61602-90413i197402-197501
W/E.D.I.C.
main61602-90414i197402-197501
W/E.D.I.C.
main61602-90415i197402-197501
W/E.D.I.C.
main61602-90416i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90417i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90418i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90419i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90420i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90421i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90422i197402-197501
W/SAFETY BAR & E.D.I.C.
main61602-90426i197501-197608
W/E.D.I.C.
main61602-90427i197402-197501
FOR W/SAFETY BAR
main61602-90428i197402-197501
FOR W/SAFETY BAR
main61602-90429i197402-197408
FOR W/SAFETY BAR
main61602-90430i197402-197408
FOR W/SAFETY BAR
main61602-90431i197402-197501
FOR W/SAFETY BAR
main61602-90432i197402-197501
FOR W/SAFETY BAR
main61602-90437i197512-197901
main61602-90438i197606-197709
main61602-90439i197606-197709
main61602-90441i197512-197608
W/E.D.I.C.
main61602-90442i197608-197901
FOR SAND TIRE
main61602-90443i197608-197901
FOR SAND TIRE
main61602-90444i197608-197901
FOR SAND TIRE
main61602-90445i197608-197901
FOR SAND TIRE
main61602-90446i197608-197709
FOR SAND TIRE
main61602-90447i197608-197709
FOR SAND TIRE
main61602-90448i197608-197709
FOR SAND TIRE
main61602-90449i197608-197709
FOR SAND TIRE
main61602-90600i197608-197709
FOR W/AUXILIARY FUEL TANK
main61602-90601i197608-197709
FOR W/AUXILIARY FUEL TANK
main61602-90604i197608-197709
main61602-90605i197608-197709
main61602-90606i197608-197901
W/E.D.I.C.
main61602-90607i197608-197901
main61602-90608i197608-197901
main61602-90609i197608-197901
W/E.D.I.C.
main61602-90610i197709-197901
main61602-90611i197709-197901
main61602-90612i197709-197901
main61602-90613i197709-197901
main61602-90614i197709-197901
FOR SAND TIRE
main61602-90615i197709-197901
FOR SAND TIRE
main61602-90616i197709-197804
main61602-90617i197709-197804
FOR W/AUXILIARY FUEL TANK
main61602-90618i197709-197804
main61602-90619i197709-197804
FOR W/AUXILIARY FUEL TANK
main61602-90620i197709-197804
main61602-90621i197709-197804
main61602-90630i197901-198005
main61602-90631i197901-198005
main61602-90632i197901-198005
main61602-90633i197901-198005
main61602-90634i197901-198005
main61602-90635i197901-198005
FOR LICENSE PLATE POSITION LH.
main61602-90636i197901-198005
FOR LICENSE PLATE POSITION LH.
main61602-90637i197901-198005
FOR LICENSE PLATE POSITION LH.
main61602-90638i197901-198005
FOR LICENSE PLATE POSITION LH.
main61602-90639i197901-198007
FOR LICENSE PLATE POSITION LH.
main61602-90640i197901-198005
main61602-90641i197901-198005
main61602-90642i197901-198005
main61602-90643i197901-198005
FOR SAND TIRE
main61602-90644i197901-198005
FOR SAND TIRE
main61602-90645i197901-198005
FOR SAND TIRE
main61602-90646i197901-198005
FOR SAND TIRE
main61602-90647i197901-198005
FOR SAND TIRE
main61602-90648i197901-198005
FOR SAND TIRE
main61602-90649i197901-198005
FOR LICENSE PLATE POSITION LH.
main61602-90800i197901-198005
FOR LICENSE PLATE POSITION LH.
main61602-90801i197901-198005
FOR W/AUXILIARY FUEL TANK
main61602-90802i197901-198005
FOR W/AUXILIARY FUEL TANK
main61602-90803i197804-197901
main61602-90804i197804-197901
main61602-90805i197804-197901
main61602-90806i197804-197901
main61602-90807i197804-197901
FOR W/AUXILIARY FUEL TANK
main61602-90808i197804-197901
FOR W/AUXILIARY FUEL TANK
main61602-90809i197904-198007
main61602-90810i197904-198005
FOR W/AUXILIARY FUEL TANK
main61602-90811i197904-198007
FOR LICENSE PLATE POSITION LH.
main61602-90812i197909-198005
FOR L/REAR SEAT
main61602-90813i197909-198007
FOR L/REAR SEAT
main61602-90814i197909-198007
FOR L/REAR SEAT
main61602-90821i198005-198007
main61602-90822i198005-198007
main61602-90823i198005-198007
main61602-90824i198005-198007
main61602-90825i198005-198007
main61602-90826i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61602-90827i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61602-90828i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61602-90829i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61602-90830i198005-198007
main61602-90831i198005-198007
main61602-90832i198005-198007
main61602-90833i198005-198007
FOR SAND TIRE
main61602-90834i198005-198007
FOR SAND TIRE
main61602-90835i198005-198007
FOR SAND TIRE
main61602-90836i198005-198007
FOR SAND TIRE
main61602-90837i198005-198007
FOR SAND TIRE
main61602-90838i198005-198007
FOR SAND TIRE
main61602-90839i198005-198007
FOR LICENSE PLATE POSITION LH.
main61602-90840i198005-198007
FOR LICENSE PLATE POSITION,LH.
main61602-90841i198005-198007
FOR W/AUXILIARY FUEL TANK
main61602-90842i198005-198007
FOR W/AUXILIARY FUEL TANK
main61602-90843i198005-198007
FOR W/AUXILIARY FUEL TANK
main61602-90844i198005-198007
FOR L/REAR SEAT
61631PANEL, QUARTER WHEEL HOUSE, RH
main61603-90070i197901-198007
main61603-90071i197901-198007
FOR L/ROLL BAR
main61603-90072i197901-198007
main61603-90073i197904-198007
main61603-90074i197909-198007
FOR L/REAR SEAT
main61603-90075i197909-198007
FOR L/REAR SEAT
main61603-90076i197909-198007
FOR L/REAR SEAT
main61603-90343i197901-198007
FOR L/ROLL BAR
main61603-90344i197901-198007
main61603-90347i197901-198007
FOR L/ROLL BAR
main61603-90348i197901-198007
main61603-90349i197901-198007
main61625-90903i196903-197209
INNER,FOR W/SIDE SEAT
main61631-90351i196903-197209
OUTER
main61633-90361i196903-197209
INNER,FOR W/3RD SEAT
main61633-90904i196903-197209
INNER
main61646-90351i197209-198007
OUTER
main61648-90352i197901-198007
INNER,FOR W/3RD SEAT
main61648-90901i197209-197508
INNER
main61648-90902i197209-197508
INNER,FOR W/SIDE SEAT
main61705-90351i197508-198007
INNER
main61705-90352i197901-198007
INNER,FOR W/SIDE SEAT
61632PANEL, QUARTER WHEEL HOUSE, LH
main61604-90070i197901-198007
main61604-90071i197901-198007
FOR L/ROLL BAR
main61604-90072i197901-198007
main61604-90073i197904-198007
main61604-90074i197909-198007
FOR L/REAR SEAT
sub61604-90804
main61604-90075i197909-198007
FOR L/REAR SEAT
main61604-90076i197909-198007
FOR L/REAR SEAT
main61604-90343i197901-198007
FOR L/ROLL BAR
main61604-90344i197901-198007
main61604-90347i197901-198007
FOR L/ROLL BAR
main61604-90348i197901-198007
main61604-90349i197901-198007
main61626-90903i196903-197209
INNER,FOR W/SIDE SEAT
main61632-90351i196903-197209
OUTER
main61634-90361i196903-197209
INNER,FOR W/3RD SEAT
main61634-90904i196903-197209
INNER
main61647-90351i197209-198007
OUTER
main61649-90352i197901-198007
INNER,FOR W/3RD SEAT
main61649-90901i197209-197508
INNER
main61649-90902i197209-197508
INNER,FOR W/SIDE SEAT
main61706-90351i197508-198007
INNER
main61706-90352i197901-198007
INNER,FOR W/SIDE SEAT
61683PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER
main61683-90300i197901-198007
61691PLATE, REAR FENDER UNDER GUARD
main61691-90300i197901-198007
61698BCOVER, REAR BODY SIDE SERVICE HOLE
main61698-90300i197901-198007
62759WEATHERSTRIP, UPPER SIDE SET FLANGE
main62749-60010×2i196903-197207
64931BRACKET, BAND, NO.1
main64921-60010×6i196903-197901
64932BRACKET, BAND, NO.2
main64921-90310×2i196903-197901
65839SPACER, FRONT SIDE PANEL PILLAR
main65839-60010×2i196903-197207
main65839-90300×2i197207-198007
9015040002
main90150-40002
9095001022
main90950-01022
9162140825
main91621-40825
9165140616
main91651-40616
9165140820
main91651-40820
9165640616
main91656-40616
9165640820
main91656-40820
9166140620
main91661-40620
9166140825
main91661-40825
9166540625
main91665-40625
9323915014
main93239-15014
9331518014
main93315-18014
9411040800
main94110-40800
9411540400
main94115-40400
9451100800
main94511-00800
9451101000
main94511-01000
9452400500
main94524-00500
9461210800
main94612-10800
9461211001
main94612-11001

48 parts on this diagram · 4 diagrams in section

SIDE MEMBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
