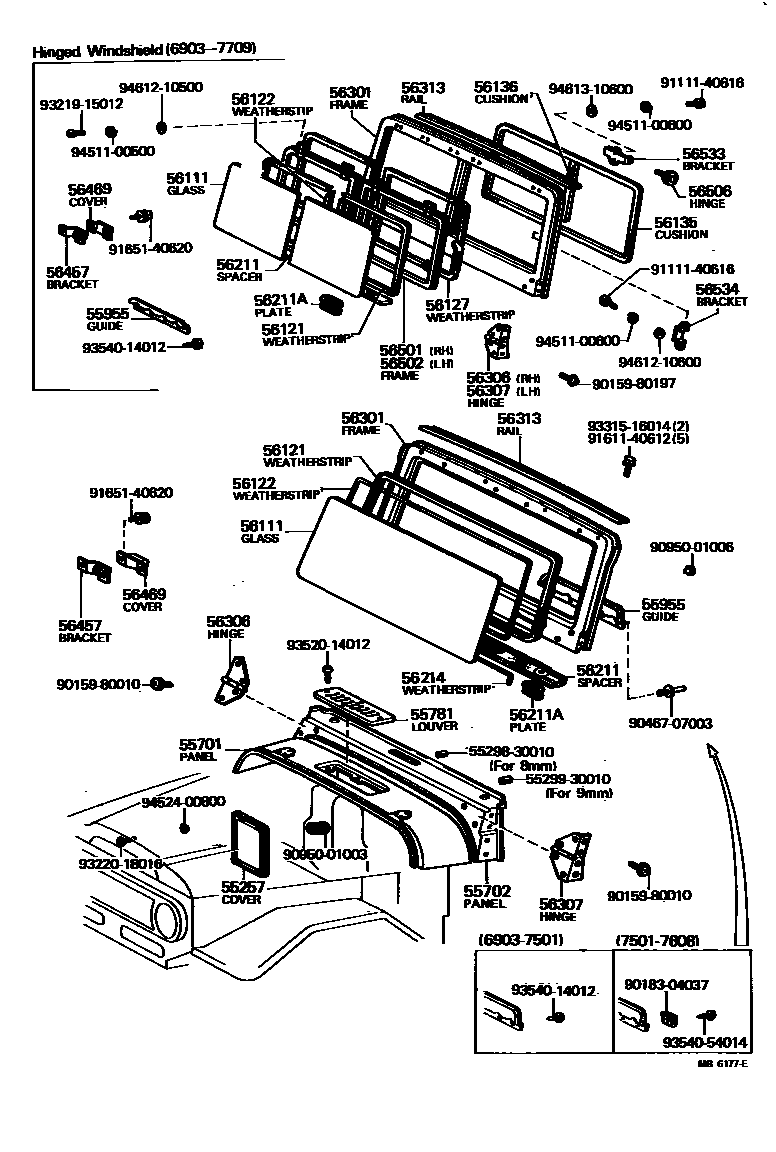

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

55257COVER, DASH PANEL OPENING

main55257-90300iBJ4#,FJ4#,HJ45..LHD197101-198007

FOR L/HEATER

55701PANEL SUB-ASSY, COWL

main55701-60012iBJ4#,FJ4#,HJ45197109-197709

FOR L/HEATER

main55701-90074iBJ4#,FJ4#,HJ45197608-198007

FOR W/HEATER

main55701-90089iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197901-198007

FOR L/HEATER

sub55701-90802

sub90189-05003

sub93520-15016

main55701-90270iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197909-198007

FOR L/HEATER

main55701-90271iBJ4#,FJ4#,HJ45197909-198007

FOR W/HEATER

sub55701-90074

main55701-90302iBJ4#,FJ4#,HJ45197709-197901

FOR L/HEATER

main55701-90340iBJ4#,FJ4#,HJ45197309-197608

FOR W/HEATER

main55711-90352iFJ55196903-198007

55702PANEL SUB-ASSY,COWL TOP, INSIDE

main55702-60052iBJ4#,FJ40,43..RHD..TP..GEN197608-198007

FOR CANVAS DOOR

main55702-60090iBJ4#,FJ4#,HJ45..LHD197608-198007

main55702-90301iBJ4#,FJ40,43..LHD..TP..GEN197608-198007

FOR CANVAS DOOR

main55702-90305iBJ4#,FJ4#,HJ45..RHD197608-198007

main55702-90351iFJ55..RHD196903-197007

main55702-90352iFJ55..LHD196903-197007

main55702-90353iFJ55..RHD197007-197209

main55702-90354iFJ55..LHD197007-197209

main55702-90355iFJ55..RHD197209-197309

main55702-90356iFJ55..LHD197209-197309

main55702-90359iFJ55..RHD197309-198007

main55702-90363iFJ55..LHD197309-198007

55781LOUVER, COWL VENTILATOR

main55768-60010iBJ4#,FJ4#,HJ45196903-198007

main55813-90351iFJ55196903-196909

55955GUIDE, DEFROSTER NOZZLE

main55955-60012iFJ4#,HJ45196903-197306

sub55955-90300

main55955-90300iBJ4#,FJ4#,HJ45197306-197501

main55956-90300iBJ4#,FJ4#,HJ45197501-198007

RH.

main55957-90300iBJ4#,FJ4#,HJ45197501-198007

LH.

56111GLASS, WINDSHIELD

main56111-60012iFJ4#196903-197005

LM.T=6.3

sub56111-60040

main56111-60013iBJ4#,FJ4#,HJ45197005-197501

ZN.TP.T=5.0

sub56111-60040

main56111-60021iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

sub56111-60040

main56111-60040iBJ4#,FJ4#,HJ45197005-197501

LM.T=6.7

sub56111-90800

main56111-90300iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197501-198007

ZN.TP.T=5.0

sub56111-90301

main56111-90301iBJ4#,FJ4#,HJ45197501-198007

LM.T=6.7

sub56111-90303

main56111-90302iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197608-198007

TN.ZN.TP.T=5.0

sub56111-90303

main56111-90303iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197608-198007

TN.LM.T=6.7

main56111-90351iFJ55196903-197004

TP.T=5.0

sub56111-90354

main56111-90353iFJ55196903-198007

LM.T=6.7

main56111-90354iFJ55197004-198007

ZN.TP.T=5.0

sub56111-90353

main56111-90355iFJ55197309-198007

TN.ZN.TP.T=5.0

sub56111-90356

main56111-90356iFJ55197309-198007

TN.LM.T=6.7

56121WEATHERSTRIP, WINDSHIELD

main56121-60011iBJ4#,FJ4#,HJ45196903-197501

FOR GLASS T=6.7&6.3

main56121-60020iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

main56121-60030iBJ4#,FJ4#,HJ45197005-197501

FOR GLASS T=5.0

main56121-90300iHJ45..VKC..ARL;BJ4#,FJ4#,HJ45..EUR,GEN197501-198007

FOR GLASS T=5.0

main56121-90301iBJ4#,FJ4#,HJ45197501-198007

FOR GLASS T=6.7

main56121-90302iBJ4#,FJ40,43..GEN197909-198007

FOR GLASS T=5.0 & W/MOULDING

main56121-90303iBJ4#,FJ40,43..GEN197909-198007

FOR GLASS T=6.7 & W/MOLDING

main56121-90303iFJ45,HJ45..PIC..GEN197909-198007

FOR GLASS T=6.7 & W/MOULDING

main56121-90351iFJ55..EUR,GEN196903-198007

FOR GLASS T=5.0

main56121-90352iFJ55196903-198007

FOR GLASS T=6.7

main56121-90357iFJ55196903-198007

FOR W/MOULDING

56122WEATHERSTRIP, WINDSHIELD, NO.2

main56122-60011iBJ4#,FJ4#,HJ45196903-197501

main56122-60020iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56127WEATHERSTRIP, WINDSHIELD, NO.3

main56127-60010iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56135CUSHION, WINDSHIELD GLASS, A

main56135-60010iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56136CUSHION, WINDSHIELD GLASS, B

main56136-60010iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56211SPACER, WINDSHIELD

main56211-60022iFJ4#196903-197203

sub56211-90300

main56211-90300iBJ4#,FJ4#,HJ45197204-198007

sub56211-90801

56211APLATE, WINDSHIELD SET

main56389-90302iFJ4#,HJ45196903-197402

56214WEATHERSTRIP, FRONT WINDSHIELD

main56214-90301iFJ4#196903-197203

56301FRAME SUB-ASSY, WINDSHIELD

main56301-60013iFJ40,43..RHD196903-197309

main56301-60032iFJ40,42,43..TP196903-197309

FOR HINGED WINDSHIELD

main56301-60102iFJ40,43..RHD196903-197309

TROPICAL

main56301-60111iBJ4#,FJ40,42,43..LHD196903-197501

main56301-60121iBJ4#,FJ40,42,43..LHD196903-197501

TROPICAL

main56301-90305iBJ4#,FJ40,43..RHD197309-197501

main56301-90306iFJ45,HJ45..RHD197309-197501

main56301-90307iBJ4#,FJ40,43..RHD197309-197501

TROPICAL

main56301-90308iFJ45,HJ45..RHD197309-197501

TRORICAL

main56301-90309iFJ40,43..RHD..TP197309-197501

FOR HINGED WINDSHIELD

sub56301-90322

main56301-90310iFJ40,43..LHD..TP197309-197501

FOR HINGED WINDSHIELD

sub56301-90323

main56301-90313iFJ45..LHD196903-197109

main56301-90315iFJ45,HJ45..LHD197109-197501

TRORICAL

main56301-90316iFJ45..RHD196903-197109

main56301-90317iFJ45,HJ45..RHD197109-197309

TRORICAL

main56301-90318iBJ4#,FJ4#,HJ45..RHD197501-197709

main56301-90319iBJ4#,FJ4#,HJ45..LHD197501-197709

main56301-90322iBJ4#,FJ4#..RHD..TP..GEN197501-197709

FOR HINGED WINDSHIELD

main56301-90323iBJ4#,FJ4#..LHD..TP..GEN197501-197709

FOR HINGED WINDSHIELD

main56301-90324iBJ4#,FJ4#,HJ45..RHD197709-198007

main56301-90325iBJ4#,FJ4#,HJ45..LHD197709-198007

main56301-90337iFJ45,HJ45..RHD197109-197309

main56301-90338iFJ45,HJ45..LHD197109-197501

56306HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH

main56306-60010iFJ4#,HJ45196903-197301

sub56306-90300

main56306-90300iBJ4#,FJ4#..TP197501-197709

FOR HINGED WINDSHIELD

main56306-90300iBJ4#,FJ4#,HJ45197301-197501

main56306-90301iBJ4#,FJ4#,HJ45197501-197809

sub56306-90302

sub90159-80010

main56306-90302iBJ4#,FJ4#,HJ45197809-198007

56307HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH

main56307-60010iFJ4#,HJ45196903-197301

sub56307-90300

main56307-90300iBJ4#,FJ4#,HJ45197301-197501

main56307-90300iBJ4#,FJ4#..TP197501-197709

FOR HINGED WINDSHIELD

main56307-90301iBJ4#,FJ4#,HJ45197501-197809

sub56307-90302

sub90159-80010

main56307-90302iBJ4#,FJ4#,HJ45197809-198007

56313RAIL, WINDSHIELD FRAME, UPPER

main56313-60011iBJ4#,FJ40,42,43..TP196903-197501

sub56313-90300

main56313-90300iBJ4#,FJ4#..TP197501-198007

56457BRACKET, WINDSHIELD CATCH, UPPER

main56457-60010iBJ4#,FJ4#,HJ45196903-198007

56469COVER, WINDSHIELD CATCH

main56469-60010iBJ4#,FJ4#,HJ45196903-198007

56501FRAME SUB-ASSY, WINDSHIELD, INNER RH

main56501-60011iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56502FRAME SUB-ASSY, WINDSHIELD, INNER LH

main56502-60011iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56506HINGE SUB-ASSY, WINDSHIELD OPENING

main56506-60010iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56533BRACKET, WINDSHIELD OPENING HINGE, INSIDE

main56533-60010iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

56534BRACKET, WINDSHIELD OPENING HINGE, OUTSIDE

main56534-60010iFJ4#..TP196903-197709

FOR HINGED WINDSHIELD

5529830010CAP, TEE NUT(FOR 8MM)

main55298-30010

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

9015980010

main90159-80010

9015980197

main90159-80197

9018304037

main90183-04037

9046707003

main90467-07003

9095001003

main90950-01003

9095001006

main90950-01006

9111140616

main91111-40616

9161140612

main91611-40612

9165140620

main91651-40620

9321915012

main93219-15012

9322018016

main93220-18016

9331516014

main93315-16014

9352014012

main93520-14012

9354014012

main93540-14012

9354054014

main93540-54014

9451100500

main94511-00500

9451100600

main94511-00600

9452400800

main94524-00800

9461210500

main94612-10500

9461210600

main94612-10600

9461310600

main94613-10600

48 parts on this diagram · 2 diagrams in section
