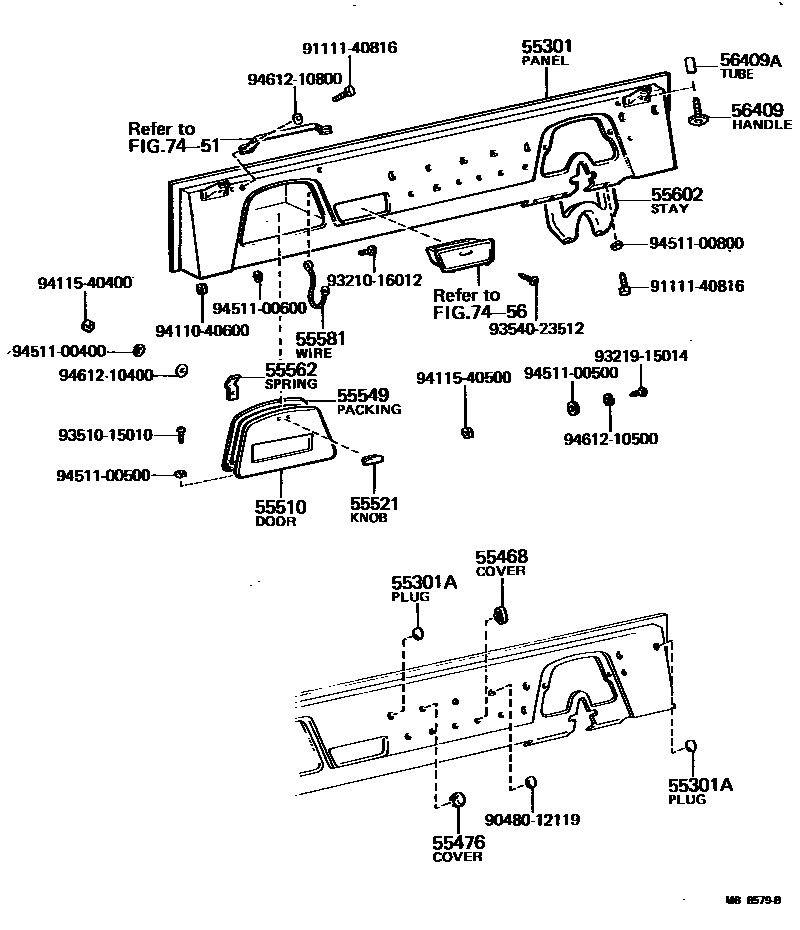

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-60011iFJ40,43,45..RHD196903-197012

FOR COLUMN SHIFT

main55301-60012iFJ40,43,45..RHD197012-197209

FOR COLUMN SHIFT

main55301-60021iFJ40,43,45..RHD196903-197012

FOR FLOOR SHIFT

main55301-60022iFJ40,43,45..RHD197012-197209

FOR FLOOR SHIFT

main55301-60041iFJ40,43,45..LHD196903-197007

FOR COLUMN SHIFT

main55301-60042iFJ40,43,45..LHD197007-197012

FOR COLUMN SHIFT

main55301-60043iFJ40,43,45..LHD197012-197209

FOR COLUMN SHIFT

main55301-60051iFJ4#..LHD196903-197007

FOR FLOOR SHIFT

main55301-60052iFJ4#..LHD197007-197012

FOR FLOOR SHIFT

main55301-60053iFJ4#..LHD197012-197209

FOR FLOOR SHIFT

main55301-60092iFJ40,43,45..LHD196903-197007

FOR COLUMN SHIFT,W/PAD

main55301-60093iFJ40,43,45..LHD197007-197012

FOR COLUMN SHIFT,W/PAD

main55301-60120iFJ4#..LHD197012-197209

FOR COLUMN SHIFT,W/PAD

main55301-60130iFJ40,43..LHD197101-197209

COLUMN SHIFT,L/PAD,TANDEM M/C

main55301-90070iHJ45..LHD197709-197901

FOR L/PAD & HEATER

main55301-90071iHJ45..LHD197709-197901

FOR W/HEATER

sub55301-90070

main55301-90072iBJ4#..RHD197709-197901

FOR L/PAD

main55301-90072iBJ4#,HJ45..RHD..GEN197901-198007

FOR L/PAD & HEATER

main55301-90073iBJ4#,HJ45..RHD197901-198007

FOR W/PAD & HEATER

sub55301-90079

main55301-90074iBJ4#,HJ45..RHD197901-198007

FOR L/PAD & W/HEATER

sub55301-90072

main55301-90075iBJ4#,HJ45..LHD197901-198007

FOR L/PAD & HEATER

main55301-90075iBJ4#..LHD197709-197901

FOR L/PAD

main55301-90076iBJ4#,HJ45..LHD197901-198007

FOR L/PAD & W/HEATER

sub55301-90075

main55301-90077iBJ4#,HJ45..LHD197901-198007

FOR W/PAD & HEATER

sub55301-90081

main55301-90078iFJ4#..RHD..GEN197901-198007

FOR W/PAD & L/HEATER

main55301-90078iFJ4#..RHD197709-197901

FOR W/PAD

main55301-90079iBJ4#..RHD197709-197901

FOR W/PAD

main55301-90079iBJ4#,HJ45..RHD..GEN197901-198007

FOR W/PAD & L/HEATER

main55301-90080iFJ4#..LHD197709-198007

FOR W/PAD & L/HEATER

main55301-90081iBJ4#,HJ45..LHD197901-198007

FOR W/PAD & L/HEATER

main55301-90081iBJ4#..LHD197709-197901

FOR W/PAD

main55301-90082iFJ4#..RHD197901-198007

FOR W/PAD & HEATER

sub55301-90282

main55301-90083iFJ40,45..(PIC,V)..EUR197709-198007

W/HEATER & SIDE DEFROSTER

main55301-90084iFJ40,45..(PIC,V)..EUR197709-198007

W/HEATER,SIDE DEFROSTER & PAD

main55301-90085iHJ45..RHD197709-197901

FOR W/PAD & L/HEATER

main55301-90086iHJ45..RHD197709-197901

FOR W/PAD & HEATER

main55301-90087iHJ45..LHD197709-197901

FOR W/PAD & L/HEATER

sub55301-90086

main55301-90088iHJ45..LHD197709-197901

FOR W/PAD & HEATER

sub55301-90085

main55301-90270iFJ4#..LHD..GEN197806-198007

FOR W/RADIO,L/PAD & HEATER

main55301-90271iFJ4#..LHD..GEN197806-198007

FOR W/RADIO & HEATER,L/PAD

sub55301-90287

main55301-90272iFJ4#..LHD..GEN197806-198007

FOR W/RADIO & HEATER,W/PAD

sub55301-90410

main55301-90273iFJ4#..LHD..GEN197806-198007

FOR W/RADIO & PAD,L/HEATER

main55301-90274iFJ40,45..RHD..(PIC,V)..GEN197901-198007

FOR L/PAD & W/COOLER

main55301-90275iFJ40,45..RHD..(PIC,V)..GEN197901-198007

FOR L/PAD,W/COOLER & HEATER

main55301-90276iFJ4#..LHD..GEN197901-198007

FOR L/PAD & W/COOLER

sub55301-90287

main55301-90277iFJ4#..LHD..GEN197901-198007

FOR L/PAD,W/COOLER & HEATER

sub55301-90287

main55301-90278iFJ4#..LHD..GEN197901-198007

FOR W/PAD,W/COOLER & HEATER

sub55301-90284

main55301-90282iFJ40,45..RHD..(PIC,V)..GEN197901-198007

FOR W/PAD & COOLER,L/HEATER

main55301-90284iFJ40,45..LHD..(PIC,V)..GEN197901-198007

FOR W/PAD & COOLER,L/HEATER

sub55301-90410

main55301-90285iFJ40,45..RHD..(PIC,V)197901-198007

FOR W/PAD & COOLER,W/HEATER

main55301-90287iFJ40,45..LHD..(PIC,V)..GEN197901-198007

FOR W/RADIO & COOLER

main55301-90288iFJ4#..LHD..GEN197901-198007

FOR W/RADIO & COOLER,W/HEATER

sub55301-90287

main55301-90289iFJ4#..LHD..GEN197901-198007

W/PAD & RADIO,W/COOLER & HEA.

main55301-90300iFJ40,43..LHD197101-197209

FLOOR SHIFT,L/PAD,TANDEM M/C

main55301-90302iHJ45..RHD197204-197209

main55301-90312iFJ4#..RHD197209-197309

main55301-90313iHJ45..RHD197209-197309

main55301-90314iFJ4#..LHD197209-197309

FOR W/PAD

main55301-90315iFJ4#..LHD197209-197309

FOR L/PAD

main55301-90316iHJ45..LHD197204-197209

main55301-90317iHJ45..LHD197209-197709

FOR L/PAD & HEATER

main55301-90320iFJ4#..LHD197309-197709

FOR L/PAD & HEATER

main55301-90321iFJ4#..LHD197309-197709

FOR L/PAD & W/HEATER

main55301-90322iFJ4#..LHD197309-197709

FOR W/PAD & HEATER

sub55301-90323

main55301-90323iFJ4#..LHD197309-197709

FOR W/PAD & L/HEATER

main55301-90325iHJ45..LHD197309-197709

FOR W/HEATER

sub55301-90317

main55301-90326iFJ4#..RHD197309-197709

FOR L/PAD & HEATER

main55301-90327iFJ4#..RHD197309-197709

FOR W/HEATER

sub55301-90326

main55301-90328iHJ45..RHD197309-197709

main55301-90329iHJ45..RHD197309-197709

FOR W/HEATER

main55301-90330iBJ4#..RHD197402-197709

FOR L/PAD

main55301-90332iBJ4#..RHD197402-197709

FOR W/PAD

main55301-90334iBJ4#..LHD197402-197709

FOR L/PAD

main55301-90336iBJ4#..LHD197402-197709

FOR W/PAD

main55301-90338iFJ4#..RHD197501-197709

FOR W/PAD

main55301-90341iFJ40,45..LHD..(PIC,V)..EUR197608-197709

W/HEATER & SIDE DEFROSTER

main55301-90342iFJ40,45..LHD..(PIC,V)..EUR197608-197709

W/HEATER,SIDE DEFROSTER & PAD

main55301-90343iFJ4#..RHD..GEN197709-198007

FOR L/PAD & HEATER

main55301-90344iFJ4#..RHD197709-198007

FOR L/PAD,W/HEATER

main55301-90345iFJ4#..LHD197709-198007

FOR L/PAD & HEATER

sub55301-90287

main55301-90346iFJ4#..LHD197709-198007

FOR L/PAD & W/HEATER

sub55301-90287

main55301-90347iFJ4#..LHD197709-198007

FOR W/PAD & HEATER

sub55301-90284

main55301-90348iHJ45..RHD197709-197901

main55301-90349iHJ45..RHD197709-197901

FOR W/HEATER

sub55301-90348

main55301-90355iFJ55..RHD197109-197209

FOR TANDEM M/C

main55301-90356iFJ55..RHD197109-197209

main55301-90357iFJ55..RHD196903-197007

main55301-90358iFJ55..LHD196903-197007

main55301-90359iFJ55..RHD197007-197109

main55301-90361iFJ55..RHD197209-197608

FOR SINGLE M/C

main55301-90362iFJ55..LHD197209-197709

main55301-90363iFJ55..RHD197209-197709

FOR TANDEM M/C

main55301-90364iFJ55..LHD197007-197209

main55301-90365iFJ55..RHD197709-198007

main55301-90366iFJ55..LHD197709-198007

main55301-90410iFJ4#..LHD..GEN197901-198007

FOR W/RADIO & PAD,W/COOLER

55301APLUG, HOLE(FOR INSTRUMENT LOWER PANEL)

main90950-01038iFJ4#197007-197209

55468COVER, HEATER SWITCH HOLE

main55405-20020iFJ4#,HJ45196903-197209

main55464-90353iFJ55196903-198007

55476COVER, CIGARETTE LIGHTER HOLE

main55328-90351iFJ55196903-197209

OD=21

main55476-20021iFJ4#,55,HJ45196903-197209

OD=27

55510DOOR ASSY, GLOVE COMPARTMENT

main55407-90352iFJ55196903-197806

main55407-90353iFJ55197806-198007

main55407-90357iFJ55196903-197209

W/LOCK

main55501-60041iBJ4#,FJ4#,HJ45196903-197804

main55501-90314iBJ4#,FJ4#,HJ45197804-198007

sub55501-90801

55521KNOB, GLOVE COMPARTMENT DOOR

main55521-12020iFJ55197806-198007

main55521-60011iBJ4#,FJ4#,HJ45196903-197804

main55521-90300iBJ4#,FJ4#,HJ45197804-198007

55549PACKING, GLOVE COMPARTMENT DOOR

main55512-90351iFJ55196903-197806

main55512-90352iFJ55197806-198007

main55549-60011iBJ4#,FJ4#,HJ45196903-197505

sub55549-90300

main55549-90300iBJ4#,FJ4#,HJ45197505-198007

55562SPRING, GLOVE COMPARTMENT DOOR STOP

main55544-55010iFJ4#196903-197203

main55544-90300iBJ4#,FJ4#,HJ45197204-197804

main55544-90301iBJ4#,FJ4#,HJ45197804-198007

55581WIRE, GLOVE COMPARTMENT DOOR OPEN

main55508-30020iBJ4#,FJ4#,HJ45197005-198007

main55581-60010iFJ4#196903-197005

sub55508-30020

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55672-60010iBJ4#,FJ40,43,45,HJ45..RHD196903-197709

main55672-60020iBJ4#,FJ4#,HJ45..LHD196903-197709

56409HANDLE SUB-ASSY, WINDSHIELD CATCH

main56409-60010iBJ4#,FJ4#,HJ45196903-198007

56409ATUBE, WINDSHIELD CATCH HANDLE

main90440-17057iBJ4#,FJ4#,HJ45196903-198007

7451

7456

9048012119

main90480-12119

9111140816

main91111-40816

9321016012

main93210-16012

9321915014

main93219-15014

9351015010

main93510-15010

9354023512

main93540-23512

9411040600

main94110-40600

9411540400

main94115-40400

9411540500

main94115-40500

9451100400

main94511-00400

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9461210400

main94612-10400

9461210500

main94612-10500

9461210800

main94612-10800

30 parts on this diagram · 6 diagrams in section
