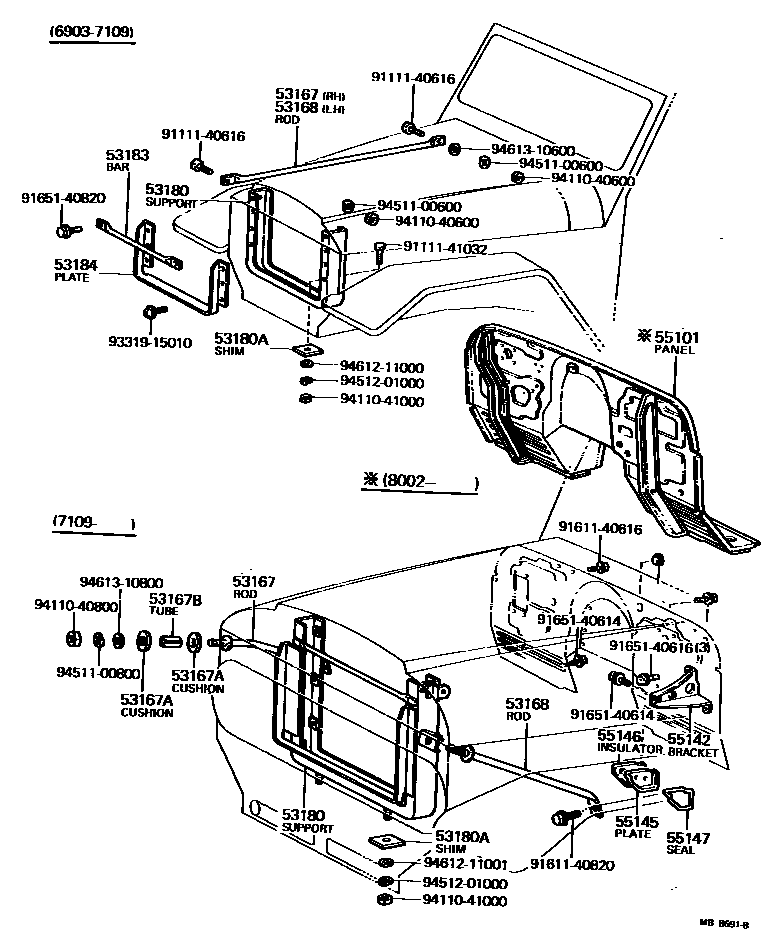

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53167ROD, RADIATOR BRACE, RH

main53016-60010iFJ4#,HJ45197109-197608

main53016-60011iFJ4#197608-198007

main53016-60020iHJ45..VKC..GEN;HJ45..PIC..(ARL,GEN)197608-198007

main53016-60021iFJ40,45..ARL198004-198007

OD=450, 7 BLADES.FAN,TEMPERD

main53016-60030iHJ45..EUR197901-198007

main53016-60040iFJ40,45..RHD..(PIC,V)197901-198007

FOR W/COOLER

main53016-60060iFJ4#..LHD..GEN197901-198007

FOR W/COOLER

main53016-60080iFJ40,45..WORB..ARL198004-198007

FOR W/COOLER

main53167-60010iFJ4#196903-197109

main53167-60030iBJ4#197402-198007

N50Z,N70Z X 2

main53167-60040iBJ4#197510-197608

N50,N70Z

main53167-60041iBJ4#..ARL,GEN197608-198007

N50,N70Z

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iBJ4#,FJ4#,HJ45197109-198007

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iBJ4#,FJ4#,HJ45197109-198007

53168ROD, RADIATOR BRACE, LH

main53018-60010iFJ4#,HJ45197109-197608

main53018-60011iFJ4#197608-197901

sub53018-60012

main53018-60012iFJ4#197901-198007

main53018-60020iHJ45197608-198007

main53018-60030iFJ40,45..ARL198004-198007

OD=450,7 BLADES.FAN,TEMPERD

main53018-60040iFJ40..ARL197901-198007

N.S.W.

main53018-60050iFJ40..ARL198004-198007

N.S.W & P.S.

main53167-60010iFJ4#196903-197109

main53169-60020iBJ4#197402-198007

53180SUPPORT ASSY, RADIATOR

main53108-60011iFJ4#196903-197109

main53108-60012iFJ4#197109-197501

main53108-60013iFJ4#197501-197608

main53108-60015iFJ4#197608-197901

main53108-60020iBJ4#,HJ45197204-197901

main53201-60010iBJ4#197710-197901

main53201-60011iBJ4#197901-198007

sub53201-60012

main53201-60021iFJ4#197901-198007

main53201-60030iHJ45197901-198007

main53201-60041iFJ40,45..ARL197908-198007

W/COOLER

sub53201-60042

53180ASHIM(FOR RADIATOR SUPPORT)

main90950-04010iBJ4#,FJ4#,HJ45196903-198007

53183BAR, RADIATOR SUPPORT

main53163-60010iFJ4#196903-197109

53184PLATE, RADIATOR SHROUD

main53164-60010iFJ4#196903-197109

55101PANEL SUB-ASSY, DASH

main55101-90274iFJ4#..RHD198002-198007

main55101-90289iBJ4#..RHD198002-198007

sub55101-90813

main55101-90414iBJ4#..LHD198002-198007

main55101-90417iHJ45..RHD198002-198007

main55101-90419iHJ45..LHD198002-198007

main55101-90426iFJ4#..LHD198002-198007

main55102-90371iFJ55..RHD198002-198007

main55102-90379iFJ55..LHD198002-198007

55142BRACKET,BLOWER MOTOR, LOWER

main55142-90300iFJ4#..LHD..GEN197901-198007

55145PLATE, DASH PANEL HEAT INSULATOR

main55145-90300iFJ4#..LHD..GEN197901-198007

FOR W/COOLER

55146INSULATOR, DASH PANEL HEAT

main55146-90300iFJ4#..LHD..GEN197901-198007

FOR W/COOLER

55147SEAL, DASH PANEL HEAT INSULATOR

main55147-90300iFJ4#..LHD..GEN197901-198007

FOR W/COOLER

9111140616

main91111-40616

9161140616

main91611-40616

9161140820

main91611-40820

9165140614

main91651-40614

9165140616

main91651-40616

9165140820

main91651-40820

9331915010

main93319-15010

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451100600

main94511-00600

9451100800

main94511-00800

9451201000

main94512-01000

9461211000

main94612-11000

9461211001

main94612-11001

9461310600

main94613-10600

9461310800

main94613-10800

30 parts on this diagram · 2 diagrams in section
