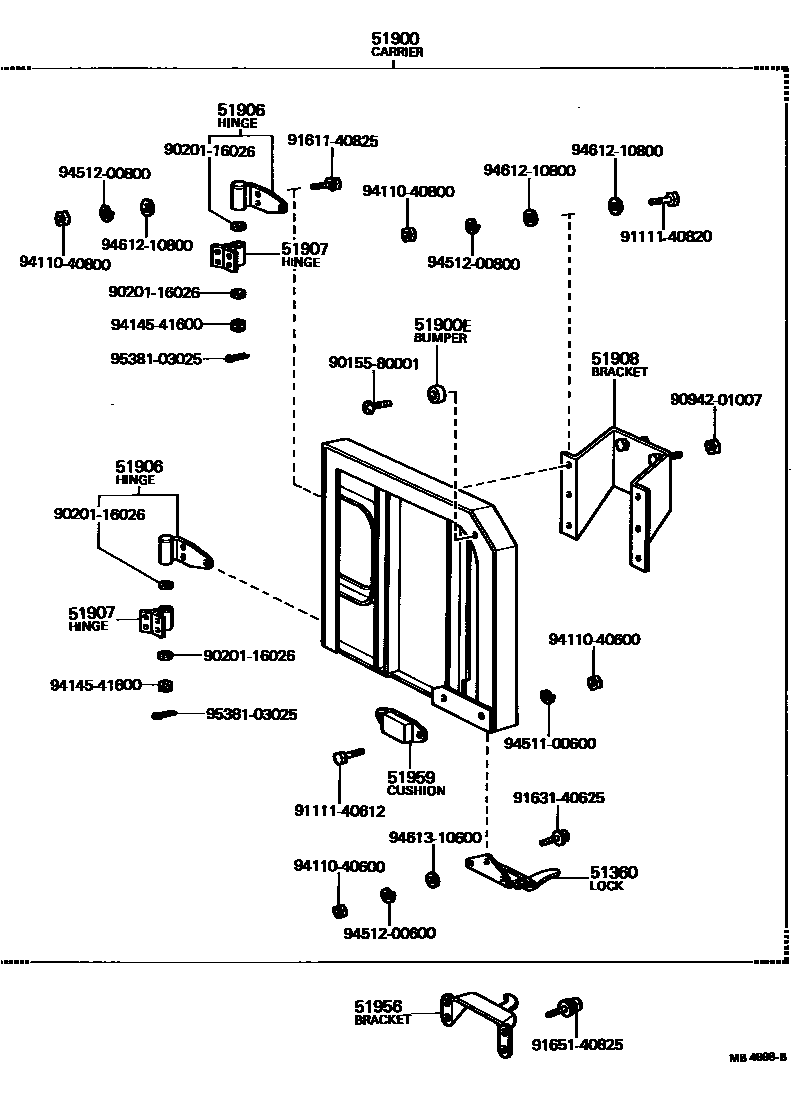

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1 0004 1 0005 1

51360LOCK ASSY, SPARE WHEEL

main51930-90300iBJ4#,FJ40,43197608-198007

main69350-60010iBJ4#,FJ40,42,43..LHD..(TPB,TPC,TPS,VLS)196903-197608

main69360-60010iBJ4#,FJ40,43196903-197608

51900CARRIER ASSY, SPARE WHEEL

main51900-60021iFJ40,43..RHD..TPS196903-197109

sub51900-90300

main51900-60050iFJ40,42,43..LHD..TPS196903-197109

sub51900-90305

main51900-60060iFJ40,43..RHD..(TPB,TPC,VLS)196903-197109

sub51900-90300

main51900-60070iFJ40,43..LHD..(TPB,TPC,VLS)196903-197109

sub51900-90305

main51900-60080iFJ55196903-196904

sub51900-60081

main51900-60081iFJ55196904-198007

sub51900-60090

main51900-90300iBJ4#,FJ40,43..RHD197109-197608

main51900-90302iBJ40..LHD..VKC..EUR197608-198005

main51900-90305iBJ4#,FJ40,42,43..LHD..(TPB,TPC,TPS,VLS)197109-197608

main51900-90306iBJ4#,FJ40,43..LHD..(TPC,TPS,VLS)..GEN197901-198005

FOR LICENSE POSITION LH.

main51900-90306iFJ40..LHD..VKC..EUR;BJ4#,FJ40,43..(TPC,TPS,VLS)..EUR197608-198005

main51900-90312iFJ40..LHD..TPS196903-197109

VINYL TARPAULIN

main51900-90313iFJ40..RHD..TPS196903-197109

VINYL TARPAULIN

main51903-60040iFJ45,HJ45196903-197606

main51903-90351iFJ55..GEN197901-198007

FOR INTERIOR SPARE WHEEL

main51903-90800iBJ4#,FJ40,43..ARL,GEN198005-198007

sub51903-90803

main51903-90801iBJ4#,FJ40,43..LHD..(TPC,TPS,VLS)..GEN198005-198007

FOR LICENSE POSITION LH.

sub51903-90804

main51911-90903iFJ55196903-197901

FOR INTERIOR SPARE WHEEL

sub51903-90351

51900EBUMPER, SPARE WHEEL CARRIER

main51908-90300iBJ4#,FJ40,43197510-197608

main51924-90351iFJ55..GEN196903-198007

FOR INTERIOR SPARE WHEEL

main51928-90300iBJ4#,FJ40,43197608-198007

main53381-30010iFJ40,42,43196903-196908

sub53307-30010

main53382-20011iFJ40,42,43196908-197211

sub53382-90A00

main53382-90901iBJ4#,FJ40,43197211-197501

sub53382-90902

main53382-90902iBJ4#,FJ40,43197501-197510

sub51908-90300

51906HINGE SUB-ASSY, SPARE WHEEL CARRIER MALE

main51906-60010iFJ40,43..RHD196903-197109

main51907-60040iFJ40,42,43..LHD196903-197109

main51937-60010iFJ45196903-197011

51907HINGE SUB-ASSY, SPARE WHEEL CARRIER

main51907-60030iFJ40,42,43196903-197109

main51937-90302iBJ4#,FJ40,43197608-198007

LOWER

main51946-60010iFJ45,HJ45196903-197606

main51947-90300iBJ4#,FJ40,43197608-198005

UPPER

main51955-90800iBJ4#,FJ40,43198005-198007

UPPER

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51904-60010iBJ4#,FJ40,42,43196903-197608

51956BRACKET, SPARE WHEEL CARRIER SUPPORT

main51926-90301iBJ4#,FJ40,43197608-198007

main51955-60010iBJ4#,FJ40,43..RHD196903-197608

main51955-60020iBJ4#,FJ40,43..EUR196903-197608

51959CUSHION, SPARE WHEEL

main51907-60010iFJ40,43..TPB,TPC,VLS196903-197109

main51907-60020iFJ40,42,43..TPS196903-197109

main51907-90300iBJ4#,FJ40,42,43197109-197608

main51929-90300iBJ4#,FJ40,43197608-198007

9015580001

main90155-80001

9020116026

main90201-16026

9094201007

main90942-01007

9111140612

main91111-40612

9111140820

main91111-40820

9161140825

main91611-40825

9163140625

main91631-40625

9165140825

main91651-40825

9411040600

main94110-40600

9411040800

main94110-40800

9414541600

main94145-41600

9451100600

main94511-00600

9451200600

main94512-00600

9451200800

main94512-00800

9461210800

main94612-10800

9461310600

main94613-10600

9538103025

main95381-03025

25 parts on this diagram · 5 diagrams in section
