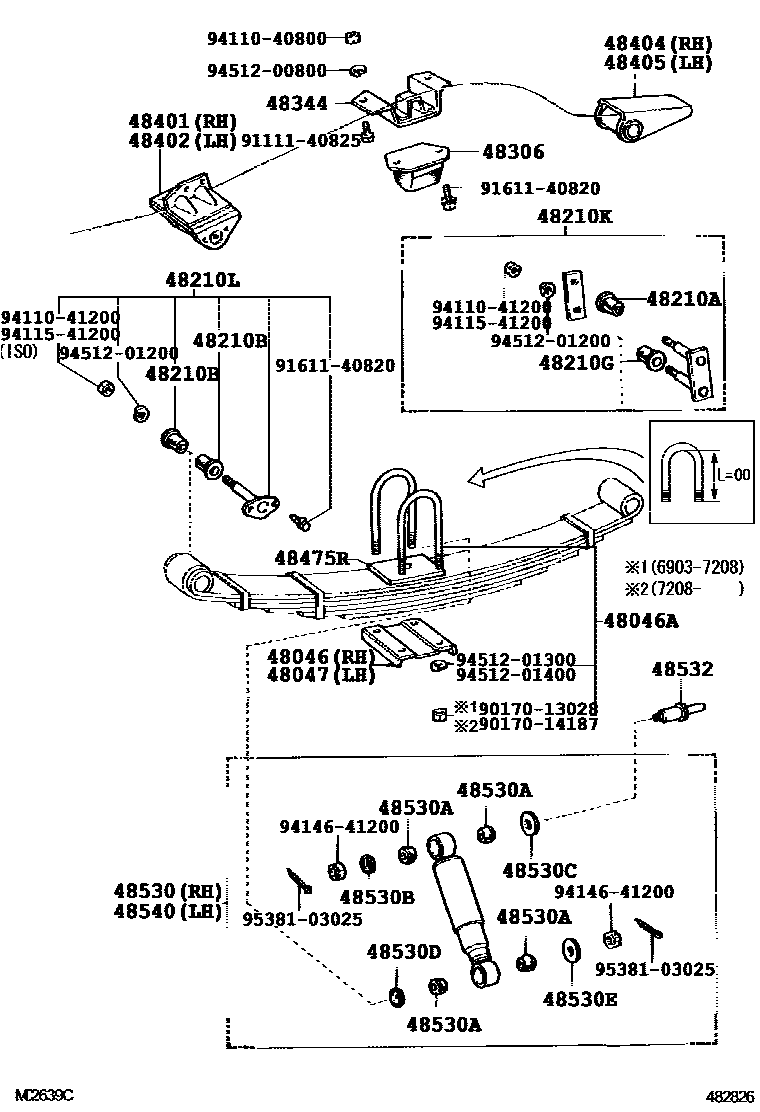

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-60010iFJ43196903-196908

sub48046-60011

sub94146-41200

main48046-60011iFJ43196908-197208

ISO

sub48046-60031

main48046-60020iFJ45196903-196908

sub48046-60021

sub94146-41200

main48046-60021iFJ45,HJ45196908-197710

sub48046-60H01

main48046-60022iFJ45,HJ45197710-198007

main48046-60030iFJ55196903-196908

sub48046-60031

sub94115-41200

main48046-60031iBJ4#,FJ40,43,55197208-197710

sub48046-60H00

main48046-60031iFJ55196908-197208

ISO

sub48046-60H00

main48046-60032iBJ4#,FJ40,43,55197710-198007

main48473-60010iFJ40,42196903-197208

main48473-60011iBJ40,FJ40197208-197501

sub48473-60012

48046ABOLT, U(FOR REAR SPRING)

main90118-13113iFJ43,45,HJ45196903-197208

L=200,D=13

sub90117-13036

sub90170-13028

sub94512-01300

main90118-13114iFJ55196903-197208

L=175,D=13,FOR LIGHT WEIGHT

sub90117-13044

sub90170-13028

sub94512-01300

main90118-13115iFJ40,42196903-197208

L=165,D=13

sub48398-69040

main90118-13116iFJ55196903-197208

L=190,D=13

sub90117-13034

sub90170-13028

sub94512-01300

main90118-14106iBJ40,FJ40197208-197704

L=165,D=14

sub90118-14158

main90118-14107iBJ40,FJ40197208-197708

L=175,D=14

sub90117-14177

main90118-14107iBJ43,FJ43197501-197708

L=175,D=14,FOR LIGHT WEIGHT

sub90117-14177

main90118-14108iFJ55197208-197709

L=185,D=14,FOR LIGHT WEIGHT

main90118-14109iFJ55197208-198007

L=195,D=14

sub90117-14179

main90118-14110iBJ43,FJ43,45,55,HJ45197208-198007

L=205,D=14

sub90117-14180

main90118-14111iBJ43,FJ43,45,HJ45197208-198007

L=215,L=215,D=14

sub90117-14181

main90118-14158iBJ40,FJ40197704-198007

L=170,D=14

sub90117-14001

main90118-14160iBJ43,FJ43197708-197709

L=180,D=14,FOR LIGHT WEIGHT

sub90117-14004

sub90170-14187

sub94512-01400

main90118-14160iBJ43,FJ43197708-197709

L=180,D=14

sub90117-14004

sub90170-14187

sub94512-01400

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-60010iFJ43196903-196908

sub48047-60011

sub94146-41200

main48047-60011iFJ43196908-197208

ISO

sub48047-60031

main48047-60020iFJ45196903-196908

sub48047-60021

sub94146-41200

main48047-60021iFJ45,HJ45196908-197710

sub48047-60H01

main48047-60022iFJ45,HJ45197710-198007

main48047-60030iFJ55196903-196908

sub48047-60031

sub94115-41200

main48047-60031iBJ43,FJ43,55197208-197710

sub48047-60H00

main48047-60031iFJ55196908-197208

ISO

sub48047-60H00

main48047-60032iBJ4#,FJ40,43,55197710-198007

main48473-60010iFJ40,42196903-197208

main48473-60011iBJ40,FJ40197208-197501

sub48473-60012

48210SPRING ASSY, REAR RH

main48210-60100iBJ43,FJ43196903-198007

main48210-60110iBJ43,FJ43197501-197709

FOR LIGHT WEIGHT

main48210-60120iBJ40,FJ40,42196903-198007

main48210-60140iFJ45,HJ45..LHD196903-198007

main48210-60150iFJ55..EUR,GEN196903-197901

main48210-60151iFJ55..EUR,GEN197901-198007

main48210-60160iFJ55..EUR,GEN196903-197709

FOR LIGHT WEIGHT

main48210-60180iFJ55..ARL197608-197901

PROGRESSIVE TYPE

main48210-60181iFJ55197901-198007

PROGRESSIVE TYPE

main48210-60200iBJ40,FJ40..RHD197709-198007

main48210-60210iFJ45,HJ45..RHD197709-198007

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-15002iBJ40,FJ40198001-198007

main90385-15016iBJ40,FJ40,42196903-198001

main90385-18025iBJ43,FJ43,45,55,HJ45196903-198007

48210BBUSH(FOR REAR SPRING PIN)

main90385-15002iBJ40,FJ40198001-198007

main90385-15016iBJ40,FJ40,42196903-198001

main90385-18025iBJ43,FJ43,45,55,HJ45196903-198007

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-15002iBJ40,FJ40198001-198007

main90385-15016iBJ40,FJ40,42196903-198001

main90385-18025iBJ43,FJ43,45,55,HJ45196903-198007

48210KSHACKLE KIT, REAR SPRING

main04481-60012iBJ40,FJ40,42196903-198007

TYPE A

main04483-35020iBJ43,FJ43,45,55,HJ45196903-197901

TYPE A

sub04483-35030

main04483-35020iFJ55197901-198007

sub04483-35030

main04483-60010iBJ40,FJ40197809-198007

FOR RH.TYPE B

main04483-60020iBJ40,FJ40197809-198007

FOR LH.TYPE B

main04483-60030iBJ43,FJ43,45,HJ45197809-198007

FOR RH.TYPE B

main04483-60040iBJ43,FJ43,45,HJ45197809-198007

FOR LH.TYPE B

48210LPIN KIT, REAR SPRING

main04482-60010iBJ40,FJ40,42196903-198001

main04482-60030iBJ40,FJ40198001-198007

main04484-35011iBJ43,FJ43,45,HJ45196903-198007

main04484-35020iFJ55196903-198007

sub04484-35040

48306BUMPER SUB-ASSY, REAR SPRING

main48304-60010iBJ40,FJ40,42,55196903-198007

main48306-60010iBJ43,FJ43,45,HJ45196903-198007

48344STOPPER, BUMPER, REAR

main48035-60010iBJ40,FJ40,42196903-198007

main48344-60030iBJ43,FJ43196903-198007

RH.

main48344-60040iFJ45,HJ45196903-198007

RH.

main48354-60030iBJ43,FJ43196903-198007

LH.

main48354-60040iFJ45,HJ45196903-198007

LH.

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-35010iBJ43,FJ43,45,HJ45196903-198007

main48414-60020iBJ40,FJ40,42196903-198007

main48414-60030iFJ55196903-197901

main48414-60031iFJ55197901-198007

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48415-35010iBJ43,FJ43,45,HJ45196903-198007

main48415-60020iBJ40,FJ40,42196903-198007

main48415-60030iFJ55196903-197901

main48415-60031iFJ55197901-198007

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48405-60010iBJ40,FJ40,42196903-198007

main48416-35011iBJ43,FJ43,45,HJ45196903-198007

main48416-60020iFJ55196903-198007

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48405-60010iBJ40,FJ40,42196903-198007

main48416-35011iBJ43,FJ43,45,HJ45196903-198007

main48416-60020iFJ55196903-198007

48475RPLATE, DISTANCE(FOR REAR)

main48475-60010iBJ4#,FJ4#,55,HJ45197208-197706

sub48475-60011

main48475-60011iBJ4#,FJ4#,55,HJ45197706-198007

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-69045iBJ40,FJ40,42196903-197501

sub48531-69048

main48531-69046iBJ40,FJ40197501-197710

sub48531-69047

main48531-69047iBJ40,FJ40197710-198007

MARK 48531-60061

sub48531-69049

main48531-69055iBJ43,FJ43,45,HJ45196903-198007

sub48531-69058

main48531-69056iFJ55197104-197710

sub48531-69057

main48531-69057iFJ55197710-198007

MARK 48531-60071

sub48531-69059

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iBJ4#,FJ4#,55,HJ45196903-198007

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBJ4#,FJ4#,55,HJ45196903-198007

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBJ4#,FJ4#,55,HJ45196903-198007

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004iBJ4#,FJ4#,55,HJ45196903-198007

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03003iBJ4#,FJ4#,55,HJ45196903-198007

48532PIN, REAR SHOCK ABSORBER PIVOT

main48532-30010iFJ4#,55196903-196908

sub48532-30011

sub94146-41200

main48532-30011iBJ4#,FJ4#,55,HJ45196908-197710

main48532-60010iBJ4#,FJ4#,55,HJ45197710-198007

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-69045iBJ40,FJ40,42196903-197501

sub48531-69048

main48531-69046iBJ40,FJ40197501-197710

sub48531-69047

main48531-69047iBJ40,FJ40197710-198007

MARK 48531-60061

sub48531-69049

main48531-69055iFJ43,45,55196903-198007

sub48531-69058

main48531-69056iFJ55197104-197710

sub48531-69057

main48531-69057iFJ55197710-198007

MARK 48531-60071

sub48531-69059

9017013028

main90170-13028

9017014187

main90170-14187

9111140825

main91111-40825

9161140820

main91611-40820

9411040800

main94110-40800

9411041200

main94110-41200

9411541200

main94115-41200

9414641200

main94146-41200

9451200800

main94512-00800

9451201200

main94512-01200

9451201300

main94512-01300

9451201400

main94512-01400

9538103025

main95381-03025

37 parts on this diagram · 9 diagrams in section
