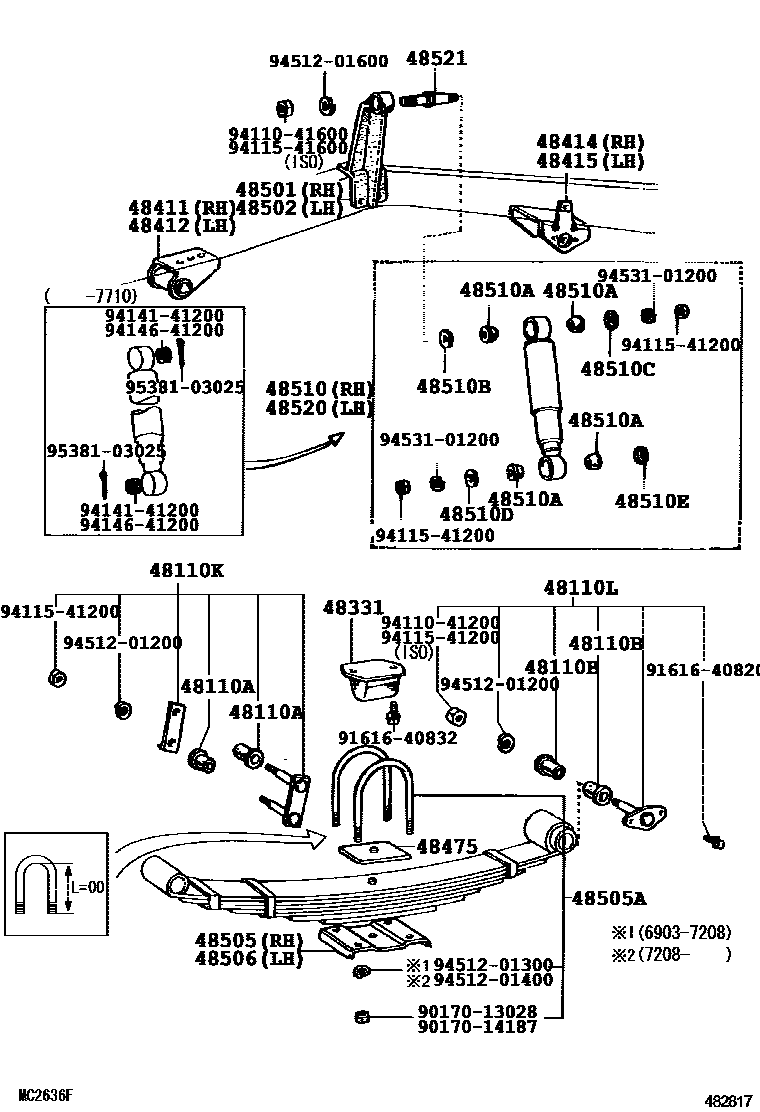

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48110SPRING ASSY, FRONT, RH

main48110-60060iBJ4#,FJ4#,HJ45196903-197808

CAMBER H=60.5-69.5

sub48110-60061

sub48473-60012

main48110-60061iFJ45..LHD;BJ4#,FJ40,43197808-198007

CAMBER H=60.5-69.5

main48110-60080iFJ55196903-197709

sub48110-60130

sub48473-60012

main48110-60100iHJ45;FJ45..RHD197706-197808

CAMBER H=91.5-100.5

sub48110-60101

sub48473-60012

main48110-60101iHJ45;FJ45..RHD197808-198007

CAMBER H=91.5-100.5

main48110-60120iFJ55197709-197808

sub48110-60140

sub48473-60012

main48110-60121iFJ55197901-198007

main48110-60140iFJ55197808-197901

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-15002iBJ4#,FJ4#,HJ45198001-198007

main90385-15016iBJ4#,FJ4#,HJ45196903-198001

main90385-18025iFJ55196903-198007

48110BBUSH(FOR FRONT SPRING PIN)

main90385-15002iBJ4#,FJ4#,HJ45198001-198007

main90385-15016iBJ4#,FJ4#,HJ45196903-198001

main90385-18025iFJ55196903-198007

48110KSHACKLE KIT, FRONT SPRING

main04481-36020iFJ55196903-198007

main04481-60011iFJ4#196903-196908

sub04481-60012

main04481-60012iBJ4#,FJ4#,HJ45196908-198007

48110LPIN KIT, FRONT SPRING

main04482-35020iFJ4#196903-196908

sub04482-60010

main04482-60010iBJ4#,FJ4#,HJ45196908-197704

main04482-60020iBJ4#,FJ4#,HJ45197704-198007

main04484-35020iFJ55196903-198007

sub04484-35040

48331BUMPER, FRONT SPRING, NO.1

main48304-60010iBJ4#,FJ4#,HJ45196903-198007

LH.

main48304-60020iBJ4#,FJ4#,HJ45196903-198007

RH.

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48403-60021iBJ4#,FJ4#,HJ45196903-198007

main48411-60020iFJ55196903-198007

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48403-60021iBJ4#,FJ4#,HJ45196903-198007

main48411-60020iFJ55196903-198007

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48411-25010iFJ4#196903-197107

sub48411-60030

main48411-60030iBJ4#,FJ4#,HJ45197107-197704

sub48411-60031

sub04482-60020

main48411-60031iBJ4#,FJ4#,HJ45197704-198007

main48433-60010iFJ55196903-198007

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48411-25010iFJ4#196903-197107

sub48411-60030

main48411-60030iBJ4#,FJ4#,HJ45197107-197704

sub48411-60031

sub04482-60020

main48411-60031iBJ4#,FJ4#,HJ45197704-198007

main48434-60010iFJ55196903-198007

48475PLATE, DISTANCE(FOR FRONT)

main48475-60010iBJ4#,FJ4#,55,HJ45197208-197706

sub48475-60011

main48475-60011iBJ4#,FJ4#,55,HJ45197706-198007

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48512-60010iBJ4#,FJ4#,HJ45196903-198007

main48512-60020iFJ55196903-198007

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48512-60020iFJ55196903-198007

main48513-60010iBJ4#,FJ4#,HJ45196903-198007

48505SEAT, FRONT SPRING, RH

main48473-60010iFJ4#,55,HJ45196903-197208

main48473-60011iBJ4#,FJ4#,55,HJ45197208-197808

sub48473-60012

main48473-60012iBJ4#,FJ4#,55,HJ45197808-197901

main48473-60040iBJ4#,FJ4#,55,HJ45197901-198007

48505ABOLT, U(FOR FRONT SPRING)

main90118-13113iFJ40,43,45,55,HJ45196903-197208

L=200,D=13,RH INSIDE

sub90117-13036

sub90170-13028

sub94512-01300

main90118-13114iFJ4#,55,HJ45196903-197208

L=175,D=13,RH OUTSIDE & LH.

sub90117-13044

sub90170-13028

sub94512-01300

main90118-14107iBJ4#,FJ4#,55,HJ45197208-197708

L=175,D=14,RH OUTSIDE & LH.

sub90117-14177

main90118-14108iBJ4#,FJ4#,55,HJ45197208-198007

L=185,D=14,RH OUTSIDE & LH.

main90118-14109iFJ55197709-198007

L=195,D=14,RH OUTSIDE & LH.

sub90117-14179

main90118-14110iBJ4#,FJ4#,55,HJ45197208-198007

L=205,D=14,RH INSIDE

sub90117-14180

main90118-14111iBJ43,FJ43197208-198007

L=215,L=215,D=14,RH INSIDE

sub90117-14181

main90118-14160iBJ4#,FJ4#,55,HJ45197708-198007

L=180,D=14,RH OUTSIDE & LH.

sub90117-14004

sub90170-14187

sub94512-01400

main90118-14161iFJ55197709-198007

L=210,D=14,RH INSIDE

sub90117-14002

main90118-14162iFJ55197709-198007

L=220,D=14,RH INSIDE

sub90117-14022

48506SEAT, FRONT SPRING, LH

main48473-60010iFJ4#,55,HJ45196903-197208

main48473-60011iBJ4#,FJ4#,55,HJ45197208-197808

sub48473-60012

main48473-60012iBJ4#,FJ4#,55,HJ45197808-197901

main48474-60030iBJ4#,FJ4#,55,HJ45197901-198007

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-69035iBJ4#,FJ4#,HJ45196903-197710

sub48511-69036

main48511-69036iBJ4#,FJ4#,HJ45197710-198007

sub48511-69037

main48511-69045iFJ55196903-197104

sub48511-69048

main48511-69046iFJ55197104-197710

sub48511-69047

main48511-69047iFJ55197710-198007

sub48511-69049

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16007iFJ55196903-198007

LOWER

main90948-01002iFJ55196903-198007

UPPER

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02005iFJ55196903-198007

main90948-03004iBJ4#,FJ4#,HJ45196903-198007

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02004iFJ55196903-198007

main90948-03003iBJ4#,FJ4#,HJ45196903-198007

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBJ4#,FJ4#,55,HJ45196903-198007

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBJ4#,FJ4#,55,HJ45196903-198007

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-69035iBJ4#,FJ4#,HJ45196903-197710

sub48511-69036

main48511-69036iBJ4#,FJ4#,HJ45197710-198007

sub48511-69037

main48511-69045iFJ55196903-197104

sub48511-69048

main48511-69046iFJ55197104-197710

sub48511-69047

main48511-69047iFJ55197710-198007

sub48511-69049

48521PIN, FRONT SHOCK ABSORBER UPPER PIVOT

main48521-36040iBJ4#,FJ4#,HJ45197710-198007

main48533-60010iFJ4#196903-196908

sub48533-60011

sub94146-41200

main48533-60011iBJ4#,FJ4#,HJ45196908-197710

9017013028

main90170-13028

9017014187

main90170-14187

9161640820

main91616-40820

9161640832

main91616-40832

9411041200

main94110-41200

9411041600

main94110-41600

9411541200

main94115-41200

9411541600

main94115-41600

9414141200

main94141-41200

9414641200

main94146-41200

9451201200

main94512-01200

9451201300

main94512-01300

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200

9538103025

main95381-03025

40 parts on this diagram · 3 diagrams in section
