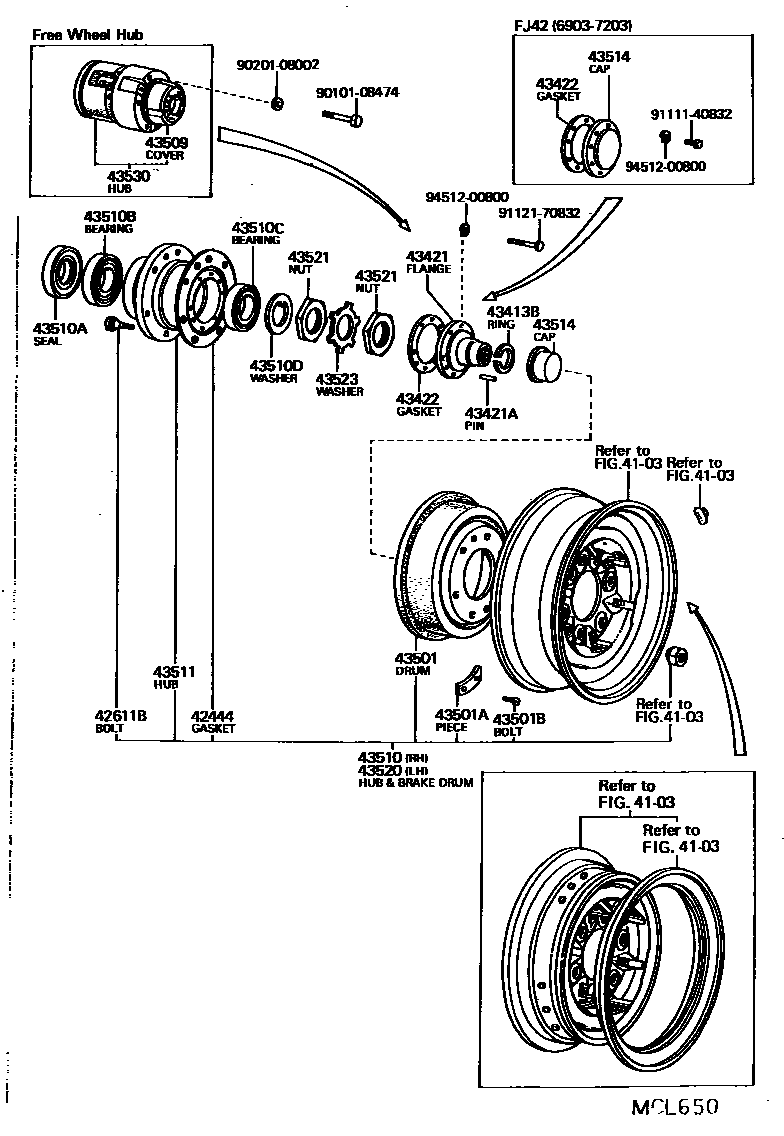

FRONT AXLE HUB

0001 1 0002 1 0003 1

4103

42444GASKET, BRAKE DRUM (FOR FRONT AXLE)

main42444-35010iBJ4#,FJ40,43,45,55,HJ45196903-197509

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02014iBJ4#,FJ4#,55,HJ45196903-197509

main90942-02014iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

main90942-02034iBJ4#,FJ4#,55,HJ45197509-198007

FOR FRONT DRUM BRAKE

sub90942-02052

43413BRING, DRIVE SHAFT SNAP

main90520-28038iBJ4#,FJ40,43,45,55,HJ45196903-197509

main90520-31001iBJ4#,FJ4#,55,HJ45197509-198007

sub90520-31007

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-60010iBJ4#,FJ40,43,45,55,HJ45196903-197509

main43421-60012iBJ4#,FJ4#,55,HJ45197509-197901

main43421-60013iBJ4#,FJ4#,55,HJ45197901-198007

43421APIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90250-07057iBJ4#,FJ40,43,45,55,HJ45196903-198007

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60010iBJ4#,FJ4#,55,HJ45196903-198007

43501DRUM SUB-ASSY, FRONT BRAKE

main43501-60010iBJ4#,FJ4#,55,HJ45196903-197509

main43512-60020iBJ4#,FJ4#,55,HJ45197509-198007

sub43512-60021

sub90113-10003

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01027iBJ4#,FJ4#,55,HJ45196903-197509

30G.

main90937-01028iBJ4#,FJ4#,55,HJ45196903-197509

60G.

main90937-01085iBJ4#,FJ4#,55,HJ45197111-197509

90G.

main90937-01117iBJ4#,FJ4#,55,HJ45197509-198007

10G,10G.FOR DRUM BRAKE

main90937-01118iBJ4#,FJ4#,55,HJ45197509-198007

20G,20G.FOR DRUM BRAKE

main90937-01119iBJ4#,FJ4#,55,HJ45197509-198007

30G,30G.FOR DRUM BRAKE

main90937-01120iBJ4#,FJ4#,55,HJ45197509-198007

40G,40G.FOR DRUM BRAKE

main90937-01121iBJ4#,FJ4#,55,HJ45197509-198007

50G,50G.FOR DRUM BRAKE

main90937-01122iBJ4#,FJ4#,55,HJ45197509-198007

60G,60G.FOR DRUM BRAKE

main90937-01183iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR DISC BRAKE

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007iBJ4#,FJ4#,55,HJ45196903-197509

main90113-10035iBJ4#,FJ4#,55,HJ45197509-198007

43509COVER SUB-ASSY, FREE WHEEL HUB

main43509-60010iBJ4#,FJ4#,55,HJ45197501-197509

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-60010iBJ4#,FJ4#,55,HJ45196903-197509

main43510-60040iBJ4#,FJ4#,55,HJ45197509-198007

sub43510-60041

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001iBJ4#,FJ4#,55,HJ45197610-198007

main90311-62147iBJ4#,FJ4#,55,HJ45197509-197610

sub90311-62001

main90312-55010iBJ4#,FJ4#,55,HJ45196903-197509

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-41002iBJ4#,FJ4#,55,HJ45196903-197509

main90368-49084iBJ4#,FJ4#,55,HJ45197509-198007

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-38003iBJ4#,FJ4#,55,HJ45196903-197509

main90368-45087iBJ4#,FJ4#,55,HJ45197509-198007

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-38013iBJ4#,FJ4#,55,HJ45196903-197509

main90214-42030iBJ4#,FJ4#,55,HJ45197509-198007

43511HUB, FRONT AXLE

main43511-60010iBJ4#,FJ4#,55,HJ45196903-197509

main43511-60012iBJ4#,FJ4#,55,HJ45197509-198007

FOR DRUM BRAKE

sub43502-60030

main43511-60021iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR DISC BRAKE

43514CAP, FRONT HUB GREASE

main43423-60010iBJ4#,FJ40,43,45,55,HJ45196903-197901

main43423-60011iBJ4#,FJ4#,55,HJ45197901-198007

sub43423-35010

main43514-60010iFJ42196903-197203

sub43423-69010

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-60010iBJ4#,FJ4#,55,HJ45196903-197509

main43510-60040iBJ4#,FJ4#,55,HJ45197509-198007

sub43510-60041

43521NUT, FRONT WHEEL ADJUSTING

main43521-60010iBJ4#,FJ4#,55,HJ45196903-197509

main43521-60011iBJ4#,FJ4#,55,HJ45197509-198007

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main43523-60010iFJ4#,55196903-197112

sub90215-38020

main90215-38020iBJ4#,FJ4#,55,HJ45197112-197509

main90215-42025iBJ4#,FJ4#,55,HJ45197509-198007

43530HUB ASSY, FREE WHEEL

main43530-60012iBJ4#,FJ4#,55,HJ45197509-197901

main43530-60901iBJ4#,FJ4#,55,HJ45197501-197509

sub43530-60H00

main43530-69015iBJ4#,FJ4#,55,HJ45197901-198007

sub43530-69018

9010108474

main90101-08474

9020108002

main90201-08002

9111140832

main91111-40832

9112170832

main91121-70832

9451200800

main94512-00800

27 parts on this diagram · 3 diagrams in section
