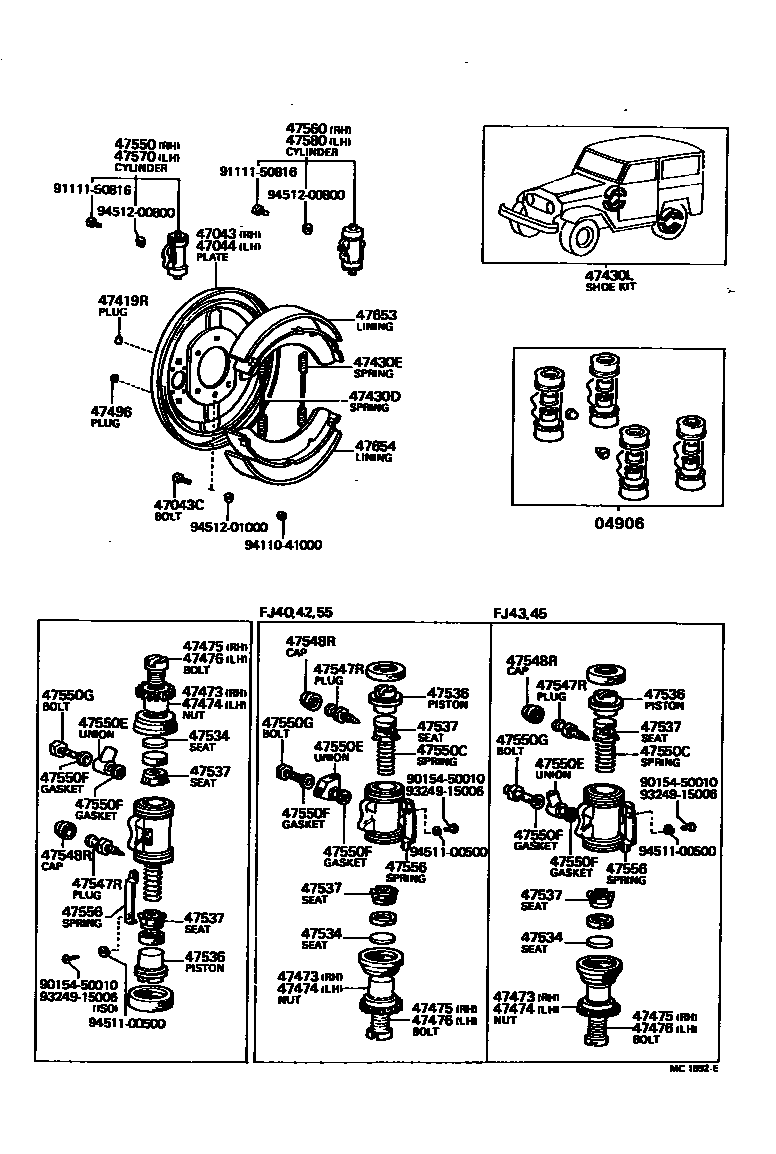

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0005 1 0006 1 0007 1

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35060iFJ43,45,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

main04906-36040iFJ45,HJ45197309-198007

main04906-60011iFJ40,42196903-197309

FOR SINGLE MASTER CYLINDER

main04906-60024iBJ40,FJ40197309-198007

sub04906-60025

main04906-60030iFJ55..LHD197101-197309

FOR TANDEM MASTER CYLINDER

main04906-60032iBJ40,FJ40..EUR197309-198007

main04906-60040iFJ40197101-197309

FOR TANDEM MASTER CYLINDER

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35010iFJ4#,55196903-197109

main47043-60010iBJ4#,FJ4#,55,HJ45197109-197608

main47043-60010iBJ4#,FJ40,43,55..EUR,GEN197608-198007

FOR SEMI FLOATING AXLE

main47043-60021iBJ4#,FJ40,43,55197509-198007

FOR FULL FLOATING AXLE

main47043-60030iFJ45,HJ45197509-197608

main47043-60030iFJ45,HJ45..EUR,GEN197608-198007

FOR SEMI FLOATING AXLE

main47043-60040iFJ45,HJ45197509-198007

FOR FULL FLOATING AXLE

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-35010iBJ4#,FJ4#,55,HJ45196903-198007

FOR SEMI FLOATING AXLE

sub42184-35011

main90101-10061iBJ4#,FJ4#,55,HJ45197509-198007

FOR FULL FLOATING AXLE

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47043-35010iFJ4#,55196903-197109

main47043-60010iBJ4#,FJ40,43,55..EUR,GEN197608-198007

FOR SEMI FLOATING AXLE

main47043-60010iBJ4#,FJ4#,55,HJ45197109-197608

main47043-60021iBJ4#,FJ40,43,55197509-198007

FOR FULL FLOATING AXLE

main47043-60030iFJ45,HJ45197509-197608

main47043-60030iFJ45,HJ45..EUR,GEN197608-198007

FOR SEMI FLOATING AXLE

main47043-60040iFJ45,HJ45197509-198007

FOR FULL FLOATING AXLE

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011iBJ4#,FJ4#,55,HJ45196903-198007

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071iFJ4#,55196903-197109

main90506-26372iBJ4#,FJ4#,55,HJ45197109-198007

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071iFJ4#,55196903-197109

main90506-26372iBJ4#,FJ4#,55,HJ45197109-198007

47430LSHOE KIT, REAR BRAKE

main04494-60010iBJ4#,FJ4#,55,HJ45196903-198007

sub04494-60011

main04494-60020iFJ45,HJ45197509-198007

sub04494-60021

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36071iFJ45,HJ45197802-198007

main47552-25040iFJ45,HJ45197309-197802

main47552-25040iFJ43,45,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

main47552-60010iFJ40,42196903-197309

FOR SINGLE MASTER CYLINDER

main47552-60020iFJ40197101-197309

FOR TANDEM MASTER CYLINDER

main47552-60021iBJ40,FJ40..ARL,GEN197309-198007

main47552-60030iFJ55197101-197309

FOR TANDEM MASTER CYLINDER

main47552-60031iBJ43,FJ43,55197309-198007

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47551-25040iFJ45,HJ45197309-197802

main47551-25040iFJ43,45,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

main47551-60010iFJ40,42196903-197309

FOR SINGLE MASTER CYLINDER

main47551-60020iFJ40..LHD197101-197309

FOR TANDEM MASTER CYLINDER

main47551-60021iBJ40,FJ40197309-198007

main47551-60030iFJ55197101-197309

FOR TANDEM MASTER CYLINDER

main47551-60031iBJ43,FJ43,55197309-198007

main47552-36071iFJ45,HJ45197802-198007

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36021iFJ45,HJ45197802-197906

main47553-60030iFJ45,HJ45197906-198007

main47553-60040iBJ4#,FJ40,43,55197906-198007

main47554-25010iFJ45,HJ45197509-197802

sub47554-25020

main47554-35010iFJ4#,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

sub47554-35020

main47554-35010iFJ45,HJ45197309-197509

sub47554-35020

main47554-60010iFJ40,55197101-197309

FOR TANDEM MASTER CYLINDER

sub47553-60040

main47554-60010iBJ4#,FJ40,43,55197309-197906

sub47553-60040

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47553-25010iFJ45,HJ45197509-197802

sub47553-25020

main47553-35010iFJ45,HJ45197309-197509

sub47553-35020

main47553-35010iFJ4#,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

sub47553-35020

main47553-60010iBJ4#,FJ40,43,55197309-197906

sub47554-60040

main47553-60010iFJ40,43,55197101-197309

FOR TANDEM MASTER CYLINDER

sub47554-60040

main47554-36021iFJ45,HJ45197802-197906

main47554-60030iFJ45,HJ45197906-198007

main47554-60040iBJ4#,FJ40,43,55197906-198007

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20020iBJ4#,FJ4#,55,HJ45197412-197809

main47491-35021iBJ4#,FJ4#,55,HJ45196903-197412

sub47491-36010

main47491-36010iBJ4#,FJ4#,55,HJ45197809-198007

sub47491-36020

47534SEAT, WHEEL CYLINDER PISTON CUP(FOR REAR BRAKE)

main47534-35010iFJ43,45,55196903-197109

main47534-60010iFJ40,42196903-197109

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-35020iFJ40,42196903-197309

FOR SINGLE MASTER CYLINDER

main47531-35030iFJ45,HJ45197309-198007

sub47531-35090

main47531-35030iFJ43,45,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

sub47531-35090

main47531-60020iFJ40..LHD197101-197309

FOR TANDEM MASTER CYLINDER

main47531-60020iBJ40,FJ40197309-198007

main47531-60030iBJ43,FJ43,55197309-198007

main47531-60030iFJ55..LHD197101-197309

FOR TANDEM MASTER CYLINDER

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-30011iFJ45,HJ45197412-198007

main47533-35020iFJ40,42196903-197309

FOR SINGLE MASTER CYLINDER

sub04499-40020

main47533-35030iFJ45,HJ45197309-197412

sub47533-30011

main47533-35030iFJ43,45,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

sub47533-30011

main47533-40020iBJ40,FJ40197309-197412

sub04499-40030

sub04499-60020

main47533-40020iFJ40..LHD197101-197309

FOR TANDEM MASTER CYLINDER

sub04499-40030

sub04499-60020

main47533-60010iFJ55..LHD197101-197309

FOR TANDEM MASTER CYLINDER

sub04499-60010

main47533-60010iBJ43,FJ43,55197309-197412

sub04499-60010

main47533-60011iBJ4#,FJ4#,55,HJ45197412-198007

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iBJ4#,FJ4#,55197109-198007

main47547-35010iFJ4#,55196903-197011

main47547-35011iFJ4#,55197011-197109

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iBJ4#,FJ4#,55196903-198007

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29085iFJ45,HJ45197509-197903

sub47550-29215

main47550-29215iFJ45,HJ45197903-197906

sub47550-25011

main47550-35020iFJ43,45196903-197109

FOR SINGLE MASTER CYLINDER

main47550-60010iFJ40,42196903-197109

FOR SINGLE MASTER CYLINDER

sub47550-60050

main47550-60030iFJ40..LHD197101-197109

FOR SINGLE MASTER CYLINDER

sub47550-60070

main47550-60040iFJ55..LHD197101-197109

FOR SINGLE MASTER CYLINDER

sub47550-60080

main47550-69015iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47550-69065

main47550-69016iFJ45,HJ45197309-197509

main47550-69016iFJ43,45,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47550-69035iFJ40,42197109-197309

FOR SINGLE MASTER CYLINDER

main47550-69045iBJ40,FJ40..ARL,GEN197309-197906

sub47550-69075

main47550-69045iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

sub47550-69075

main47550-69055iFJ55197109-197309

FOR TANDEM MASTER CYLINDER

sub47550-69085

main47550-69055iBJ43,FJ43,55197309-197906

sub47550-69085

main47550-69075iBJ40,FJ40..ARL,GEN197906-198007

main47550-69085iBJ43,FJ43,55;BJ40,FJ40..EUR197906-198007

main47550-69095iFJ45,HJ45197906-198007

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122iFJ4#,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

main90501-08122iFJ45,HJ45197309-198007

main90501-08529iFJ40,55..LHD197101-197309

FOR TANDEM MASTER CYLINDER

sub04499-60030

main90501-08529iBJ4#,FJ40,43,55197309-197412

sub04499-60030

main90501-09735iBJ4#,FJ40,43,55197412-198007

47550EUNION(FOR REAR WHEEL BRAKE CYLINDER)

main90405-09024iFJ4#196903-197109

FOR SINGLE M/C FRONT

main90405-09024iFJ43,45196903-197109

FOR SINGLE M/C REAR

main90405-09042iFJ40,42196903-197109

FOR SINGLE M/C REAR

main90405-10006iFJ55196903-197109

FOR FRONT

main90405-10006iFJ40..LHD197101-197109

FOR TANDEM M/C FRONT

main90405-10006iFJ40,55..LHD197109-197109

FOR TANDEM M/C REAR

main90405-10054iFJ55196903-197109

FOR SINGLE M/C REAR

47550FGASKET(FOR REAR WHEEL BRAKE CYLINDER)

main90430-11100iFJ4#,55196903-197109

47550GBOLT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90401-11017iFJ4#,55196903-197109

FOR SINGLE M/C REAR

main90401-11017iFJ40,42,55196903-197109

FOR FRONT

main90401-11021iFJ43,45196903-197109

FOR REAR

main90401-11043iFJ40,55..LHD197101-197109

FOR TANDEM M/C REAR

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-35010iBJ4#,FJ4#,55,HJ45196903-197802

main47555-36020iBJ4#,FJ4#,55,HJ45197802-198007

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-29015iFJ45,HJ45197509-197903

sub47560-29075

main47560-29075iFJ45,HJ45197903-197906

sub47560-25011

main47560-35010iFJ43,45196903-197109

FOR SINGLE M/C

main47560-60010iFJ40,42196903-197109

FOR SINGLE MASTER CYLINDER

sub47560-60050

main47560-60020iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47560-60060

main47560-60030iFJ40..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47560-60070

main47560-60040iFJ55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47560-60080

main47560-69015iFJ43,45,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47560-69015iFJ45,HJ45197309-197509

main47560-69025iFJ40,42197109-197309

FOR SINGLE MASTER CYLINDER

main47560-69035iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

sub47560-69055

main47560-69035iBJ40,FJ40197309-197906

sub47560-69055

main47560-69045iBJ43,FJ43,55;BJ40,FJ40..EUR197309-197906

sub47560-69065

main47560-69045iFJ55197109-197309

FOR TANDEM MASTER CYLINDER

sub47560-69065

main47560-69055iBJ40,FJ40..ARL,GEN197906-198007

main47560-69065iBJ43,FJ43,55;BJ40,FJ40..EUR197906-198007

main47560-69075iFJ45,HJ45197906-198007

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-29015iFJ45,HJ45197509-197903

sub47570-29075

main47570-29075iFJ45,HJ45197903-197906

sub47570-25011

main47570-35010iFJ43,45196903-197109

FOR SINGLE MASTER CYLINDER

main47570-60010iFJ40,42196903-197109

FOR SINGLE MASTER CYLINDER

sub47570-60070

main47570-60030iFJ40..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47570-60090

main47570-60040iFJ55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47570-60100

main47570-69015iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47570-69055

main47570-69016iFJ43,45,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47570-69016iFJ45,HJ45197309-197509

main47570-69025iFJ40,42197109-197309

FOR SINGLE MASTER CYLINDER

sub47570-60011

main47570-69035iBJ40,FJ40..ARL,GEN197309-197906

sub47570-69065

main47570-69035iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

sub47570-69065

main47570-69045iFJ43,55197109-197309

FOR TANDEM MASTER CYLINDER

sub47570-69075

main47570-69045iBJ43,FJ43,55197309-197906

sub47570-69075

main47570-69065iBJ40,FJ40..ARL,GEN197906-198007

main47570-69075iBJ43,FJ43,55;BJ40,FJ40..EUR197906-198007

main47570-69085iFJ45,HJ45197906-198007

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-29015iFJ45,HJ45197509-197903

sub47580-29075

main47580-29075iFJ45,HJ45197903-197906

sub47580-25011

main47580-35010iFJ43,45196903-197109

FOR SINGLE MASTER CYLINDER

main47580-60010iFJ40,42196903-197109

FOR SINGLE MASTER CYLINDER

sub47580-60050

main47580-60020iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47580-60060

main47580-60030iFJ40..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47580-60070

main47580-60040iFJ55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47580-60080

main47580-69015iFJ45,HJ45197309-197509

main47580-69015iFJ43,45,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47580-69025iFJ40,42197109-197309

FOR SINGLE MASTER CYLINDER

main47580-69035iBJ40,FJ40..ARL,GEN197309-197906

sub47580-69055

main47580-69035iFJ40197109-197309

FOR TANDEM MASTER CYLINDER

sub47580-69055

main47580-69045iFJ43,55197109-197309

FOR TANDEM MASTER CYLINDER

sub47580-69065

main47580-69045iBJ43,FJ43,55197309-197906

sub47580-69065

main47580-69055iBJ40,FJ40..ARL,GEN197906-198007

main47580-69065iBJ43,FJ43,55;BJ40,FJ40..EUR197906-198007

main47580-69075iFJ45,HJ45197906-198007

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-35010iFJ4#,55196903-197007

main47651-60010iBJ4#,FJ4#,55,HJ45197007-198007

main47651-60020iFJ45,HJ45197509-198007

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-35010iFJ4#,55196903-197007

main47651-60010iBJ4#,FJ4#,55,HJ45197007-198007

main47651-60020iFJ45,HJ45197509-198007

9015450010

main90154-50010

9111150816

main91111-50816

9324915006

main93249-15006

9411041000

main94110-41000

9451100500

main94511-00500

9451200800

main94512-00800

9451201000

main94512-01000

36 parts on this diagram · 5 diagrams in section
