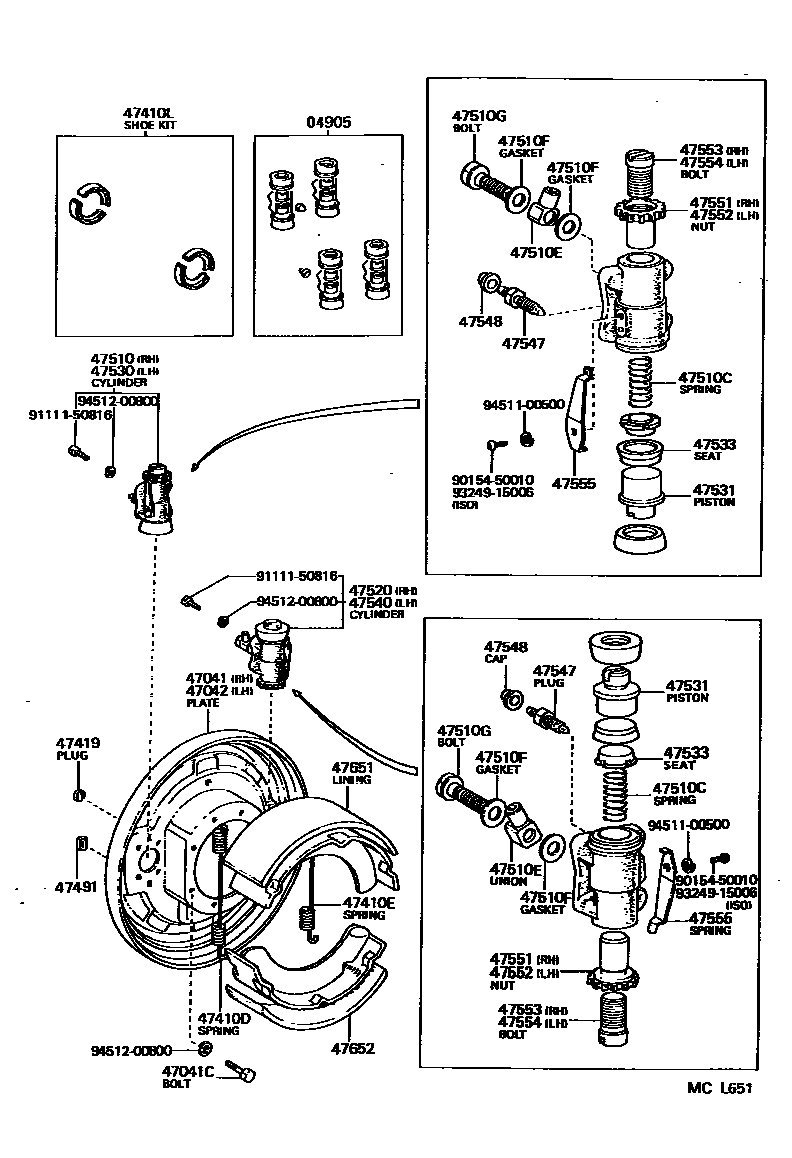

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-35040iFJ4#,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

main04905-36030iBJ4#,FJ4#,55,HJ45197309-197802

main04905-60020iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-60021iFJ4#,55196903-197109

sub47041-60030

main47041-60022iBJ4#,FJ4#,55,HJ45197109-197509

main47041-60040iBJ4#,FJ4#,55,HJ45197509-198007

sub47041-60050

sub91651-60614

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90101-10439×16iBJ4#,FJ4#,55,HJ45197509-198007

*14-1.25PX28-20

main90103-08003×16iBJ4#,FJ4#,55,HJ45196903-197509

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47041-60021iFJ4#,55196903-197109

sub47041-60030

main47041-60022iBJ4#,FJ4#,55,HJ45197109-197509

main47041-60040iBJ4#,FJ4#,55,HJ45197509-198007

sub47041-60050

sub91651-60614

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26071×2iFJ4#,55196903-197109

main90506-26372×2iBJ4#,FJ4#,55,HJ45197109-198007

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26071×2iFJ4#,55196903-197109

main90506-26372×2iBJ4#,FJ4#,55,HJ45197109-198007

47410LSHOE KIT, FRONT BRAKE

main04494-60010iBJ4#,FJ4#,55,HJ45196903-197509

sub04494-60011

main04494-60020iBJ4#,FJ4#,55,HJ45197509-198007

sub04494-60021

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011×4iBJ4#,FJ4#,55,HJ45196903-198007

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020×4iBJ4#,FJ4#,55,HJ45197412-197809

main47491-35021×4iBJ4#,FJ4#,55,HJ45196903-197412

main47491-36010×4iBJ4#,FJ4#,55,HJ45197809-198007

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-29085iBJ4#,FJ4#,55,HJ45197509-197802

main47510-39126iBJ4#,FJ4#,55,HJ45197802-197906

main47510-60020iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

sub47510-60050

main47510-60030iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47510-60060

main47510-60040iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47510-60070

main47510-69025iFJ4#,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47510-69035iBJ4#,FJ4#,55,HJ45197309-197509

main47510-69055iBJ4#,FJ4#,55,HJ45197906-198007

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122×4iFJ4#,55,HJ45196903-197309

main90501-10759×4iBJ4#,FJ4#,55,HJ45197412-198007

main90502-10052×4iBJ4#,FJ4#,55,HJ45197309-197412

sub04499-25010

47510EUNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90405-09024×4iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

main90405-10006×4iFJ40..LHD197101-197109

FOR TANDEM MASTER CYLINDER

47510FGASKET(FOR FRONT WHEEL BRAKE CYLINDER)

main90430-11100×8iFJ4#,55196903-197109

47510GBOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90401-11017×8iFJ4#,55196903-197109

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-29085iBJ4#,FJ4#,55,HJ45197509-197802

main47510-39126iBJ4#,FJ4#,55,HJ45197802-197906

main47510-60020iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

sub47510-60050

main47510-60030iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47510-60060

main47510-60040iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47510-60070

main47510-69025iFJ4#,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47510-69035iFJ40,43,55197301-197309

FOR TANDEM MASTER CYLINDER

main47510-69055iBJ4#,FJ4#,55,HJ45197906-198007

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-29085iBJ4#,FJ4#,55,HJ45197509-197802

main47530-39126iBJ4#,FJ4#,55,HJ45197802-197906

main47530-60010iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

sub47530-60040

main47530-60020iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47530-60050

main47530-60030iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47530-60060

main47530-69016iFJ4#,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47530-69025iBJ4#,FJ4#,55,HJ45197309-197509

main47530-69045iBJ4#,FJ4#,55,HJ45197906-198007

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-35030×4iFJ4#,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

sub47531-35090

main47531-60010×4iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-25010×4iBJ4#,FJ4#,55,HJ45197412-198007

main47533-26010×4iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub04499-25010

main47533-35030×4iFJ4#,55,HJ45196903-197309

FOR SINGLE MASTER CYLINDER

sub47533-30011

main47533-36020×4iBJ4#,FJ4#,55,HJ45197309-197412

sub04499-25010

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-29085iBJ4#,FJ4#,55,HJ45197509-197802

main47530-39126iBJ4#,FJ4#,55,HJ45197802-197906

main47530-60010iFJ4#196903-197109

FOR SINGLE MASTER CYLINDER

sub47530-60040

main47530-60020iFJ55196903-197109

FOR SINGLE MASTER CYLINDER

sub47530-60050

main47530-60030iFJ40,55..LHD197101-197109

FOR TANDEM MASTER CYLINDER

sub47530-60060

main47530-69016iFJ4#,55,HJ45197109-197309

FOR SINGLE MASTER CYLINDER

main47530-69025iFJ40,55197109-197301

FOR TANDEM MASTER CYLINDER

main47530-69045iBJ4#,FJ4#,55,HJ45197906-198007

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×6iBJ4#,FJ4#,55,HJ45197109-198007

main47547-35010×4iFJ4#,55196903-197011

main47547-35011×4iFJ4#,55197011-197109

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×6iBJ4#,FJ4#,55,HJ45196903-198007

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-36041×2iBJ4#,FJ4#,55,HJ45197802-198007

main47552-25030×2iBJ4#,FJ4#,55,HJ45197309-197802

main47552-35010×2iFJ4#,55,HJ45196903-197309

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47551-25030×2iBJ4#,FJ4#,55,HJ45197309-197802

main47551-35010×2iFJ4#,55,HJ45196903-197309

main47552-36041×2iBJ4#,FJ4#,55,HJ45197802-198007

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36021×2iBJ4#,FJ4#,55,HJ45197802-198007

main47554-25010×2iBJ4#,FJ4#,55,HJ45197509-197802

sub47554-25020

main47554-35010×2iBJ4#,FJ4#,55,HJ45196903-197509

sub47554-35020

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47553-25010×2iBJ4#,FJ4#,55,HJ45197509-197802

sub47553-25020

main47553-35010×2iBJ4#,FJ4#,55,HJ45196903-197509

sub47553-35020

main47553-60030×2iBJ4#,FJ4#,55,HJ45197906-198007

main47554-36021×2iBJ4#,FJ4#,55,HJ45197802-197906

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-35010×4iBJ4#,FJ4#,55,HJ45196903-197802

main47555-36020×4iBJ4#,FJ40,43,55,HJ45197802-198007

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-35010×2iFJ4#,55196903-197007

main47651-60010×2iBJ4#,FJ4#,55,HJ45197007-197509

main47651-60020×2iBJ4#,FJ4#,55,HJ45197509-198007

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-35010×2iFJ4#,55196903-197007

main47651-60010×2iBJ4#,FJ4#,55,HJ45197007-197509

main47651-60020×2iBJ4#,FJ4#,55,HJ45197509-198007

9015450010

main90154-50010

9111150816

main91111-50816

9324915006

main93249-15006

9451100500

main94511-00500

9451200800

main94512-00800

33 parts on this diagram · 3 diagrams in section
