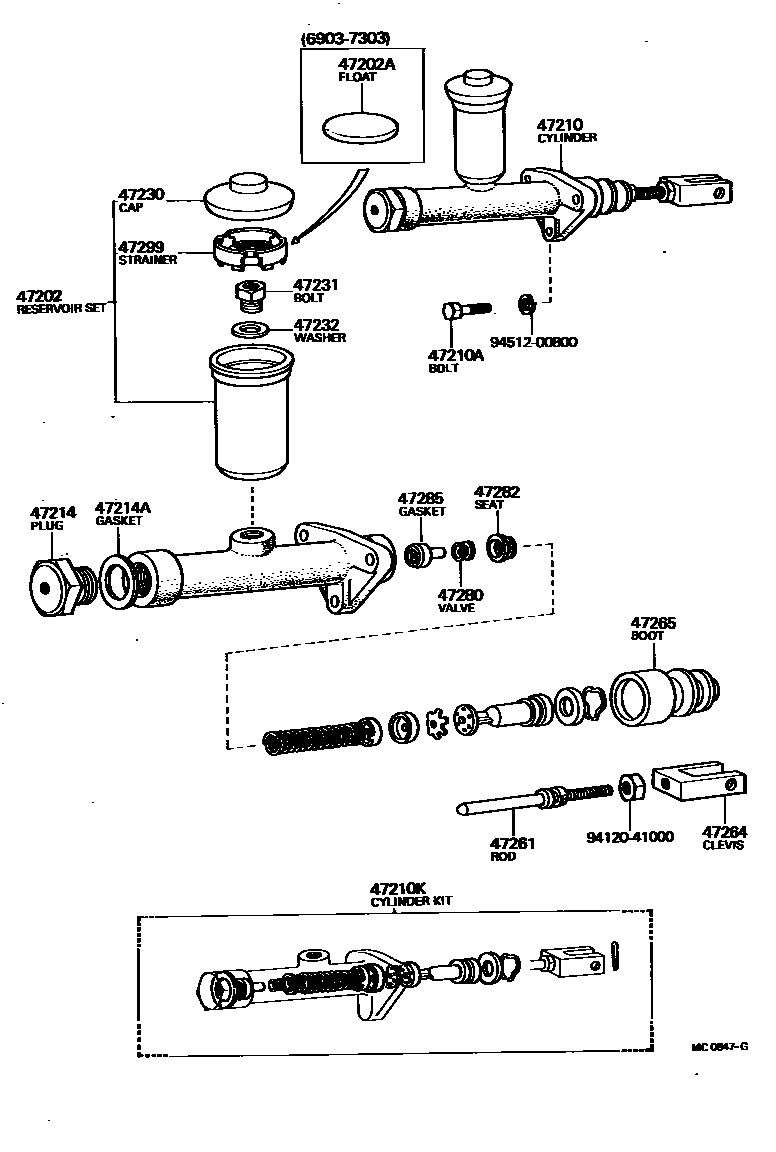

BRAKE MASTER CYLINDER

0001 1 0002 1 0004 1 0006 1 0007 1 0009 1 0011 1 0013 1 0014 1 0016 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-12090iFJ45,HJ45197309-197501

FOR TANDEM MASTER CYLINDER

main47202-20010iBJ4#,FJ4#,55,HJ45..EUR,GEN197303-197608

FOR SINGLE MASTER CYLINDER

main47202-20030iBJ4#,FJ40,43,55197303-197501

FOR TANDEM MASTER CYLINDER

sub47202-12090

main47202-22020iFJ40,55..LHD197101-197303

FOR TANDEM MASTER CYLINDER

sub47202-20030

main47202-30010iFJ4#,55,HJ45196903-197303

FOR SINGLE MASTER CYLINDER

sub31402-30040

main47202-35020iBJ40,FJ40..GEN197608-197709

FOR SINGLE MASTER CYLINDER

main47202-60010iBJ4#,FJ45,55,HJ45..EUR,GEN197501-198007

FOR TANDEM MASTER CYLINDER

47202AFLOAT, MASTER CYLINDER RESERVOIR

main31426-22011iFJ40,55197101-197303

FOR TANDEM MASTER CYLINDER

main31426-30011iFJ4#,55,HJ45196903-197303

FOR SINGLE MASTER CYLINDER

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47200-35011iFJ4#196903-197109

SINGLE MASTER CYLINDER

main47200-35021iBJ4#,FJ4#,55,HJ45196903-197501

SINGLE MASTER CYLINDER

sub47200-60050

main47200-60050iBJ4#,FJ4#,55,HJ45..EUR,GEN197501-197709

SINGLE MASTER CYLINDER

main47201-60010iBJ4#,FJ40,43,55197101-197501

TANDEM MASTER CYLINDER

main47201-60020iFJ45,HJ45197309-197501

FOR TANDEM MASTER CYLINDER

main47201-60030iBJ4#,FJ40,43,55197501-197904

sub47201-60031

main47201-60031iBJ4#,FJ40,43,55..EUR,GEN197904-198007

FOR FRONT DRUM BRAKE

main47201-60040iFJ45,HJ45197501-198007

main47201-60050iBJ4#..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

main47201-60080iBJ40,FJ40,55..ARL197904-198007

main47201-60090iFJ45..ARL;HJ45..PIC..ARL197904-198007

main47201-60180iFJ40,43..LHD..GEN197912-198007

FOR FRONT DISC BRAKE

47210ABOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING)

main91111-40825iBJ4#,FJ4#,55,HJ45196903-197709

sub91111-50825

47210KCYLINDER KIT, BRAKE MASTER

main04471-35014iBJ4#,FJ4#,55,HJ45196903-197501

FOR SINGLE MASTER CYLINDER

main04471-60010iBJ4#,FJ4#,55,HJ45..EUR,GEN197501-197709

FOR SINGLE MASTER CYLINDER

main04493-35010iFJ40,55..LHD197101-197501

FOR TANDEM MASTER CYLINDER

main04493-60010iFJ45,HJ45197309-197501

FOR TANDEM MASTER CYLINDER

main04493-60020iBJ4#,FJ40,43,55197501-198007

FOR TANDEM M/C,FR.DRUM BRAKE

main04493-60030iFJ45,HJ45197501-198007

main04493-60040iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

47214PLUG, MASTER CYLINDER

main47214-25011iFJ4#196903-197109

main47214-35011iBJ4#,FJ4#,55,HJ45197109-197501

FOR SINGLE MASTER CYLINDER

main47214-35011iFJ55196903-197109

main47214-36030iFJ45,HJ45197309-197709

FOR TANDEM MASTER CYLINDER

47214AGASKET(FOR MASTER CYLINDER CAP)

main90430-32052iBJ4#,FJ4#,55,HJ45196903-197501

FOR SINGLE MASTER CYLINDER

main90430-34017iFJ45197309-197709

FOR TANDEM MASTER CYLINDER

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12011iBJ4#,FJ4#,55,HJ45..EUR,GEN196903-197608

FOR SINGLE MASTER CYLINDER

sub31440-35010

main47230-12020iFJ45,HJ45197309-197501

FOR TANDEM MASTER CYLINDER

main47230-20030iFJ40,43..RHD;FJ40,43..EUR197501-198007

main47230-20040iBJ40,FJ40..GEN197608-197709

FOR SINGLE MASTER CYLINDER

main47230-22010iFJ40,55197101-197501

FOR TANDEM MASTER CYLINDER

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iBJ4#,FJ4#,55,HJ45197306-198007

main47231-35010iFJ4#,55,HJ45196903-197306

sub47231-30010

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iHJ45..PIC..ARL;BJ40,FJ40,45,55..ARL197306-198007

main47232-35010iFJ4#,55,HJ45196903-197306

sub47232-30010

47261ROD, MASTER CYLINDER PUSH

main47261-35020iBJ4#,FJ4#,55,HJ45196903-197709

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-35010iBJ4#,FJ4#,55,HJ45196903-198007

FOR FRONT DRUM BRAKE

main47264-60010iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

47265BOOT, MASTER CYLINDER

main47265-20050iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

main47265-35011iBJ4#,FJ4#,55,HJ45..EUR,GEN197501-197709

FOR SINGLE MASTER CYLINDER

main47265-35011iBJ4#,FJ4#,55,HJ45196903-197501

main47265-35020iBJ4#,FJ40,43,55197501-197904

FOR TANDEM MASTER CYLINDER

main47265-35030iBJ4#,FJ40,43,55197904-198007

FOR FRONT DRUM BRAKE

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-10011iFJ40,55..LHD197101-197306

FOR TANDEM MASTER CYLINDER

sub47280-30010

main47280-20020iBJ4#,FJ40,43..LHD..GEN197909-198007

FOR FRONT DISC BRAKE

sub47280-20030

main47280-25010iBJ40,FJ40..GEN197501-197709

FOR SINGLE MASTER CYLINDER

main47280-30010iFJ40,43,55197306-197501

FOR TANDEM MASTER CYLINDER

main47280-35010iBJ4#,FJ4#,55,HJ45197501-198007

FOR TANDEM FRONT DRUM BRAKE

main47281-55010iBJ4#,FJ4#,55,HJ45196903-197501

FOR SINGLE MASTER CYLINDER

sub47280-25010

47282SEAT, OUTLET CHECK VALVE SEAT

main47282-55010iBJ4#,FJ4#,55,HJ45196903-197501

sub47280-25010

47285GASKET, OUTLET CHECK VALVE SEAT

main47285-35011iBJ4#,FJ4#,55,HJ45196903-197501

sub47280-25010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-22010iBJ4#,FJ4#,55,HJ45197303-197709

FOR SINGLE MASTER CYLINDER

main47299-22020iBJ4#,FJ4#,55,HJ45197303-198007

FOR TANDEM MASTER CYLINDER

9412041000

main94120-41000

9451200800

main94512-00800

19 parts on this diagram · 10 diagrams in section
