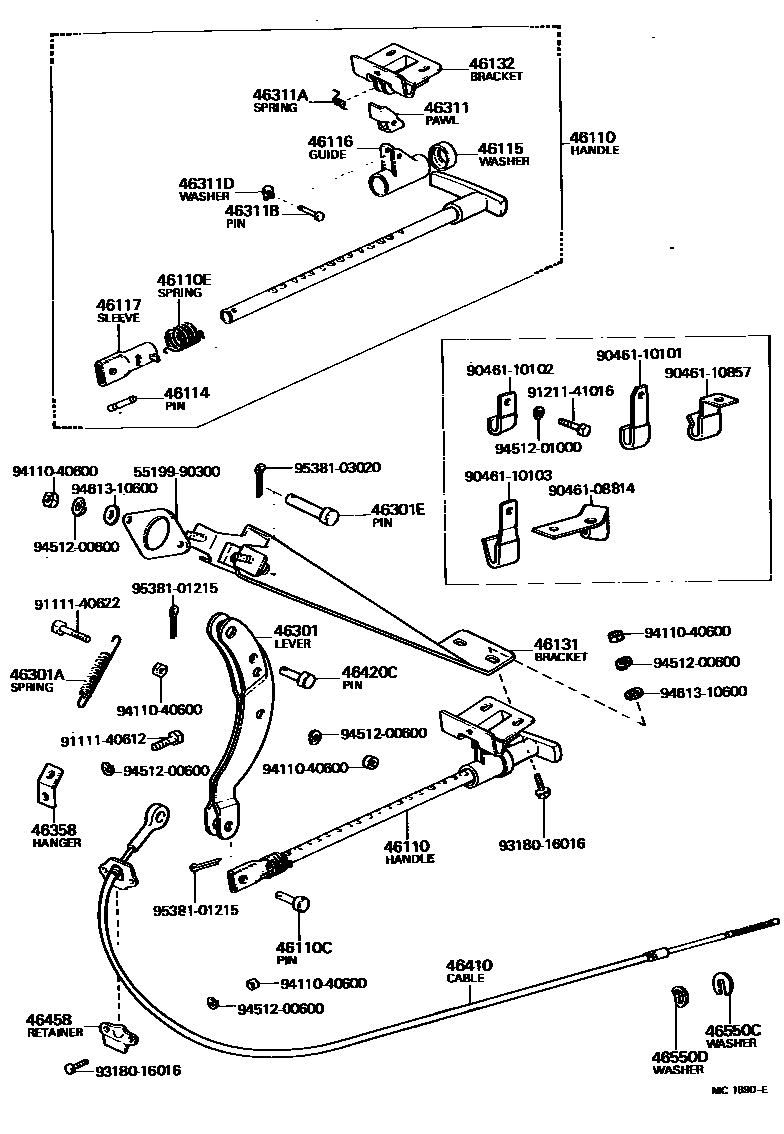

PARKING BRAKE & CABLE

0001 1 0002 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46120-60011iFJ40..RHD..GEN196903-197709

FOR SINGLE MASTER CYLINDER

main46120-60021iBJ40,FJ40..LHD..GEN196903-197709

FOR SINGLE MASTER CYLINDER

main46120-60031iFJ55..RHD..(EUR,GEN)196903-197608

FOR SINGLE MASTER CYLINDER

main46120-60041iFJ55..LHD196903-197608

FOR SINGLE MASTER CYLINDER

main46120-60050iFJ40..LHD197101-197901

FOR TANDEM MASTER CYLINDER

main46120-60060iFJ55..LHD197101-198007

FOR TANDEM MASTER CYLINDER

main46120-60070iFJ4#..RHD197109-197901

FOR TANDEM MASTER CYLINDER

main46120-60080iFJ55..RHD197109-198007

FOR TANDEM MASTER CYLINDER

main46120-60090iFJ55..ARL197901-198007

main46210-60020iBJ4#,FJ4#,HJ45..LHD197901-198007

main46210-60030iBJ4#,FJ4#,HJ45..RHD197901-198007

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08038iBJ4#,FJ4#,55,HJ45196903-197801

ID=1.6

sub90240-08094

main90240-08094iFJ55197801-198007

ID=2.5

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iBJ4#,FJ40,43,45,55,HJ45..RHD196903-198007

main90508-14039iBJ4#,FJ4#,55,HJ45..LHD196903-198007

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iBJ4#,FJ4#,55,HJ45196903-198007

46115WASHER, PARKING BRAKE PLUNGER

main46115-30010iBJ4#,FJ4#,55,HJ45196903-198007

46116GUIDE, PARKING BRAKE PLUNGER

main46116-30010iBJ4#,FJ4#,55,HJ45196903-198007

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iBJ4#,FJ40,43,45,55,HJ45..RHD196903-198007

main46117-30020iFJ55..LHD196903-198007

main46117-60010iFJ55..ARL197901-198007

46131BRACKET SUB-ASSY, PARKING BRAKE

main46132-60010iFJ55196903-198007

main55107-60011iFJ4#196903-197109

main55107-90300iBJ4#,FJ4#,HJ45197109-197709

main55107-90301iFJ4#..LHD197501-197709

main55107-90302iBJ4#,FJ4#,HJ45197709-197901

46132BRACKET, PARKING BRAKE PLUNGER, NO.2

main46131-60011iBJ4#,FJ4#,HJ45..EUR,GEN196903-197709

FOR SINGLE MASTER CYLINDER

main46131-60020iFJ55..EUR,GEN196903-197608

FOR SINGLE MASTER CYLINDER

main46131-60030iFJ4#197101-197901

FOR TANDEM MASTER CYLINDER

main46131-60040iFJ55197101-198007

FOR TANDEM MASTER CYLINDER

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-30010iFJ55..RHD196903-198007

main46307-60010iFJ55..LHD196903-198007

main46307-60021iFJ4#..LHD197501-197603

main46307-60022iFJ4#..LHD197603-197901

main46307-60030iBJ4#,HJ45;FJ4#..RHD197606-197709

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-12023iBJ4#,FJ4#,HJ45196903-197901

main90506-18055iFJ55196903-198007

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-12001iBJ4#,FJ4#,HJ45197501-197901

main90240-12043iBJ4#,FJ4#,HJ45196903-197709

main90240-12045iFJ55..RHD196903-198007

46311PAWL, PARKING BRAKE

main46311-30020iBJ40,FJ40..GEN196903-197709

FOR SINGLE MASTER CYLINDER

main46311-60010iFJ55197901-198007

main46311-60010iFJ40,55..LHD197101-197901

FOR TANDEM MASTER CYLINDER

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iFJ55196903-198007

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iBJ4#,FJ4#,55,HJ45196903-198007

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iBJ4#,FJ4#,55,HJ45196903-198007

46358HANGER, PULL ROD RETURN SPRING

main46358-60010iFJ4#,55,HJ45196903-198007

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60010iFJ40,43,45..RHD196903-197007

L=1566,FOR 3-SPEED T/M

main46410-60011iFJ40,43,45..RHD197007-197209

L=1568,FOR 3-SPEED T/M

main46410-60011iBJ4#,FJ4#..RHD197209-197709

main46410-60012iBJ4#,FJ4#..RHD197709-197901

main46410-60013iBJ4#,FJ4#,HJ45..RHD197901-198007

main46410-60020iFJ4#..LHD196903-197007

L=1676,FOR 3-SPEED T/M

main46410-60021iFJ4#..LHD197007-197501

L=1643,FOR 3-SPEED T/M

main46410-60022iFJ4#..LHD..3F197501-197603

main46410-60023iFJ4#..LHD..3F197603-197901

main46410-60024iBJ4#,FJ4#,HJ45..LHD197901-198007

main46410-60031iFJ55196903-197501

L=1131,FOR 3-SPEED T/M

main46410-60031iFJ55..RHD..3F197501-198007

L=1131

main46410-60041iFJ55196903-197501

L=1164,FOR 4-SPEED T/M

main46410-60041iFJ55..LHD197209-198007

L=1164

main46410-60050iBJ4#,FJ4#..LHD197110-197709

L=1728,FOR 4-SPEED T/M

main46410-60060iHJ45..RHD197204-197709

L=1518

main46410-60061iHJ45..RHD197709-197901

main46410-60070iHJ45..LHD197204-197709

L=1598

main46410-60071iHJ45..LHD197709-197901

main46410-60091iFJ4#..LHD..4F197501-197603

main46410-60092iBJ4#,FJ4#..LHD..4F197603-197901

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08038iFJ55196903-198007

sub90240-08094

46458RETAINER, CABLE

main46458-60010iFJ4#196903-197007

46550SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

main46550-35011iFJ4#,55196903-197009

sub46550-35012

main46550-35012iFJ4#,55197009-197202

sub46550-60010

main46550-35013iBJ4#,FJ4#,55,HJ45197202-197711

sub46550-60011

main46550-60011iBJ4#,FJ4#,55,HJ45197711-198007

sub46550-35014

46550CWASHER, TYPE C(FOR PARKING BRAKE SHOE)

main90213-04004iFJ4#,55,HJ45196903-197211

ID= 4

main90213-06013iBJ4#,FJ4#,55,HJ45197211-198007

ID=6

main90213-07006iBJ4#,FJ4#,55,HJ45196903-198007

ID= 7.5

main90213-09005iBJ4#,FJ4#,55,HJ45196903-198007

ID=11.5

46550DWASHER, WAVE(FOR PARKING BRAKE SHOE)

main90206-08024iBJ4#,FJ4#,55,HJ45196903-198007

5519990300COVER, DASH PANEL COMPUTER

main55199-90300

9046108814

main90461-08814

9046110101

main90461-10101

9046110102

main90461-10102

9046110103

main90461-10103

9046110857

main90461-10857

9111140612

main91111-40612

9111140622

main91111-40622

9121141016

main91211-41016

9318016016

main93180-16016

9411040600

main94110-40600

9451200600

main94512-00600

9451201000

main94512-01000

9461310600

main94613-10600

9538101215

main95381-01215

9538103020

main95381-03020

39 parts on this diagram · 9 diagrams in section
