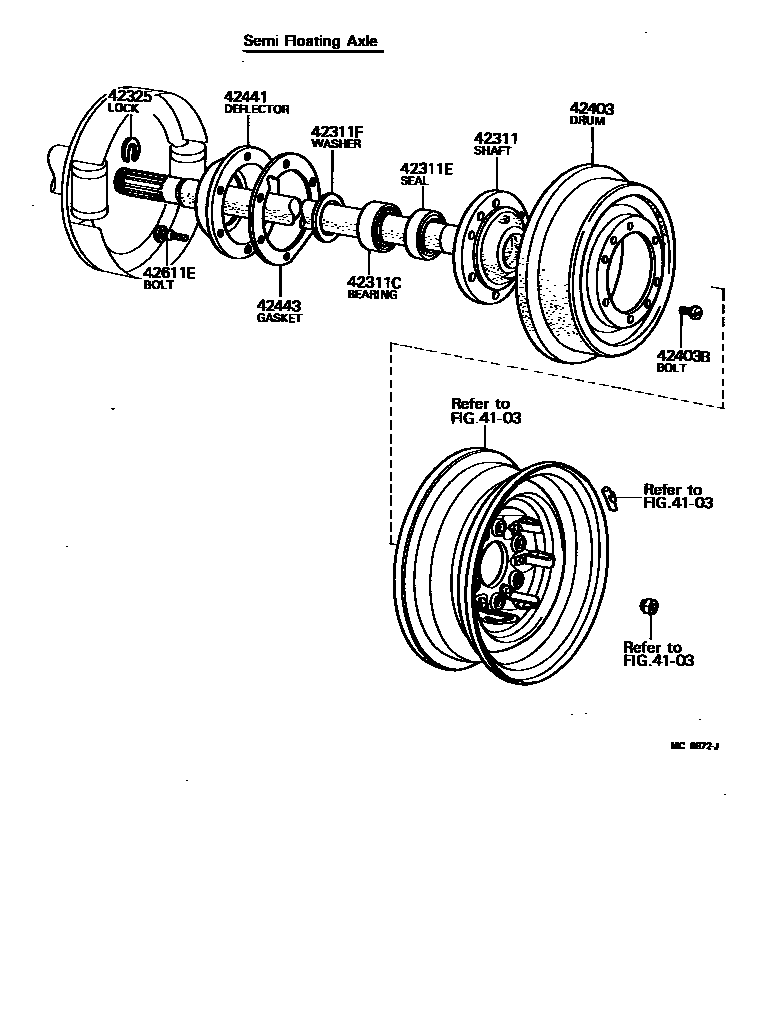

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

4103

42311SHAFT, REAR AXLE

main42311-60021iFJ4#,55,HJ45196903-197308

FOR RH.

sub42311-60022

sub90311-47048

sub90365-47013

main42311-60022iBJ4#,FJ4#,55,HJ45..EUR,GEN197308-198007

RH.FOR SEMI FLOATING AXLE

sub42311-60060

main42311-60051iBJ4#,FJ4#,55,HJ45197509-197901

RH.FOR FULL FLOATING AXLE

main42311-60052iBJ4#,FJ4#,55,HJ45197901-198007

RH.FOR FULL FLOATING AXLE

sub42311-60053

sub90310-36003

main42312-60011iFJ4#,55,HJ45196903-197308

FOR LH.

sub42312-60012

sub90311-47048

sub90365-47013

main42312-60012iBJ4#,FJ4#,55,HJ45..EUR,GEN197308-198007

LH.FOR SEMI FLOATING AXLE

sub42312-60070

main42312-60041iBJ4#,FJ4#,55,HJ45197509-197901

LH.FOR FULL FLOATING AXLE

main42312-60042iBJ4#,FJ4#,55,HJ45197901-198007

LH.FOR FULL FLOATING AXLE

sub42312-60043

sub90310-36003

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47005iFJ4#,55,HJ45196903-197308

sub90365-47007

main90365-47013iBJ4#,FJ4#,55,HJ45197308-198007

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001iBJ4#,FJ4#,55,HJ45197901-198007

FOR FULL FLOATING AXLE

main90311-38146iBJ4#,FJ4#,55,HJ45197509-197901

FOR FULL FLOATING AXLE

main90311-47001iBJ4#,FJ4#,55,HJ45197411-198007

FOR SEMI FLOATING AXLE

main90311-47029iFJ4#,55,HJ45196903-197308

main90311-47048iBJ4#,FJ4#,55,HJ45197308-197411

sub90311-47001

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-48132iFJ4#,55,HJ45196903-197308

42325LOCK, REAR AXLE SHAFT

main42325-55010iBJ4#,FJ4#,55,HJ45196903-198007

42403DRUM SUB-ASSY, REAR BRAKE

main43501-60010iBJ4#,FJ4#,55,HJ45196903-198007

main43512-60020iFJ45,HJ45197509-198007

sub43512-60021

sub90113-10003

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007iBJ4#,FJ40,43,55196903-198007

main90113-10035iFJ45,HJ45197509-198007

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010iBJ4#,FJ4#,55,HJ45..EUR,GEN196903-198007

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020iBJ4#,FJ4#,55,HJ45196903-198007

FOR SEMI FLOATING AXLE

main43436-60011iBJ4#,FJ4#,55,HJ45197509-198007

FOR FULL FLOATING AXLE

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02014iBJ4#,FJ4#,55,HJ45196903-198007

main90942-02034iFJ45,HJ45197509-198007

sub90942-02052

11 parts on this diagram · 3 diagrams in section
