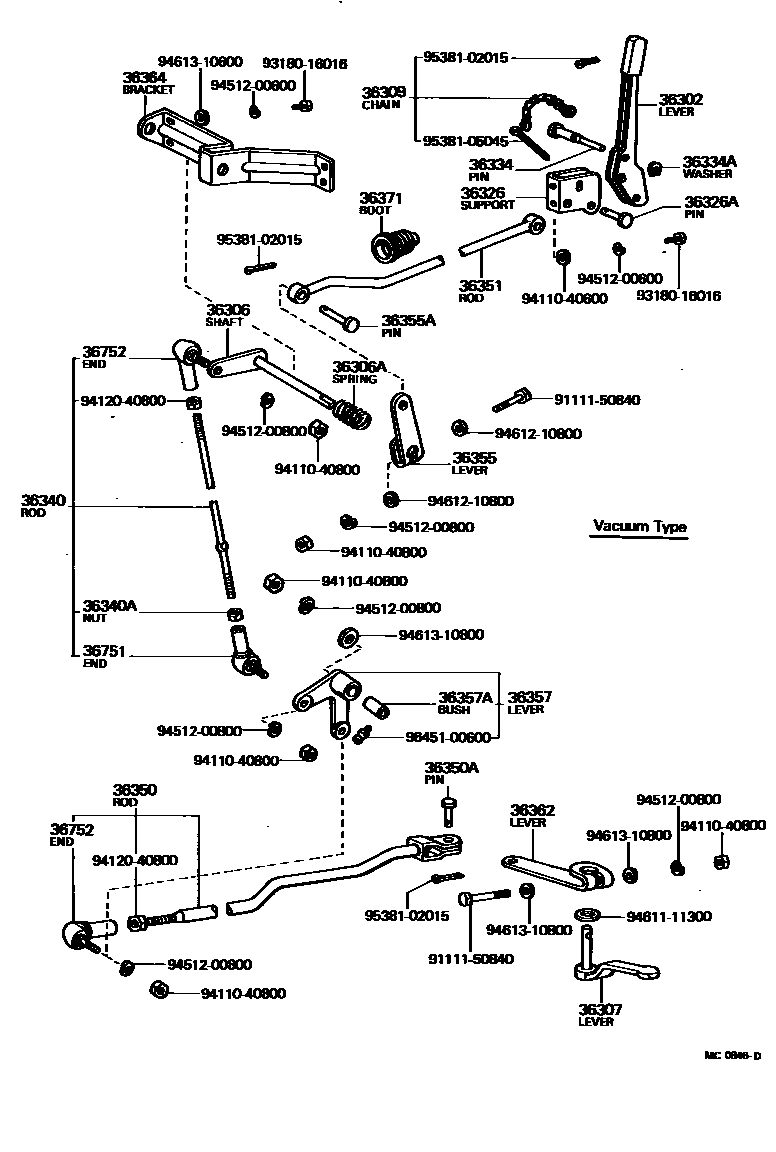

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1 0004 1 0007 1 0008 1

36302LEVER SUB-ASSY, TRANSFER HIGH & LOW SHIFT

main36302-60010iFJ40,43,45..RHD196903-197209

main36302-60020iFJ55196903-197209

main36322-60040iBJ4#,FJ4#,55197209-197502

sub36322-60041

main36322-60041iBJ4#,FJ4#,55..ARL,GEN197502-197901

main36322-60050iBJ4#,FJ4#,55197901-197909

36306SHAFT SUB-ASSY, CONTROL

main36306-60010iFJ40,43,45..RHD196903-197102

main36306-60011iFJ40,43,45..RHD197102-197209

main36306-60030iFJ55196903-197209

main36306-60050iFJ40,43,45..LHD196903-197102

main36306-60051iFJ40,43,45..LHD197102-197209

36306ASPRING, COMPRESSION

main90501-18060iFJ40,43,45196903-197102

main90501-18099iFJ40,43,45197102-197209

36307LEVER SUB-ASSY, HIGH & LOW SHIFT INNER

main36307-60010iBJ4#,FJ40,43,45,55,HJ45196903-197504

FOR VACUUM OR DIRECT TYPE

main36307-60011iBJ4#,FJ4#,55,HJ45197504-198007

FOR DIRECT TYPE

main36307-60020iBJ4#,FJ4#,55197209-197909

FOR MAGNET TYPE

36309CHAIN SUB-ASSY

main36309-60010iFJ40,43,45..RHD196903-197209

36326SUPPORT, TRANSFER SHIFT LEVER

main36304-60010iFJ55196903-197209

main36326-60030iFJ40,43,45..RHD196903-197209

36326APIN, W/HOLE (FOR TRANSFER SHIFT LEVER SUPPORT)

main90240-08029iFJ40,43,45..RHD196903-197209

36334PIN, SHIFT LEVER, NO.1

main36334-60010iFJ40,43,45..RHD196903-197209

FOR VACUUM TYPE

main36334-60020iBJ4#,FJ40,43,45,55,HJ45196903-197504

FOR DIRECT TYPE

main36334-60030iFJ40,43,45..LHD196903-197209

FOR VACUUM TYPE

36334AWASHER, TYPE C (FOR SHIFT LEVER PIN)

main90213-07006iFJ40,43,45..RHD196903-197209

36340ROD ASSY, HIGH AND LOW SHIFT, NO.2

main36340-60010iFJ40,43,45196903-197209

main36340-60020iFJ55196903-197209

36340ANUT (FOR HIGH AND LOW SHIFT ROD)

main90170-08052iFJ40,43,45,55196903-197209

36350ROD ASSY, HIGH & LOW SHIFT

main36350-60010iFJ40,43,45196903-197209

main36350-60020iFJ55196903-197209

36350APIN, W/HOLE (FOR HIGH & LOW SHIFT ROD)

main90240-08028iFJ40,43,45,55196903-197209

36351ROD, HIGH & LOW SHIFT, NO.1

main36308-60020iFJ4#,55197209-197501

FOR MAGNET TYPE.3-SPEED T/M

main36308-60020iFJ4#,55..3F197501-197709

FOR MAGNET TYPE

main36308-60030iBJ4#,FJ4#,55..4F..(ARL,GEN)197501-197909

FOR MAGNET TYPE

main36308-60030iBJ4#,FJ4#,55197209-197501

FOR MAGNET TYPE.4-SPEED T/M

main36351-60010iFJ40,43,45..RHD196903-197209

FOR VACUUM TYPE

main36351-60020iFJ40,43,45,55196903-197501

FOR DIRECT TYPE.3-SPEED T/M

main36351-60020iFJ4#,55..3F197501-197504

FOR DIRECT TYPE

main36351-60021iFJ4#,55..3F197504-198007

FOR DIRECT TYPE

sub36340-60040

main36351-60030iFJ55196903-197209

FOR VACUUM TYPE

main36351-60040iFJ45,55,HJ45196903-197501

FOR DIRECT TYPE.4-SPEED T/M

main36351-60040iBJ4#,FJ4#,55,HJ45..4F197501-197504

FOR DIRECT TYPE

main36351-60041iBJ4#,FJ4#,55,HJ45..4F197504-198007

FOR DIRECT TYPE

sub36340-60050

main36351-60050iFJ40,43,45..LHD196903-197209

FOR VACUUM TYPE

36355LEVER, HIGH & LOW SHIFT LINK

main36355-60010iFJ40,43,45,55..RHD196903-197209

36355APIN, W/HOLE (FOR SHIFT LINK LEVER)

main90240-06065iFJ55196903-197209

main90240-08028iFJ40,43,45..RHD196903-197209

main90240-08062iFJ40,43,45..LHD196903-197209

36357LEVER SUB-ASSY, HIGH & LOW SHIFT LINK

main33051-60020iFJ55196903-197209

FOR VACUUM TYPE

main36306-60020iFJ40,43,45196903-197209

FOR VACUUM TYPE

main36357-60020iBJ4#,FJ40,43,45,55,HJ45196903-197504

FOR DIRECT TYPE

36357ABUSH (FOR HIGH & LOW SHIFT LINK LEVER)

main90380-13007iFJ40,43,45,55196903-197209

36362LEVER, TRANSFER HIGH AND LOW SHIFT OUTER

main36362-60010iBJ4#,FJ40,43,45,55,HJ45196903-197504

FOR DIRECT TYPE

main36362-60011iBJ4#,FJ4#,55,HJ45197504-198007

FOR DIRECT TYPE

main36362-60020iBJ4#,FJ4#,55197209-197909

FOR MAGNET TYPE

36364BRACKET, HIGH & LOW SHIFT LINK

main36364-60010iFJ40,43,45196903-197102

main36364-60011iFJ40,43,45197102-197209

main36364-60020iFJ55196903-197209

36371BOOT, SHIFT ROD

main36371-60010iFJ40,43,45,55196903-197006

sub36371-60011

main36371-60011iFJ40,43,45,55197006-197209

36751END ASSY, CONNECTING ROD, NO.2

main33750-35011iFJ40,43,45,55196903-197209

sub33750-26010

36752END ASSY, CONNECTING ROD, NO.1

main33740-35011iFJ40,43,45,55196903-197209

sub33740-26010

9111150840

main91111-50840

9318016016

main93180-16016

9411040600

main94110-40600

9411040800

main94110-40800

9412040800

main94120-40800

9451200600

main94512-00600

9451200800

main94512-00800

9461111300

main94611-11300

9461210800

main94612-10800

9461310600

main94613-10600

9461310800

main94613-10800

9538102015

main95381-02015

9538105045

main95381-05045

9645100600

main96451-00600

37 parts on this diagram · 6 diagrams in section
