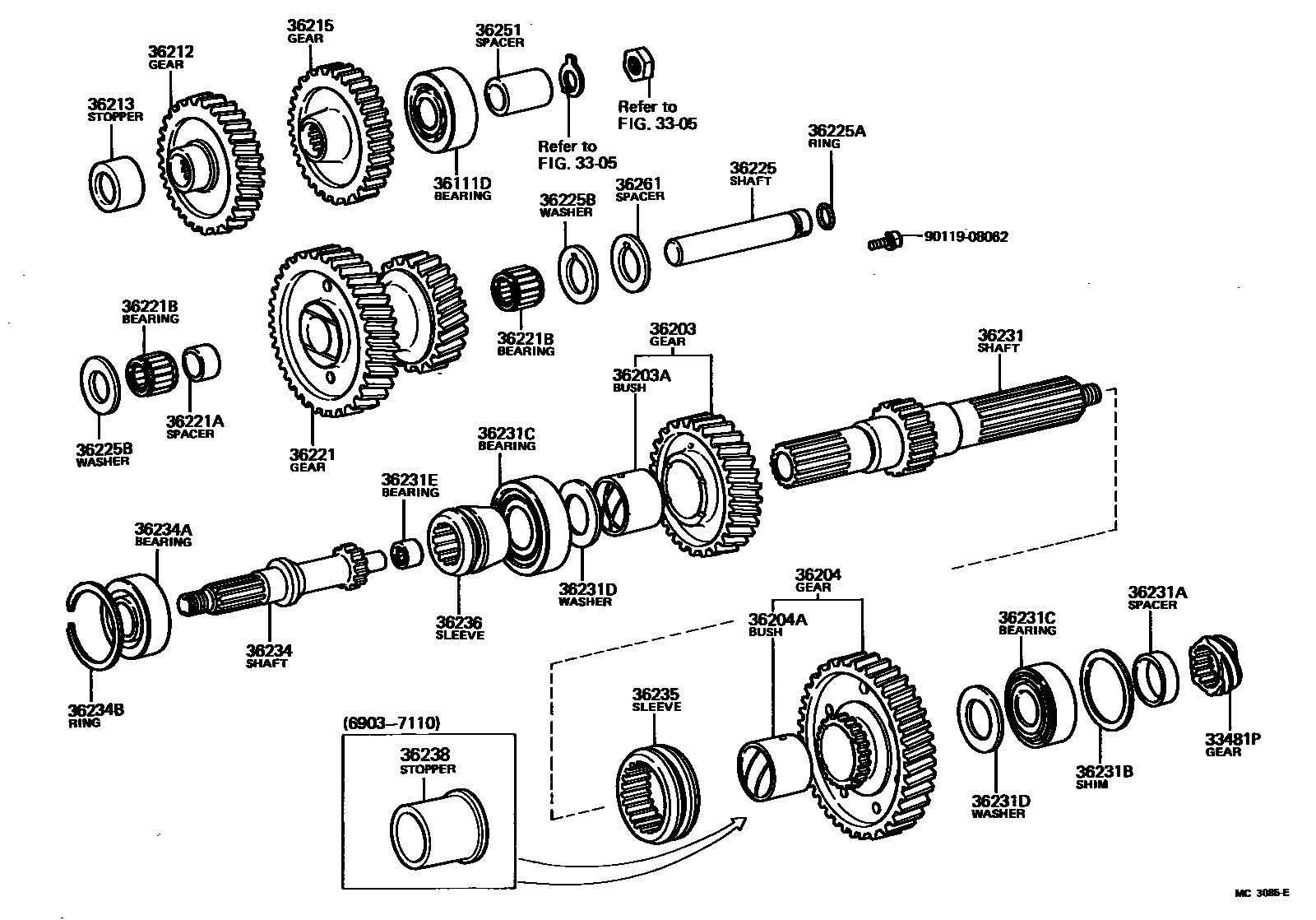

TRANSFER GEAR
3305
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,TAKING 6X18
N=6,TAKING 6X16,6X17
36111DBEARING, TRANSFER REAR AND IDLER SHAFT
FOR 3-SPEED TRANSMISSION
FOR 4-SPEED TRANSMISSION
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
N=29
N=31
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
N=43,FOR 3-SPEED TRANSMISSION
N=43
N=43
N=40
36212GEAR, TRANSFER INPUT
N=29
N=29,FOR 3-SPEED TRANSMISSION
N=31
N=29,FOR 4-SPEED TRANSMISSION
N=29
N=31
36213STOPPER, TRANSFER INPUT GEAR
36215GEAR, POWER TAKE-OFF DRIVE
N=31,FOR 3-SPEED TRANSMISSION
N=31
N=31
N=31,FOR 4-SPEED TRANSMISSION
36221GEAR, TRANSFER IDLER
N=39,25,FOR 3-SPEED T/M
N=39,25
N=41,25
N=39,27,FOR 4-SPEED T/M
N=39,27
N=41,27
36221ASPACER(FOR TRANSFER IDLER GEAR)
36221BBEARING (FOR TRANSFER IDLER GEAR)
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36225BWASHER (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.10
T=0.15
T=0.20
T=0.25
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
sub90366-35053
36231DWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.6
36236SLEEVE, FRONT DRIVE CLUTCH
36238STOPPER, TRANSFER HIGH & LOW CLUTCH SLEEVE
36251SPACER, TRANSFER INPUT SHAFT
FOR 3-SPEED TRANSMISSION
FOR 4-SPEED TRANSMISSION
36261SPACER, TRANSFER IDLER GEAR
T=1.20-1.30
T=1.30-1.40
T=1.40-1.50
9011908062
main90119-08062
31 parts on this diagram · 1 diagram in section
