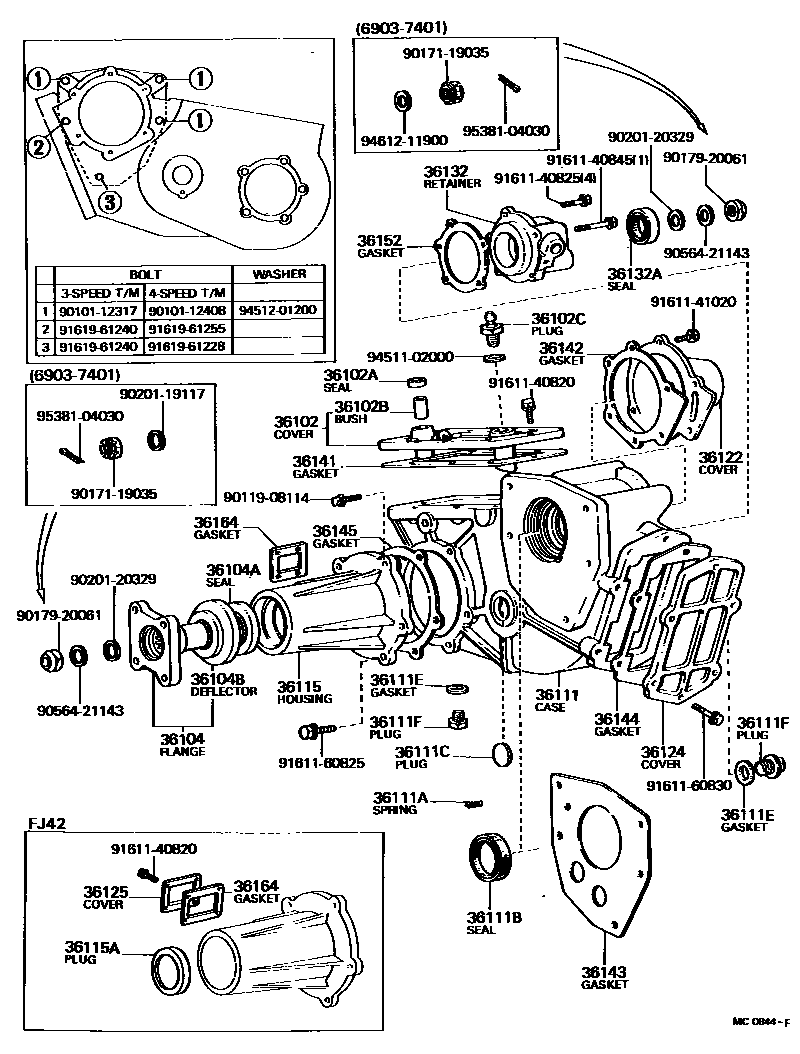

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

36102COVER SUB-ASSY, TRANSFER CASE

main36102-60010iBJ4#,FJ4#,55,HJ45196903-197808

FOR VACUUM OR DIRECT TYPE

main36102-60020iBJ4#,FJ4#,55197209-197808

FOR MAGNET TYPE

main36121-60021iBJ4#,FJ4#,55,HJ45197808-198007

FOR DIRECT TYPE

main36121-60031iBJ4#,FJ4#,55..ARL,GEN197809-197909

FOR MAGNET TYPE

36102ASEAL, TYPE S OIL (FOR TRANSFER COVER)

main90310-13001iBJ4#,FJ4#,55,HJ45196903-197808

main90313-13001iBJ4#,FJ4#,55,HJ45197808-198007

36102BBUSH, SOLID (FOR TRANSFER COVER)

main90999-73013iBJ4#,FJ4#,55,HJ45196903-197808

36102CPLUG SUB-ASSY, BREATHER (FOR TRANSFER COVER)

main90930-03025iFJ4#,55196903-196908

sub90930-03041

main90930-03031iBJ4#,FJ4#,55,HJ45197808-198007

main90930-03041iBJ4#,FJ4#,55,HJ45196908-197808

ISO

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main41204-35010iFJ4#,55,HJ45197308-197401

sub41204-35011

main41204-35020iBJ4#,FJ4#,55,HJ45197401-197801

sub41204-35021

main41204-60010iBJ4#,FJ4#,55,HJ45197801-198007

main41251-35902iFJ40,43,45,55196903-196908

sub41251-35903

main41251-35903iFJ40,43,45,55,HJ45196908-197308

sub41204-35010

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38028iFJ40,43,45,55,HJ45196903-197308

sub90311-38134

main90311-38134iBJ4#,FJ4#,55,HJ45197308-198007

sub90311-38047

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main37341-30010iBJ4#,FJ40,43,45,55,HJ45196903-198007

36111CASE, TRANSFER

main36111-60020iFJ4#,55197309-197501

FOR 3-SPEED TRANSMISSION

main36111-60020iFJ4#,55,HJ45196903-197504

main36111-60021iFJ4#,55..3F197504-197601

main36111-60030iBJ4#,FJ4#,55,HJ45..4F197501-197504

main36111-60030iBJ4#,FJ4#,55,HJ45197309-197501

FOR 4-SPEED TRANSMISSION

main36111-60031iBJ4#,FJ4#,55,HJ45197504-197704

sub36111-60032

main36111-60032iBJ4#,FJ4#,55,HJ45197704-198007

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-23030iFJ4#,55196903-197203

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-42014iBJ4#,FJ4#,55,HJ45196903-198007

36111CPLUG (FOR TRANSFER CASE)

main90330-27010iBJ4#,FJ4#,55,HJ45196903-198007

36111EGASKET (FOR TRANSFER CASE)

main12157-10010iBJ4#,FJ4#,55,HJ45196903-198007

36111FPLUG (FOR TRANSFER CASE)

main90341-18002iFJ4#,55196903-196911

main90341-18002iBJ4#,FJ4#,55,HJ45196911-198007

FILLER PLUG

main90341-18057iBJ4#,FJ4#,55,HJ45196911-198007

DRAIN PLUG

36115HOUSING, TRANSFER EXTENSION

main36115-60010iBJ4#,FJ4#,55,HJ45196903-198007

36115APLUG, TRANSFER EXTENSION HOUSING

main36126-60010iFJ42196903-197203

36122COVER, TRANSFER CASE, NO.2

main36122-60020iBJ4#,FJ4#,55,HJ45196903-198007

36124COVER, TRANSFER POWER TAKE-OFF

main36124-60010iBJ4#,FJ4#,55,HJ45196903-198007

36125COVER, TRANSFER EXTENSION HOUSING

main36125-60010iFJ42196903-197203

36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1

main36132-60010iBJ4#,FJ4#,55,HJ45196903-198007

36132ASEAL, OIL (FOR OUTPUT SHAFT RETAINER)

main90311-45001iBJ4#,FJ4#,55,HJ45197506-198007

main90311-45018iBJ4#,FJ4#,55,HJ45196903-197506

sub90311-45001

36141GASKET, TRANSFER CASE COVER, NO.1

main36141-60020iBJ4#,FJ4#,55,HJ45196903-198007

36142GASKET, TRANSFER COVER

main36142-60020iBJ4#,FJ4#,55,HJ45196903-198007

sub36142-60050

36143GASKET, TRANSFER CASE, FRONT

main36143-60010iBJ4#,FJ4#,55,HJ45196903-198007

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main36144-60010iBJ4#,FJ4#,55,HJ45196903-198007

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-60010iBJ4#,FJ4#,55,HJ45196903-198007

36152GASKET, OUTPUT SHAFT BEARING RETAINER

main36152-60020iBJ4#,FJ4#,55,HJ45196903-198007

36164GASKET, TRANSFER SHIFT SHAFT GUIDE

main36164-60020iBJ4#,FJ4#,55,HJ45196903-198007

9010112317

main90101-12317

9010112408

main90101-12408

9011908114

main90119-08114

9017119035

main90171-19035

9017920061

main90179-20061

9020119117

main90201-19117

9020120329

main90201-20329

9056421143

main90564-21143

9161140820

main91611-40820

9161140825

main91611-40825

9161140845

main91611-40845

9161141020

main91611-41020

9161160825

main91611-60825

9161160830

main91611-60830

9161961228

main91619-61228

9161961240

main91619-61240

9161961255

main91619-61255

9451102000

main94511-02000

9451201200

main94512-01200

9461211900

main94612-11900

9538104030

main95381-04030

48 parts on this diagram · 2 diagrams in section
