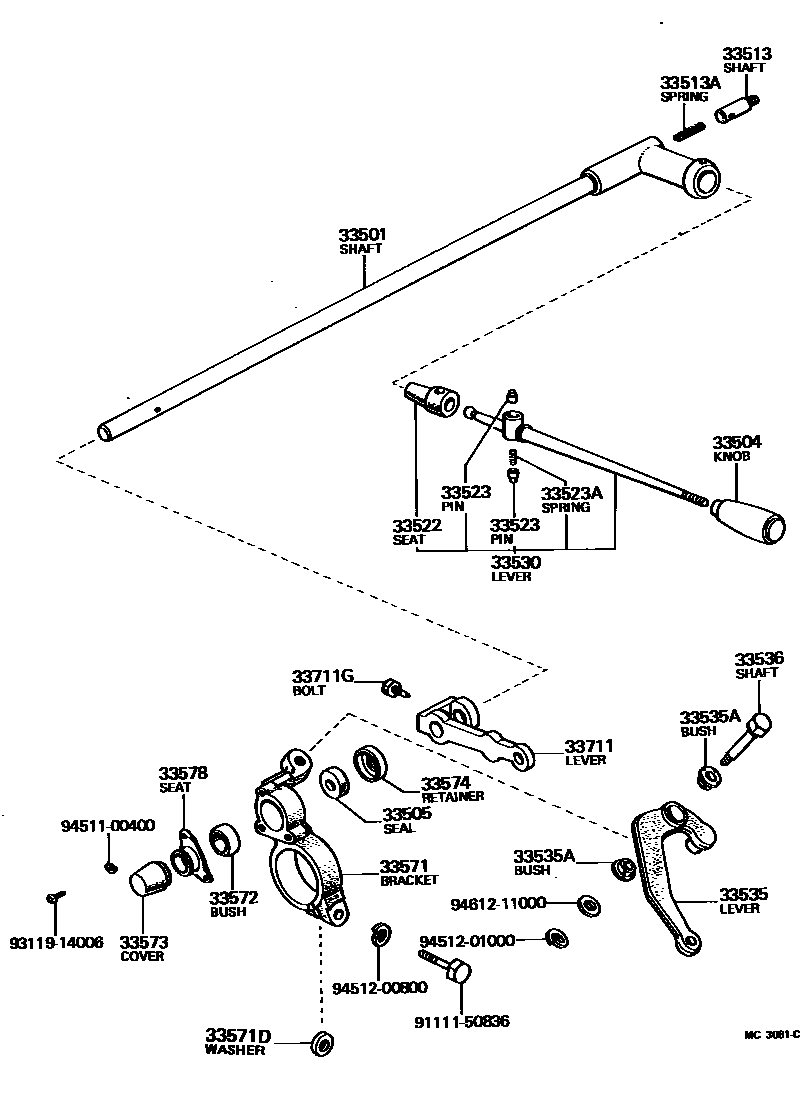

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-60010iFJ40,43..RHD196903-197109

main33501-60020iFJ45;FJ40,43..LHD196903-197209

main33501-60030iFJ55196903-197209

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33542-61010iFJ40,43,45,55196903-197209

sub33542-30011

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17004iFJ40,43,45,55196903-197209

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26011iFJ55197102-197209

main33513-30010iFJ55196903-197102

main33513-60010iFJ40,43,45196903-197209

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14063iFJ40,43,45196903-197209

main90501-14244iFJ55196903-197209

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-20010iFJ55196903-197209

main33522-30010iFJ40,43,45196903-197209

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main33523-30010iFJ40,43,45,55196903-197209

33523ASPRING, COMPRESSION

main90501-04062iFJ40,43,45,55196903-197209

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-69015iFJ40,43,45196903-197209

main33541-69025iFJ55196903-197209

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-60010iFJ40,43,45..RHD196903-197209

main33535-60020iFJ40,43,45..LHD196903-197209

main33535-60030iFJ55..RHD196903-197209

main33535-60040iFJ55..LHD196903-197209

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iFJ40,43,45,55196903-197209

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-60010iFJ40,43,45,55196903-197209

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-60011iFJ40,43,45..RHD196903-197209

main33571-60021iFJ40,43,45..LHD196903-197209

main33571-60030iFJ55196903-197209

33571DWASHER, PLATE (FOR CONTROL SHAFT LOWER BRACKET)

main90201-08078iFJ40,43,45196903-197209

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-35010iFJ40,43,45,55196903-197209

sub33572-36010

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-35010iFJ40,43,45196903-197209

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-35010iFJ40,43,45,55196903-197209

33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1

main33579-35010iFJ40,43,45196903-197209

sub33579-27010

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-60010iFJ40,43,45..RHD196903-197209

main33527-60020iFJ40,43,45..LHD196903-197209

main33527-60030iFJ55196903-197209

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iFJ40,43,45,55196903-197209

9111150836

main91111-50836

9311914006

main93119-14006

9451100400

main94511-00400

9451200800

main94512-00800

9451201000

main94512-01000

9461211000

main94612-11000

26 parts on this diagram · 8 diagrams in section
