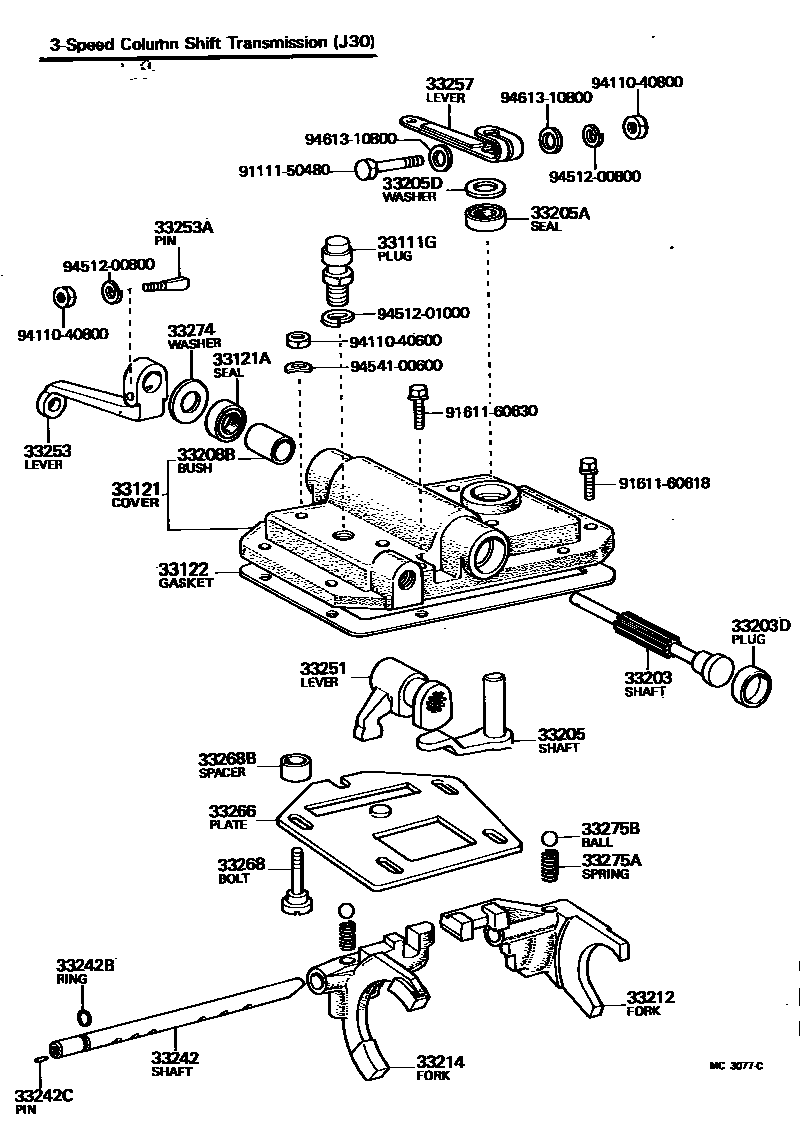

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03001iFJ55196903-197309

FOR 4-SPEED TRANSMISSION

main90930-03019iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90930-03019iFJ4#,55..3F197501-198007

33121COVER, MANUAL TRANSMISSION CASE

main33102-60030iFJ40,43,45,55..RHD196903-197209

FOR 3-SPEED TRANSMISSION

main33102-60050iFJ40,43,45,55..LHD196903-197209

FOR 3-SPEED TRANSMISSION

33121ASEAL, OIL(FOR TRANSMISSION CASE COVER)

main90310-13001iFJ40,43,45,55196903-197209

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-61010iFJ4#,55196903-197209

FOR 3-SPEED TRANSMISSION

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-60010iFJ40,43,45,55196903-197209

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-25001iFJ40,43,45,55196903-197209

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-60010iFJ40,43,45,55..RHD196903-197209

main33205-60020iFJ40,43,45,55..LHD196903-197209

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90310-13001iFJ40,43,45,55196903-197209

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94611-11300iFJ40,43,45,55196903-197102

main94612-11300iFJ40,43,45,55197102-197209

33208BBUSH, BIMETAL FORMED(FOR SHIFT LEVER SHAFT HOUSING)

main90999-73013iFJ40,43,45,55196903-197209

33212FORK, 1ST & REVERSE SHIFT

main33212-60010iFJ4#,55196903-198007

33214FORK, 2ND & 3RD SHIFT

main33214-60010iFJ4#,55196903-198007

33242SHAFT, GEAR SHIFT FORK, NO.1

main33241-60020iFJ4#,55196903-198007

33242BRING, O (FOR SHIFT FORK SHAFT)

main90301-08029iFJ4#,55196903-198007

33242CPIN, STRAIGHT (FOR SHIFT FORK SHAFT)

main90250-03032iFJ4#,55196903-198007

33251LEVER, SHIFT & SELECT

main33251-60010iFJ40,43,45,55196903-197209

33253LEVER, SHIFT OUTER, NO.1

main33253-60010iFJ40,43,45196903-197209

main33253-60020iFJ55196903-197209

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-30010iFJ40,43,45,55196903-197209

sub33281-16020

33257LEVER, SELECT OUTER

main33257-60010iFJ40,43,45,55196903-197209

33266PLATE, SHIFT INTERLOCK

main33206-60010iFJ4#,55196903-198007

33268BOLT, SHIFT INTERLOCK PLATE SET, NO.2

main33267-60010iFJ4#,55196903-198007

6-1PX29-10

main33268-60010iFJ4#,55196903-198007

6-1PX35.5-10

33268BSPACER (FOR SHIFT INTERLOCK BOLT)

main90560-06083iFJ4#,55196903-198007

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94611-11300iFJ40,43,45,55196903-197102

main94612-11300iFJ40,43,45,55197102-197209

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBJ4#,FJ4#,55,HJ45197309-198007

L=9,OD=9

main90344-52001iFJ4#,55,HJ45196903-197309

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-12033iFJ4#,55..3F197501-198007

main90501-12033iFJ4#,55196903-197501

FOR 3-SPEED TRANSMISSION

main90501-14772iBJ4#,FJ4#,55,HJ45197309-197501

FOR 4-SPEED TRANSMISSION

main90501-14772iBJ4#,FJ4#,55,HJ45..4F197501-198007

main90501-16040iFJ55196903-197309

FOR 4-SPEED TRANSMISSION

33275BBALL, SHAFT DETENT

main90360-10003iBJ4#,FJ4#,55,HJ45196903-198007

9111150480

main91111-50480

9161160618

main91611-60618

9161160630

main91611-60630

9411040600

main94110-40600

9411040800

main94110-40800

9451200800

main94512-00800

9451201000

main94512-01000

9454100600

main94541-00600

9461310800

main94613-10800

35 parts on this diagram · 5 diagrams in section
