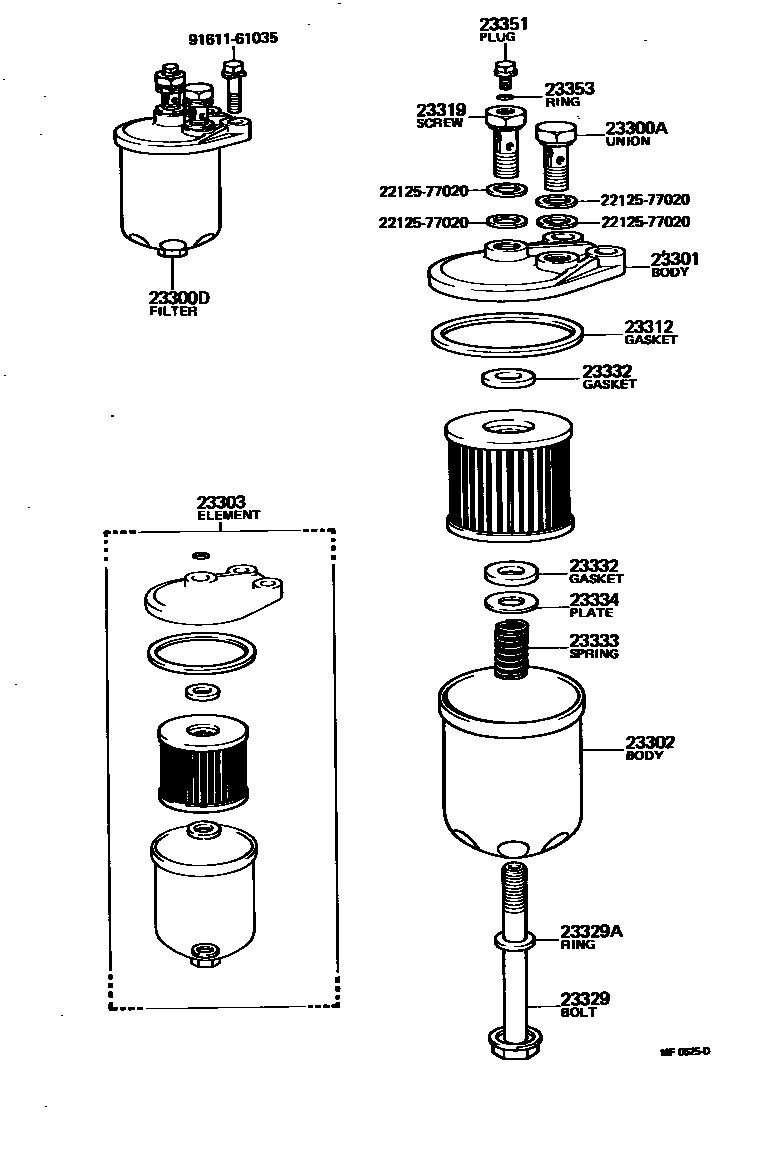

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

23300FILTER ASSY, FUEL

main23030-24011iF..FJ4#,55197007-197209

main23030-60030iF,2F..FJ4#,55197209-197901

main23300-30011iF..FJ4#,55196903-197001

sub23300-30012

main23300-30012iF..FJ4#,55197001-197007

main23300-36020i2F..FJ4#,55197901-198007

main23300-38010i2F..FJ4#,55197909-198007

FOR LARGE TYPE

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90401-14060iB..BJ4#197204-198007

sub90099-18010

main90404-13105iF..FJ4#,55196903-197007

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-48011iH..HJ45197204-197306

main23300-48012iH..HJ45197306-197809

sub23300-48013

main23300-48013iH..HJ45197809-197910

sub23300-48014

main23300-48014iH..HJ45197910-198007

main23300-56020iB..BJ4#197402-197502

sub23300-56021

main23300-56021iB..BJ4#197502-197701

sub23300-56022

main23300-56022iB..BJ4#197701-197709

sub23300-56030

main23300-56030iB..BJ4#197709-197906

sub23300-56031

main23300-56031iB..BJ4#197906-198007

23301BODY SUB-ASSY, FUEL FILTER

main23300-56030iB..BJ4#197709-197906

sub23300-56031

main23300-56031iB..BJ4#197906-198007

main23301-30010iF..FJ4#,55196903-197001

sub23301-30011

main23301-30011iF..FJ4#,55197001-197007

main23311-48011iH..HJ45197204-197306

main23311-48012iH..HJ45197306-198007

sub23311-48014

main23311-56020iB..BJ4#197402-197502

main23311-56021iB..BJ4#197502-197709

sub23300-56021

23302BODY SUB-ASSY, FUEL FILTER, LOWER

main23302-48012iH..HJ45197306-198007

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-30010iF..FJ4#,55196903-197007

main04234-48010iH..HJ45197204-197306

main04234-48011iH..HJ45197306-198007

sub04234-48012

main23302-56021iB..BJ4#197502-197701

sub23302-56022

main23302-56022iB..BJ4#197701-197709

sub23303-56022

main23303-56030iB..BJ4#197709-197906

sub23303-56031

main23303-56031iB..BJ4#197906-198007

23312GASKET, FILTER BOWL

main23312-30010iF..FJ4#,55196903-197007

main23312-48010iH..HJ45197204-197306

main23312-48012iB..BJ4#197306-198007

main23312-56021iB..BJ4#197502-198007

23319SCREW, FUEL PIPE FOLLOW

main23319-46010iB..BJ4#197204-198007

23329BOLT, FUEL FILTER CENTER

main23304-48012iB..BJ4#197306-198007

23329ARING, O(FOR FUEL FILTER CENTER BOLT)

main23344-46010iB..BJ4#197306-198007

23332GASKET, ELEMENT(FOR FUEL FILTER)

main23332-48012iB..BJ4#197306-198007

23333SPRING, FILTER ELEMENT SET

main23333-30010iF..FJ4#,55196903-197007

main23333-48012iH..HJ45197306-198007

23334PLATE, SPRING(FOR FILTER ELEMENT)

main23334-48012iB..BJ4#197306-198007

23351PLUG, AIR VENT

main23351-46010iB..BJ4#197204-198007

main23351-54010iB..BJ4#197909-198007

W/SEDIMENTER

23353RING, O(FOR AIR VENT PLUG)

main23353-46010iH..HJ45197204-198007

main23353-54010iB..BJ4#197909-198007

W/SEDIMENTER

2212577020

main22125-77020

9161161035

main91611-61035

17 parts on this diagram · 7 diagrams in section
