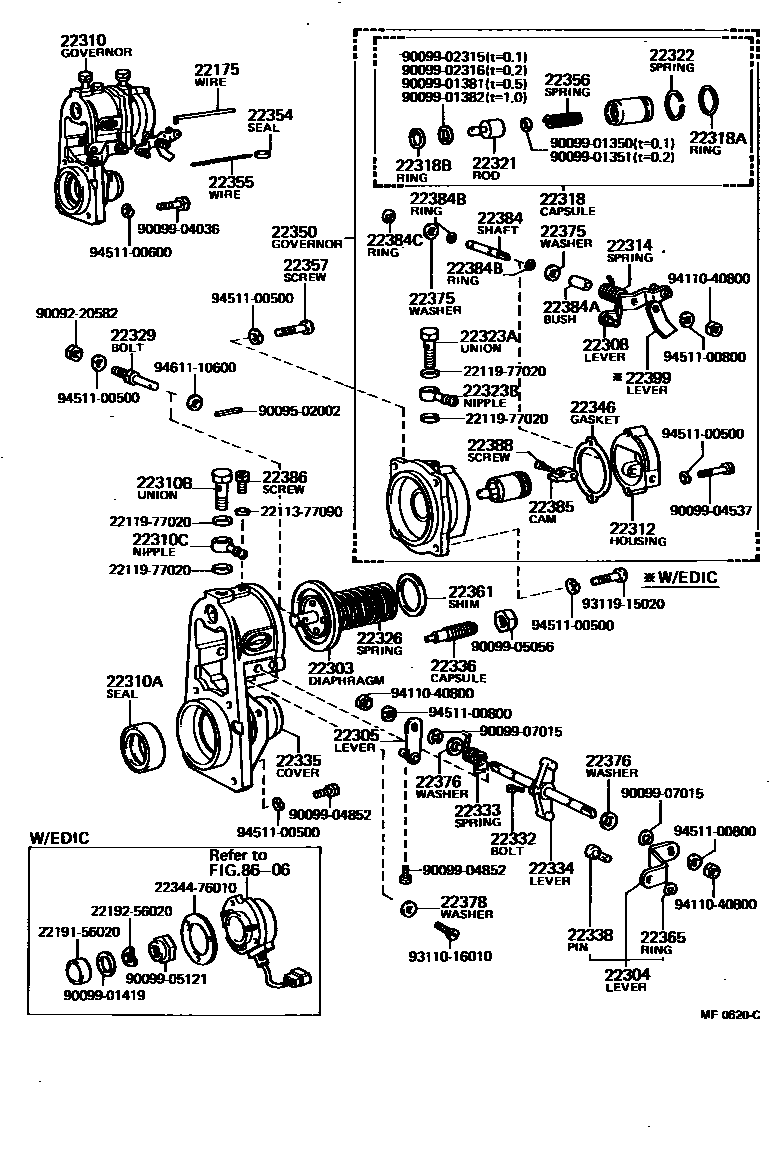

PNEUMATIC GOVERNOR
22303DIAPHRAGM SUB-ASSY, GOVERNOR
22305LEVER SUB-ASSY, INJECTION PUMP, NO.1
W/EDIC & HAC
W/HAC
W/EDIC
W/EDIC
W/EDIC & HAC
W/HAC
22308LEVER SUB-ASSY, INJECTION PUMP, NO.2
22310GOVERNOR ASSY, INJECTION PUMP
W/EDIC
W/HAC
W/EDIC & HAC
W/EDIC
W/EDIC
W/EDIC & HAC
W/HAC
22310ASEAL, OIL(FOR INJECTION PUMP GOVERNOR)
22310CNIPPLE(FOR GOVERNOR)
sub90401-12006
22312HOUSING, LEVER
22314SPRING, BACK(FOR GOVERNOR SHAFT)
22318ARING, SHAFT SNAP
22318BRING, SNAP
22321ROD, PUSH
22322SPRING, RETURN(FOR IDLING CAPSULE)
22323HOUSING, GOVERNOR DIAPHRAGM
22323BNIPPLE(FOR GOVERNOR HOUSING)
sub90401-12006
22326SPRING, GOVERNOR MAIN
22329BOLT, DIAPHRAGM CONNECTING
22332BOLT, GOVERNOR STOP
sub22414-47030
22333SPRING, DIAPHRAGM STOP LEVER RETURN
22334LEVER, W/SHAFT GOVERNOR STOP
22335COVER, CAMSHAFT
22336CAPSULE, FULL STOP
sub22336-68010
22346GASKET, GOVERNOR CAP
22350GOVERNOR ASSY, PNEUMATIC SMALL
W/EDIC
22354SEAL, LEAD
22356SPRING, GOVERNOR IDLING
22357SCREW, DIAPHRAGM HOUSING SET
sub90099-04945
22361SHIM, MAIN SPRING
T=3.0,T=3.0
T=2.0,T=2.0
T=1.0,T=1.0
T=0.5,T=0.5
22375WASHER, STOP LEVER SHAFT
T=0.2
T=1.0
22376WASHER, STOP LEVER SHAFT
T=0.2
T=0.3
22378WASHER, DRAIN SCREW
sub22113-77090
22384SHAFT, GOVERNOR
22384ABUSH(FOR GOVERNOR SHAFT)
22384BRING, O(FOR GOVERNOR SHAFT)
22384CRING, E(FOR GOVERNOR SHAFT)
22385CAM(FOR INJECTION PUMP GOVERNOR)
22386SCREW(FOR INJECTION PUMP GOVERNOR)
22388SCREW
sub22332-77021
22399LEVER, INJECTION PUMP FUEL CUT
W/EDIC
8606
2211377090
main22113-77090
2211977020WASHER, AIR BLEEDER NIPPLE
main22119-77020
2219156020
main22191-56020
2219256020GUIDE SUB-ASSY, PLUNGER SPRING
main22192-56020
2234476010GASKET, ENGINE SPEEDOMETER GEAR BOX
main22344-76010
9009220582
main90092-20582
9009502002
main90095-02002
9009901350
main90099-01350
9009901351
main90099-01351
9009901381
main90099-01381
9009901382
main90099-01382
9009901419
main90099-01419
9009902315
main90099-02315
9009902316
main90099-02316
9009904036
main90099-04036
9009904537
main90099-04537
9009904852
main90099-04852
9009905056
main90099-05056
9009905121
main90099-05121
9009907015
main90099-07015
9311016010
main93110-16010
9311915020
main93119-15020
9411040800
main94110-40800
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
9461110600
main94611-10600
74 parts on this diagram · 3 diagrams in section
