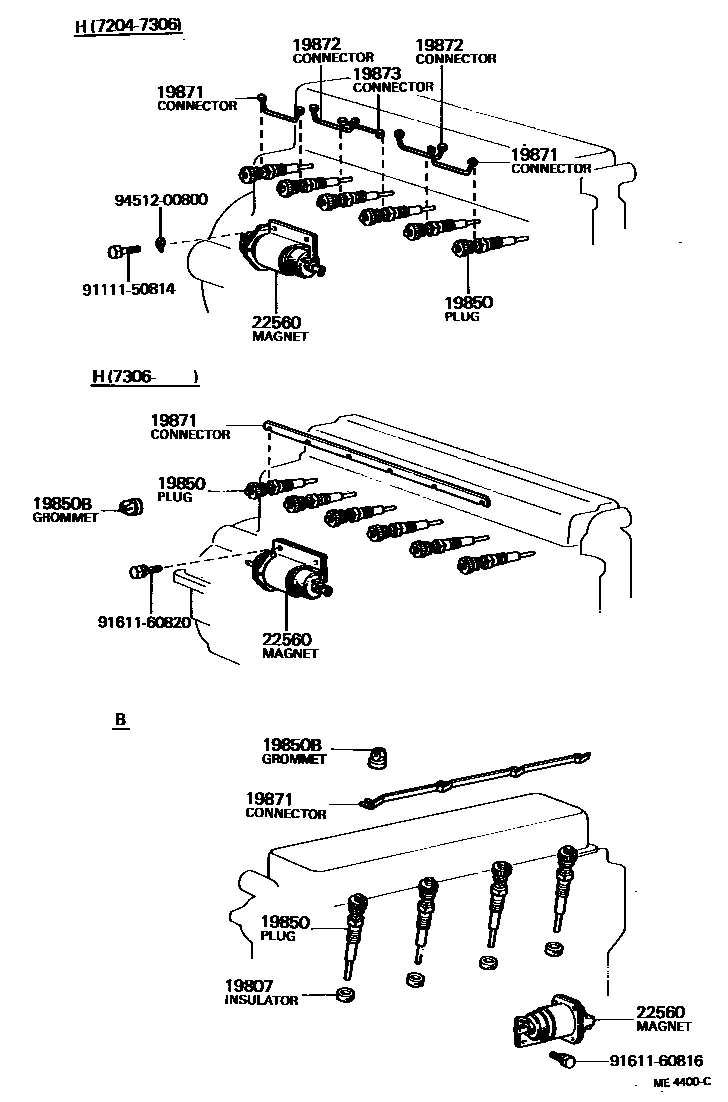

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1

19807INSULATOR SUB-ASSY, GLOW PLUG, NO.1

main19877-56010×4iB..BJ4#197402-198007

19850PLUG ASSY, GLOW

main19850-46021×6iH..HJ45197204-197306

12V

main19850-56010×4iB..BJ4#197402-197410

*BV-GV=24V-19.4V,24V

main19850-56011×4iB..BJ4#197410-197703

24V

main19850-56012×4iB..BJ4#197703-198007

*BV-GV=24V-20.5V,24V

sub19850-68040

sub90189-04024

main19850-56020×6iH..HJ45197306-197410

12V

main19850-56021×6iB..BJ4#197507-197709

12V

main19850-56022×6iB..BJ4#197709-198007

12V

sub19850-68030

sub90189-04024

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-05011×6iB..BJ4#197904-198007

main90189-06004×6iB..BJ4#197709-197904

19871CONNECTOR, GLOW PLUG NO.1

main19871-47010×2iH..HJ45197204-197306

main19871-47011iH..HJ45197306-198007

main19871-56010iB..BJ4#197402-198007

sub19871-56020

19872CONNECTOR, GLOW PLUG, NO.2

main19872-47010×2iH..HJ45197204-197306

19873CONNECTOR, GLOW PLUG, NO.3

main19873-47010iH..HJ45197204-197306

22560MAGNET ASSY, OVER INJECTION

main22560-47020iH..HJ45197204-197709

main22560-48010iH..HJ45197709-198007

12V

main22560-48020iH..HJ45197805-198007

24V

main22560-56010iB..BJ4#197402-197709

main22560-56030iB..BJ4#197709-198007

24V

main22560-56040iB..BJ4#197709-198007

12V

9111150814

main91111-50814

9161160816

main91611-60816

9161160820

main91611-60820

9451200800

main94512-00800

11 parts on this diagram · 5 diagrams in section
