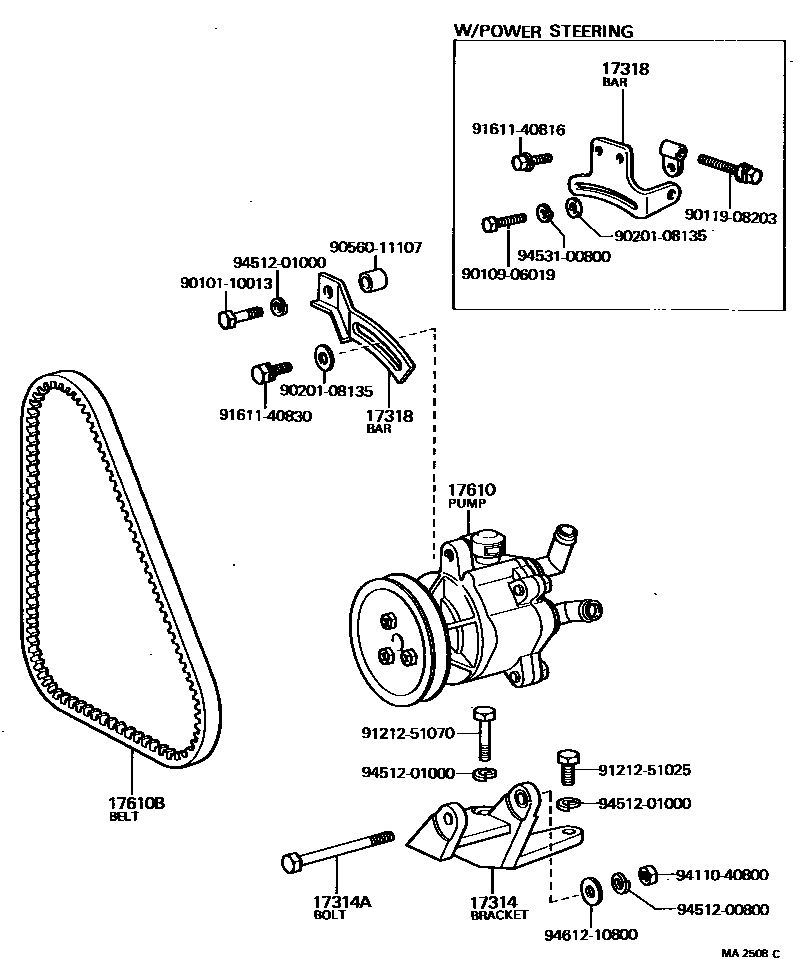

AIR PUMP

17314BRACKET, AIR PUMP

main17314-61010i2F..FJ40..ARL197804-198007

NEW SOUTH WALES

sub17314-61011

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-08188i2F..FJ40..ARL197804-198007

NEW SOUTH WALES

17318BAR, AIR PUMP ADJUSTING, NO.2

main17318-61011i2F..FJ40..ARL197804-198007

NEW SOUTH WALES

17610PUMP ASSY, AIR

main17610-61010i2F..FJ40..ARL197804-198007

NEW SOUTH WALES

main17610-61020i2F..FJ40..ARL197909-198007

NEW SOUTH WALES,TEMPERD TYPE

17610BBELT, V(FOR AIR PUMP)

main90916-02046i2F..FJ40..ARL197804-197901

NEW SOUTH WALES

main90916-02084i2F..FJ40..ARL197901-198007

NEW SOUTH WALES

9010110013

main90101-10013

9010906019

main90109-06019

9011908203

main90119-08203

9020108135

main90201-08135

9056011107

main90560-11107

9121251025

main91212-51025

9121251070

main91212-51070

9161140816

main91611-40816

9161140830

main91611-40830

9411040800

main94110-40800

9451200800

main94512-00800

9451201000

main94512-01000

9453100800

main94531-00800

9461210800

main94612-10800

19 parts on this diagram · 1 diagram in section
