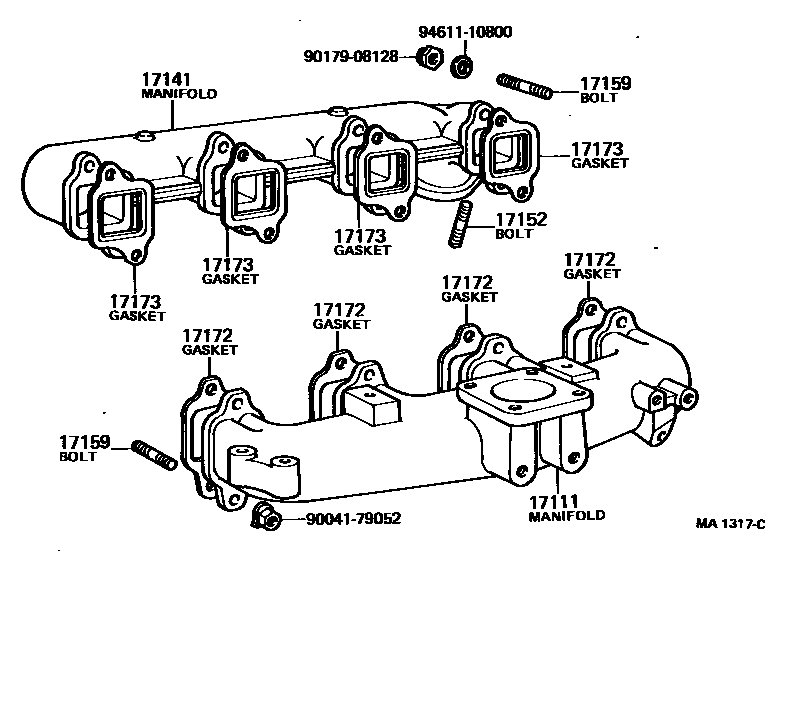

MANIFOLD

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0010 1 0012 1 0013 1

17111MANIFOLD, INTAKE

main17111-47010iH..HJ45197204-197306

main17111-47030iH..HJ45197306-197709

sub17111-47070

main17111-47060iH..HJ45197709-198007

main17111-56020iB..BJ4#197402-197709

sub17111-56040

main17111-56040iB..BJ4#197709-198007

main17111-60070iF..FJ4#,55196903-196909

main17111-60090iF..FJ4#,55196909-197109

sub17111-60091

sub90345-51005

main17111-60091iF..FJ4#,55197109-197309

17141MANIFOLD, EXHAUST

main17104-60040iF..FJ4#,55196903-197309

sub17104-60041

main17141-47012iH..HJ45197204-197306

main17141-47013iH..HJ45197306-198007

main17141-56010iB..BJ4#197402-198007

sub17141-56020

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10029iB..BJ4#197204-198007

L=42,S=16&23

main90116-10065iF..FJ4#,55196903-196908

sub92132-41025

main90116-10137i2F..FJ4#,55197501-197509

L=32.5,S=15&12

main90116-10299i2F..FJ4#,55197509-198007

L=30,S=10&16

main92132-41025iF..FJ4#,55196908-197501

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08013iH..HJ45197204-198007

L=34.5,S=9&16

main90116-08017iH..HJ45197204-198005

L=41,S=10&20

sub90116-08288

main90116-08058iB..BJ4#197402-197709

L=30,S=8&8

main90116-08065iB..BJ4#197709-198003

L=33,S=9&9

main90116-08118iB..BJ4#197402-198007

L=39,S=11&13

main90116-08125iH..HJ45198005-198007

L=42,S=10&21

main90116-10042iF..FJ4#,55196903-197501

L=37,S=20&13

main90116-12321i2F..FJ4#,55197501-198007

L=40,S=23&13

sub90116-12011

main92112-60822iB..BJ4#198003-198007

L=33,S=10&16

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-47010iH..HJ45197204-197306

main17172-47011iH..HJ45197306-197807

sub17172-47012

main17172-47012iH..HJ45197807-198007

main17172-56010iB..BJ4#197402-197709

sub17172-56011

main17172-56011iB..BJ4#197709-198007

sub17172-56012

main17172-60020iF..FJ4#,55196903-197309

sub17172-60030

main17172-60030iF..FJ4#,55197309-197501

sub17172-60031

main17172-61010i2F..FJ4#,55197501-197607

sub17172-61030

main17172-61030i2F..FJ4#,55197607-198007

sub17172-61031

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46010iH..HJ45197204-197306

sub17173-46011

main17173-47010iH..HJ45197306-198007

sub17173-47011

main17173-56010iB..BJ4#197402-198007

sub17173-56011

9004179052

main90041-79052

9017908128

main90179-08128

9461110800

main94611-10800

9 parts on this diagram · 9 diagrams in section
