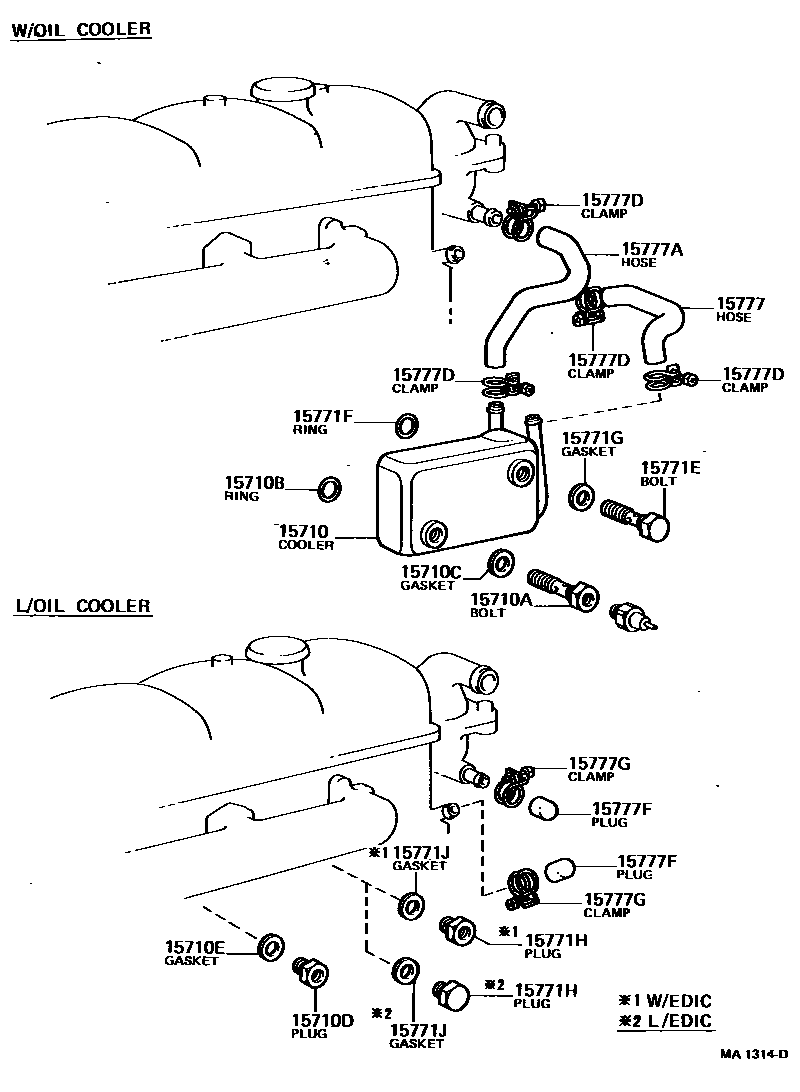

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-48020iH..HJ45197801-198007

main15710-56010iB..BJ4#197402-198007

sub15710-56020

main15710-61010i2F..FJ4#,55..ARL,GEN197509-198007

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18083iH..HJ45197509-198007

main90401-18084i2F..FJ4#,55..ARL,GEN197601-198007

W/SWITCH HOLE

main90401-18084iB..BJ4#..ARL,GEN197402-198007

15710BRING, O(FOR OIL COOLER)

main90301-21176i2F..FJ4#,55197402-198007

15710CGASKET(FOR OIL COOLER)

main90430-18012i2F..FJ4#,55..ARL,GEN197402-198007

15710DPLUG, W/HEAD STRAIGHT SCREW

main90043-41017iB..BJ4#..EUR,GEN197402-198007

L/OIL COOLER

15710EGASKET(FOR STRAIGHT SCREW PLUG)

main90430-18012iB..BJ4#..EUR,GEN197402-198007

L/OIL COOLER

15771EBOLT, UNION(FOR OIL PIPE)

main90401-18083iB..BJ4#197402-198007

main90401-18084iB..BJ4#197402-198007

W/EDIC

15771FRING, O

main90301-21176iH..HJ45197402-198007

15771GGASKET

main90430-18012iB..BJ4#..ARL,GEN197402-198007

15771HPLUG, W/HEAD STRAIGHT SCREW

main90043-41008iB..BJ4#..GEN197402-198007

L/OIL COOLER

main90043-41017iB..BJ4#..EUR,GEN197402-198007

L/OIL COOLER W/EDIC

15771JGASKET(FOR STRAIGHT SCREW PLUG)

main90430-18012iB..BJ4#..EUR,GEN197402-198007

L/OIL COOLER

15777HOSE, OIL COOLER

main15777-47020iH..HJ45197801-198007

main15777-56010iB..BJ4#..ARL,GEN197402-198007

main15779-61010i2F..FJ4#,55197509-198007

15777AHOSE, OIL COOLER

main15777-47010iH..HJ45197801-198007

main15778-56010iB..BJ4#197402-198007

main15778-61010i2F..FJ4#,55..ARL,GEN197509-198007

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96111-10270i2F..FJ4#,55..ARL,GEN197509-198007

sub96112-10270

main96112-10240iH..HJ45197801-198007

main96112-10250iB..BJ4#..ARL,GEN197402-198007

15777FPLUG

main90339-16007iB..BJ4#..EUR,GEN197402-198007

L/OIL COOLER

sub90339-16001

15777GCLAMP OR CRIP, HOSE

main90461-10139i2F..FJ4#,55..ARL,GEN197509-198007

main96112-10250iB..BJ4#..EUR,GEN197402-198007

L/OIL COOLER

16 parts on this diagram · 3 diagrams in section
