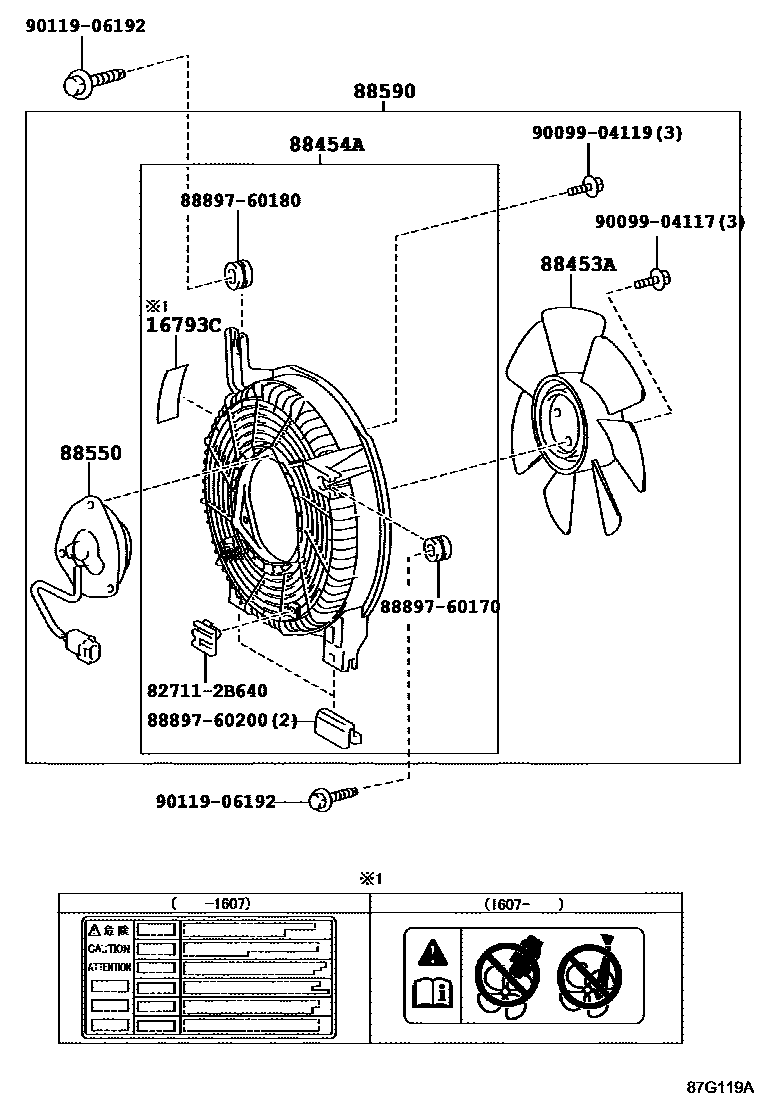

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0002 1W(CONDENSER FAN) 0003 1FRONT,W(REAR) 0004 1FRONT,W(REAR) 0005 1FRONT,W(REAR) 0006 1FRONT,W/O(REAR) 0007 1FRONT,W/O(REAR) 0008 1REAR 0009 1REAR,W(COOL BOX) 0010 1O-RING

16793CLABEL, COOLING FAN CAUTION

main16793-28020i1URFE..URJ150200911-201112

2 SEAT PACKAGE

sub16793-36040

main16793-31070i1URFE..URJ150201607-201908

2 SEAT PACKAGE

main16793-31070i1URFE..URJ150201908

main16793-38010i1URFE..URJ150201112-201607

2 SEAT PACKAGE

sub16793-31070

88453AFAN, COOLING

main88453-60010iURJ150200911-201908

2 SEAT PACKAGE

main88453-60010iURJ150201908

88454ASHROUD, FAN

main88454-60060iURJ150200911-201112

2 SEAT PACKAGE

sub88454-60061

main88454-60061iURJ150201112-201908

2 SEAT PACKAGE

main88454-60061iURJ150201908

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12160iURJ150200911-201908

2 SEAT PACKAGE

main88550-12160iURJ150201908

88590BLOWER ASSY, W/SHROUD

main88590-60090iURJ150200911-201111

2 SEAT PACKAGE

sub88590-60091

main88590-60091iURJ150201112-201908

2 SEAT PACKAGE

main88590-60091iURJ150201908

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889760170VALVE, COOLER MAGNET

main88897-60170

8889760180VALVE, COOLER MAGNET

main88897-60180

8889760200VALVE, COOLER MAGNET

main88897-60200

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

12 parts on this diagram · 10 diagrams in section
