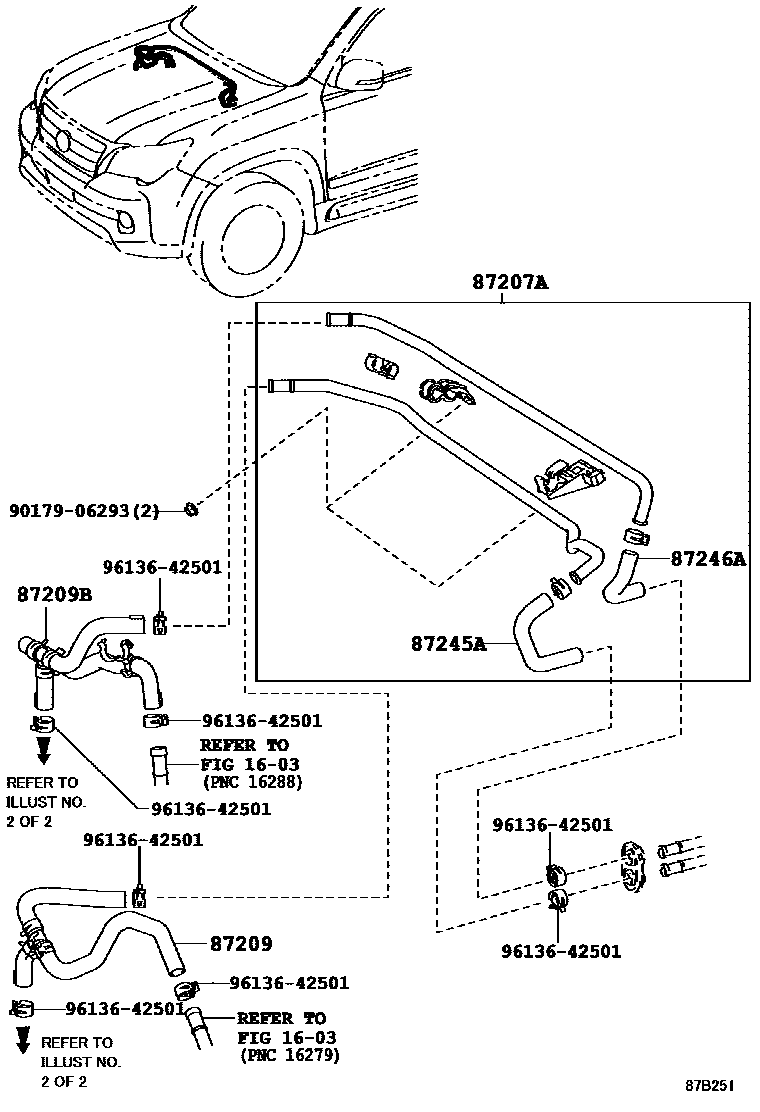

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT,W(REAR HEATER) 0002 1FRONT 0003 1REAR 0004 1REAR

1603

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-60240iURJ150200911-200912

sub87207-60241

main87207-60241iURJ150201001-201908

87209HOSE SUB-ASSY, WATER

main87209-60D90iURJ150200911-201112

sub87209-60D91

main87209-60D91iURJ150201201-201908

87209BHOSE SUB-ASSY, WATER, B

main87209-60D80iURJ150200911-201112

sub87209-60D81

main87209-60D81iURJ150201201-201908

87245HOSE, HEATER WATER, INLET

main87245-60E60iURJ150200911-201908

2 SEAT PACKAGE

main87245-60E60iURJ150201908

87245AHOSE, HEATER WATER, INLET A

main87245-60J50iURJ150200911-201308

main87245-60J50iURJ150201308-201908

2 SEAT PACKAGE

87246HOSE, HEATER WATER, OUTLET

main87245-60E50iURJ150200911-201908

2 SEAT PACKAGE

main87245-60E50iURJ150201908

87246AHOSE, HEATER WATER, OUTLET A

main87245-60J60iURJ150200911-201308

main87245-60J60iURJ150201308-201908

2 SEAT PACKAGE

9017906293

main90179-06293

9613642501

main96136-42501

10 parts on this diagram · 4 diagrams in section
