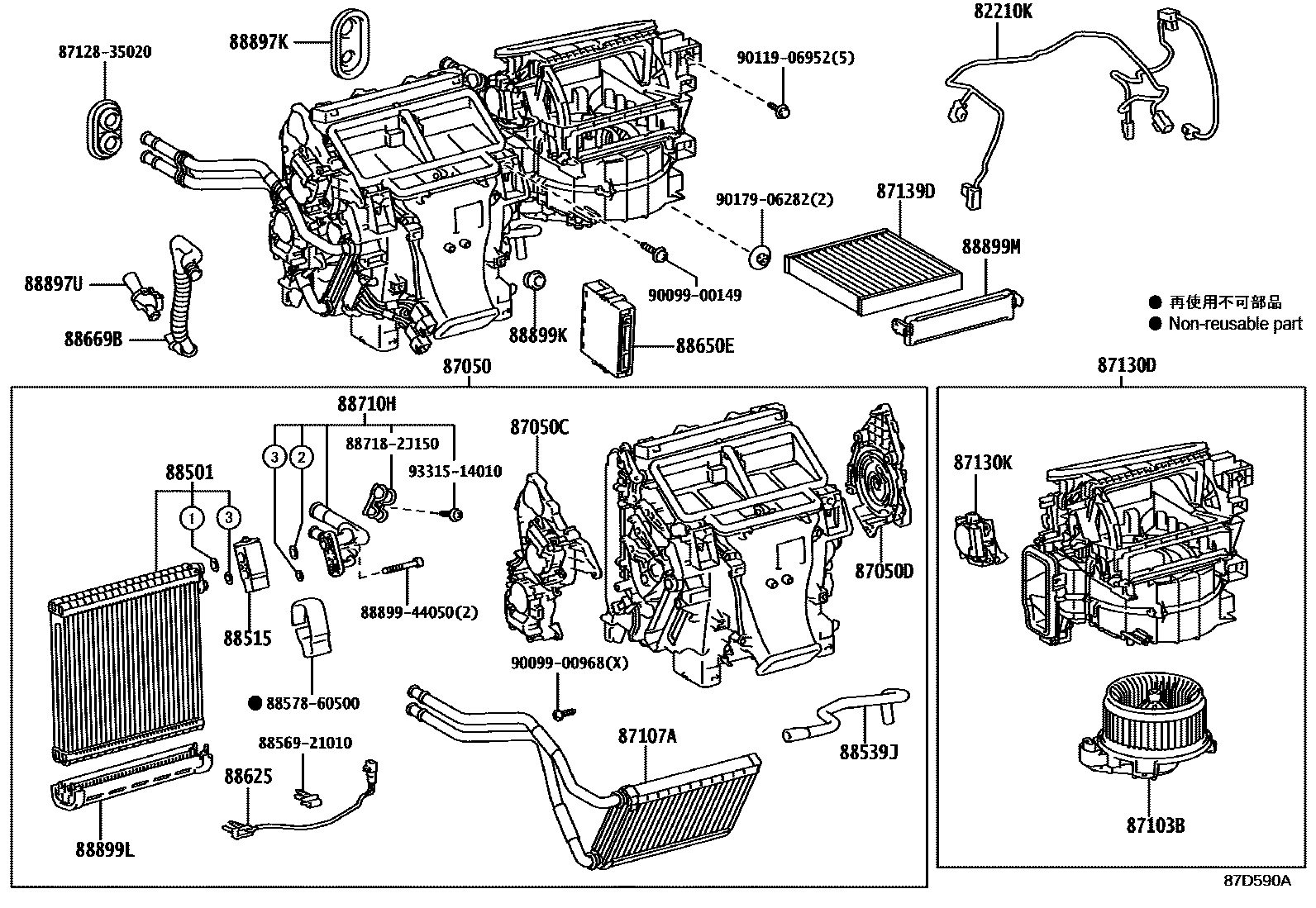

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1REAR 0005 1COOL BOX 0006 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60140iURJ150200911-201509

sub82212-60141

main82212-60141iURJ150201510-201712

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60550iURJ150200911-202008

main87050-60K00iURJ150202008

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-60220iURJ150200911-201908

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-60230iURJ150200911-201908

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-60400iURJ150200911-201908

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60430iURJ150200911-201908

87130DBLOWER ASSY

main87130-60610iURJ150200911-201201

sub87130-60611

main87130-60611iURJ150201202-202003

sub87130-60680

main87130-60680iURJ150202004

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-33270iURJ150200911-201908

87139DELEMENT, AIR REFINER

main87139-30040iURJ150200911-201206

POLLEN FILTER

main87139-50060iURJ150200911-201205

DEODORANT FILTER

sub87139-50100

main87139-50100iURJ150201206-201908

*DPF

main87139-52040iURJ150201206-201908

POLLEN FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60410iURJ150200911-201103

sub88501-60411

main88501-60411iURJ150201104-201111

sub88501-60412

main88501-60412iURJ150201112-202008

main88501-60480iURJ150202008

88515VALVE, COOLER EXPANSION

main88515-50190iURJ150200911-201406

main88515-50240iURJ150201407-202003

sub88515-60300

main88515-60300iURJ150202004

88539JHOSE, DRAIN COOLER

main88539-60340iURJ150200911-201908

88625THERMISTOR, COOLER, NO.1

main88620-50020iURJ150200911-201908

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-60G70iURJ150200911-200912

sub88650-60G71

main88650-60G71iURJ150201001-201005

sub88650-60G72

main88650-60G72iURJ150201006-201206

main88650-60N00iURJ150201206-201308

main88650-60N20iURJ150201308-201508

main88650-60S30iURJ150201508-201601

sub88650-60S31

main88650-60S31iURJ150201602-201608

main88650-60T60iURJ150201608-201908

main88650-60V70iURJ150201908-202008

main88650-6A050iURJ150202008-202108

main88650-6A070iURJ150202108

88669BHOSE, COOLER AIR

main88669-60070iURJ150200911-201908

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-60B70iURJ150200911-201908

88897KGROMMET, (FOR COOLER PIPE)

main88897-35020iURJ150200911-201908

88897UPIPE, ASPIRATOR

main88897-32090iURJ150200911-201908

88899KPLATE, COVER

main88899-3A010iURJ150200911-201908

88899LPARTS, COOLING UNIT

main88899-60460iURJ150200911-201908

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iURJ150200911-201908

8712835020GROMMET, HEATER

main87128-35020

8856921010CLAMP (FOR COOLER RELAY)

main88569-21010

8857860500PAKING, COOLER AIR DUCT

main88578-60500

887182J150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J150

8889944050COVER, EVAPORATOR

main88899-44050

9009900149

main90099-00149

9009900968

main90099-00968

9011906952

main90119-06952

9017906282

main90179-06282

9331514010

main93315-14010

31 parts on this diagram · 6 diagrams in section
