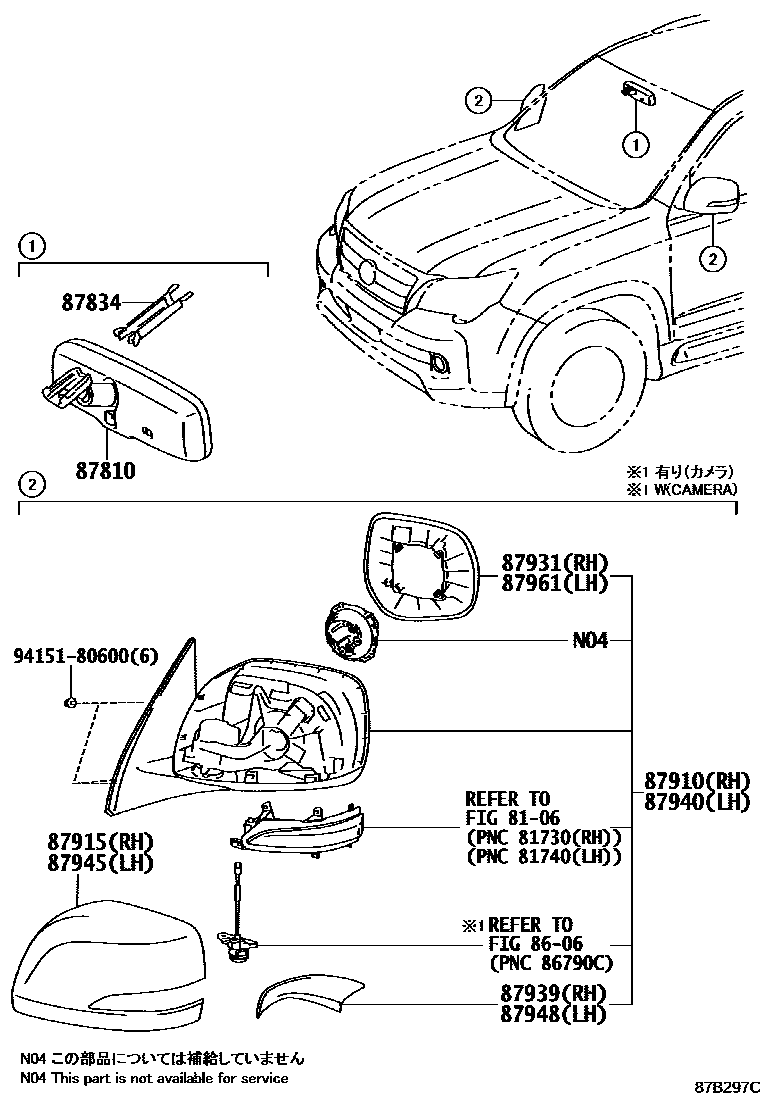

MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)
KAZAKHSTAN SPEC&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-WITH(WITH/GUIDE)
KAZAKHSTAN SPEC
UKRAINE SPEC&AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER&BACK MONITOR-*BGM
UKRAINE SPEC
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER
UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)
sub87910-60E61
NO PAINT REQ.,BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & WITH(BUZZER))
NO PAINT REQ.,MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
NO PAINT REQ.,MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
NO PAINT REQ.,MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
NO PAINT REQ.,MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
NO PAINT REQ.,BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
NO PAINT REQ.,BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
NO PAINT REQ.,BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
NO PAINT REQ.,BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
87931OUTER MIRROR, RH
BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & WITH(BUZZER))
MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANECHANGE ASSIST-WITH(BLIND SPOT MONITOR)
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOTMONITOR)
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
sub87940-60E61
NO PAINT REQ.,BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)
NO PAINT REQ.,BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & WITH(BUZZER))
NO PAINT REQ.,BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & WITH(BUZZER))
NO PAINT REQ.,MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
NO PAINT REQ.,MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
NO PAINT REQ.,BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
NO PAINT REQ.,BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,077
SONIC QUARTZ,085
SILVER M.M.,1G1
SPARKLE SOLID GRAY M.M.,1H3
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
DEEP PERIDOT MC.,6V6
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
87961MIRROR OUTER, LH
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)&LANE CHANGE ASSIST-WITH(BLIND SPOTMONITOR)
9415180600
main94151-80600
13 parts on this diagram · 3 diagrams in section
