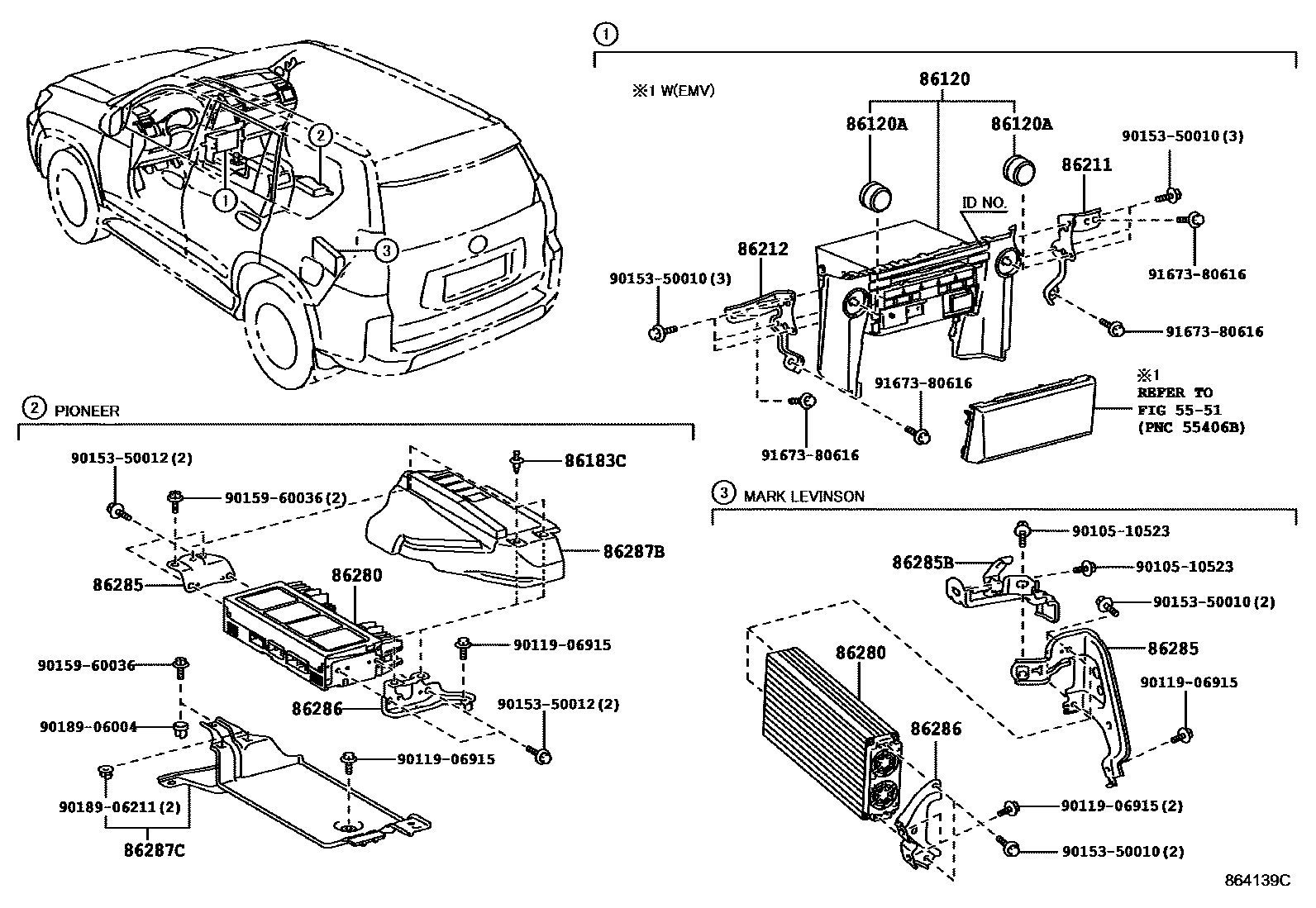

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551

86120RECEIVER ASSY, RADIO

main86120-60F30i200911-201108

PIONEER,ID=P3838

sub86120-60F31

main86120-60F31i201109-201206

PIONEER,ID=P10291

main86120-60F40i200911-201108

PIONEER,ID=P8633,AUDIO-EMV,DVD CHANGER,17SPEAKER

sub86120-60F41

main86120-60F41i201109-201308

PIONEER,ID=P10293,AUDIO-EMV,DVD CHANGER,17SPEAKER

main86120-60L10i201108-201109

PIONEER,ID=P10131,AUDIO-EMV,CD CHANGER,BLUETOOTH,9SPEAKER

sub86120-60L11

main86120-60L11i201109-201308

PIONEER,ID=P10294,AUDIO-EMV,CD CHANGER,BLUETOOTH,9SPEAKER

main86120-60M00i201206-201308

PIONEER,ID=P10422

main86120-60V10i202108-202201

PANASONIC

main86120-60V20i202108-202201

PANASONIC,AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86120-60V50i202108

PIONEER,VIETNAM SPEC

main86120-60V60i202108

PIONEER,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86120-60W10i202201

PANASONIC

main86120-60W20i202201

PANASONIC,AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main86127-60040i201107-201109

main90010-22077i200911-201107

sub86127-60040

main90010-22077i201108-201109

AUDIO-EMV,CD CHANGER,BLUETOOTH,9SPEAKER

sub86127-60040

main90010-22093i201109-201308

AUDIO-EMV,CD CHANGER,BLUETOOTH,9SPEAKER

86183CCLIP, AUDIO RACK

main90467-07076-C0i200911-201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7i201703-201908

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

86211BRACKET, RADIO, NO.1

main86211-60290i201308-202108

main86211-60300i200911-201308

main86211-60690i202108

86212BRACKET, RADIO, NO.2

main86212-60290i201308-201908

main86212-60300i200911-201308

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W680i200911-201101

AUDIO-EMV,DVD CHANGER,17SPEAKER

sub86280-60830

main86280-0W810i201308-201909

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

sub86280-60700

main86280-0W880i201101-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER

sub86280-60840

main86280-0WK20i202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86280-60450i201308-201711

AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

sub86280-60451

main86280-60451i201712-202108

AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER

main86280-60461i201108-201308

AUDIO-EMV,CD CHANGER,BLUETOOTH,9SPEAKER

main86280-60510i200911-201308

main86280-60540i201308-201711

sub86280-60541

main86280-60541i201712-202108

main86280-60700i201910-202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86280-60870i202108

86285BRACKET, AMPLIFIER, NO.1

main86285-60180i201308-202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86285-60180i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER

main86285-60210i200911-202108

main86285-60270i202108

main86285-60330i202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

86285BBRACKET, AMPLIFIER, NO.1

main86285-60110i201308-202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86285-60110i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-60090i200911-201308

AUDIO-EMV,DVD CHANGER,17SPEAKER

main86286-60090i201308-202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

main86286-60120i200911-202108

main86286-60190i202108

main86286-60250i202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

86287BCOVER, AMPLIFIER

main86287-60120i200911-201707

main86287-60150i201708-202010

main86287-60170i202011-202108

main86287-60180i202108

86287CCOVER, AMPLIFIER NO.2

main86287-60130i200911-202108

main86287-60130i202108

AUDIO(OVERSEAS MARKET)-EMV MARK LEVINSON 17SPEAKER

9010510523

main90105-10523

9011906915

main90119-06915

9015350010

main90153-50010

9015350012

main90153-50012

9015960036

main90159-60036

9018906004

main90189-06004

9018906211

main90189-06211

9167380616

main91673-80616

20 parts on this diagram · 7 diagrams in section
