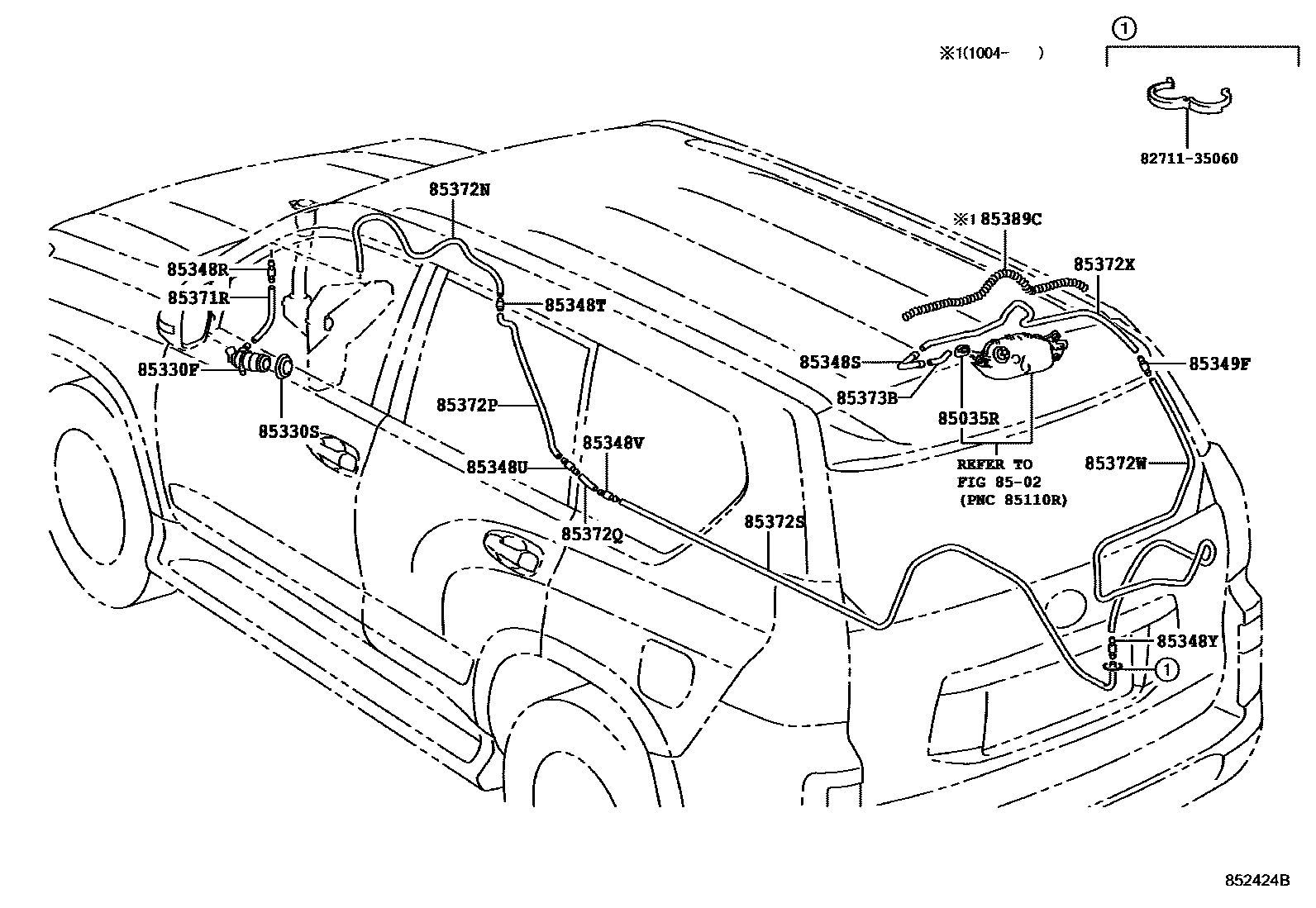

REAR WASHER
8502
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=240)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1100)
L=1100
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=520)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=50)
L=50
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3300(*H,L=3250)
L=3250
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1750
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=470)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=25)
85389CPROTECTOR, WASHER
8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
21 parts on this diagram · 1 diagram in section
