ELECTRONIC MODULATED SUSPENSION

8401

89191ASENSOR, ACCELERATION

main89191-22020iURJ150201107-201908

main89191-50020iURJ150200911-201107

89241BACTUATOR, ABSORBER CONTROL

main89241-60010iURJ150200911-201908

89269ABRACKET, SUSPENSION CONTROL

main89269-60010iURJ150200911-201908

RH

main89269-60020iURJ150200911-201908

LH

89293COMPUTER, SUSPENSION CONTROL

main89293-60100iURJ150200911-201206

main89293-60101iURJ150201206-201308

main89293-60102iURJ150201308-201506

main89293-60103iURJ150201506-201908

main89293-60140iURJ150201908-202108

main89293-60180iURJ150202108

89293ARELAY, SUSPENSION CONTROL

main90987-02025iURJ150200911-201908

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-60040iURJ150200911-201908

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-60030iURJ150200911-201908

9011005004

main90110-05004

91631J0612

main91631-J0612

91641H0820

main91641-H0820

9418560600

main94185-60600

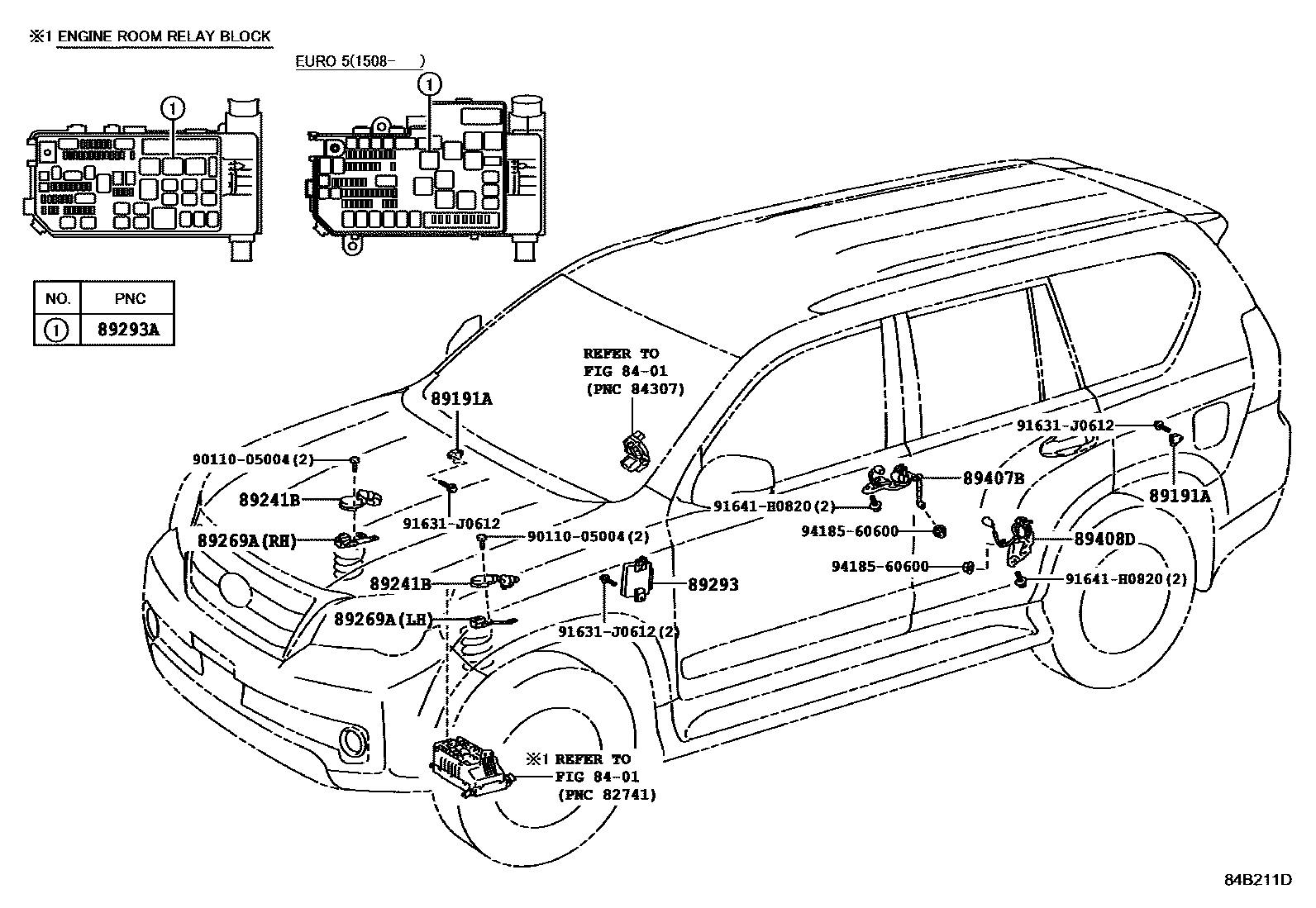

12 parts on this diagram · 1 diagram in section
