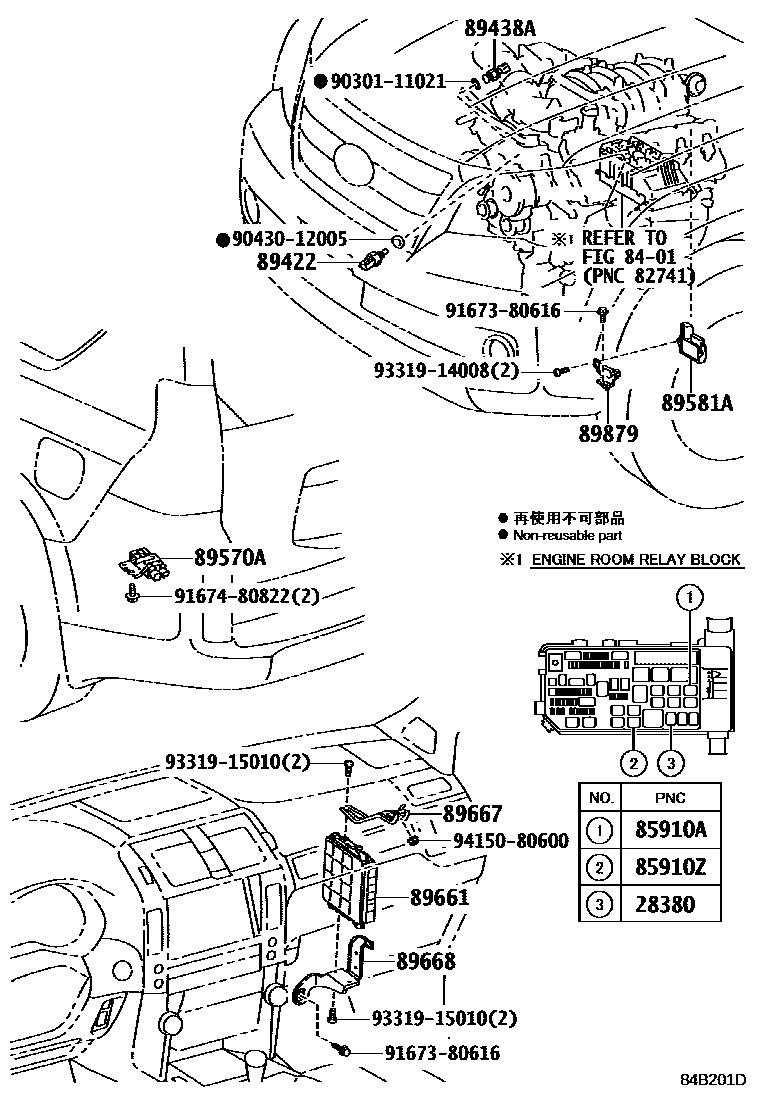

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main90987-02027i1URFE..URJ150200911-201908

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iURJ150200911-201908

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iURJ150200911-201908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iURJ150200911-201908

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34020iURJ150200911-201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60180iURJ150200911-201908

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010iURJ150200911-201908

89661COMPUTER, ENGINE CONTROL

main89661-60L90iURJ150200911-201308

main89661-60L90iURJ150201308-201508

P/N LABEL=8966160L90

main89666-60D30iURJ150201508-201908

P/N LABE=8966660D30

main89666-60J90iURJ150201908

DENSO

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60270iURJ150200911-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60290iURJ150200911-201908

89879BRACKET, INJECTOR DRIVER

main89589-60040iURJ150200911-201908

9030111021

main90301-11021

9043012005

main90430-12005

9167380616

main91673-80616

9167480822

main91674-80822

9331914008

main93319-14008

9331915010

main93319-15010

9415080600

main94150-80600

19 parts on this diagram · 2 diagrams in section
