WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1DOOR 0008 1FLOOR & ROOF 0009 1FLOOR & ROOF 0010 1SEAT 0011 1CLAMP & BRACKET 1/2 0012 1CLAMP & BRACKET 2/2 0013 1CABLE BOND 0014 1CONNECTOR 1/4 0015 1CONNECTOR 2/4 0016 1CONNECTOR 3/4 0017 1CONNECTOR 4/4

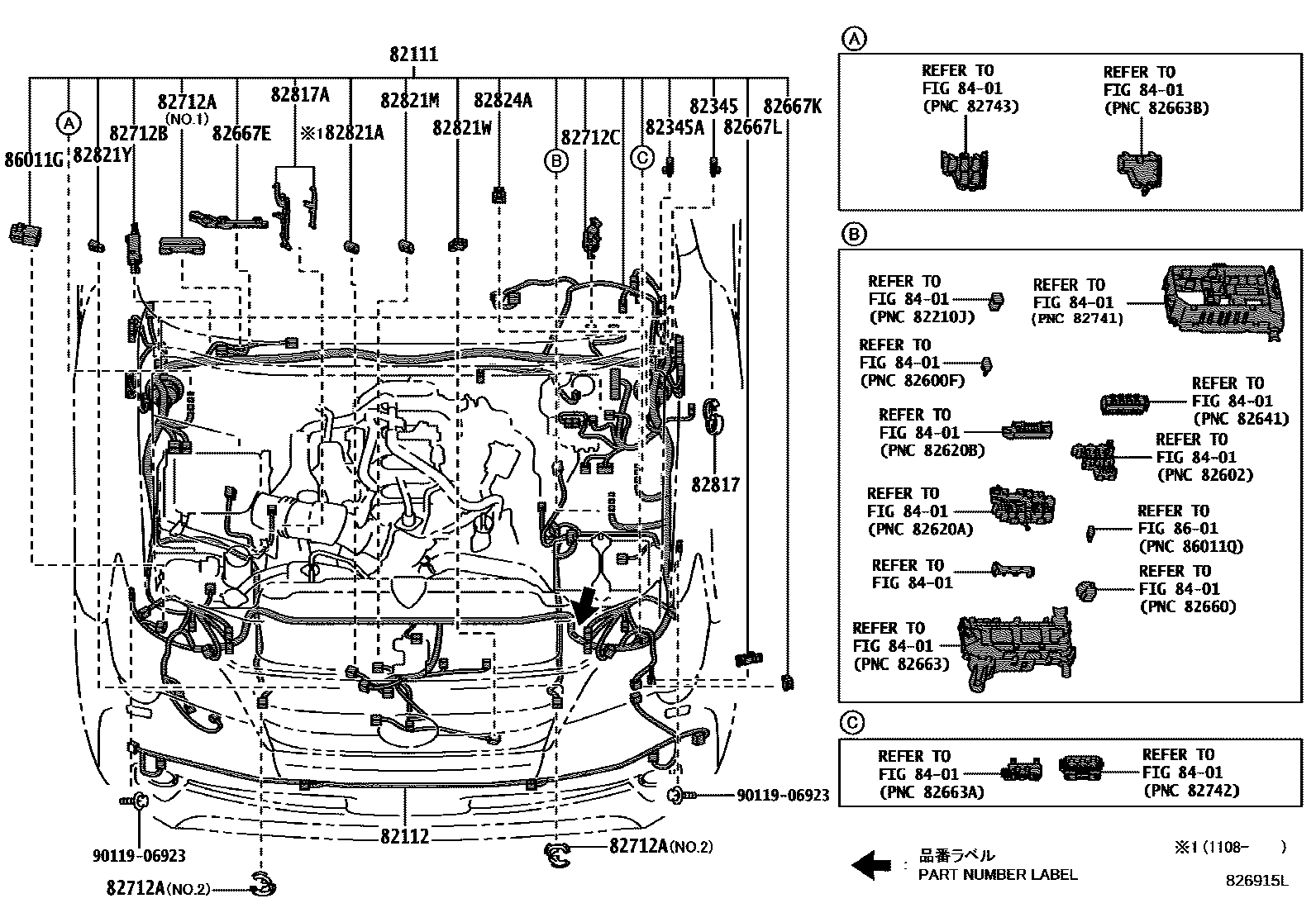

82111WIRE, ENGINE ROOM MAIN

main82111-60J40iURJ150200911-201008

main82111-60K80iURJ150201206-201308

main82111-60P60iURJ150201008-201101

sub82111-60P61

main82111-60P61iURJ150201102-201108

main82111-60Z90iURJ150201108-201206

main82111-6AE30iURJ150201308-201508

sub82111-6AE31

main82111-6AV60iURJ150201508-201608

sub82115-60A70

main82111-6AV61iURJ150201608-201707

sub82115-60A80

main82111-6AV62iURJ150201708-201804

sub82111-6AV63

main82111-6AV63iURJ150201805-201902

sub82111-6AV64

main82111-6AV64iURJ150201903-201908

main82115-60B20iURJ150201908-202008

main82115-60B21iURJ150202008-202108

main82115-60B22iURJ150202108

82112WIRE, ENGINE ROOM, NO.2

main82112-60730iURJ150200911-201308

main82112-60770iURJ150201308-201908

main82112-60A50iURJ150201908

82345DIODE

main82345-12030iURJ150201908

82345ADIODE

main82345-12050iURJ150201908

82667EHOLDER, CONNECTOR, NO.20

main82666-60F10iURJ150201508-201908

82667KHOLDER, CONNECTOR, NO.25

main82666-26350iURJ150202108

82667LHOLDER, CONNECTOR, NO.26

82712ASUPPORT, WIRING HARNESS

main82712-60B20iURJ150200911-201908

NO.2

main82712-60B90iURJ150200911-201908

NO.1

82712BSUPPORT, WIRING HARNESS

main82712-60B70iURJ150201508-201908

82712CSUPPORT, WIRING HARNESS, NO.1

main82712-60B80iURJ150201508-201908

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840iURJ150200911-201908

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-60K80iURJ150200911-201908

82821ACOVER, CONNECTOR

main82821-71080iURJ150201108-201308

82821MCOVER, CONNECTOR

main82821-12400iURJ150200911-201908

82821WCOVER, CONNECTOR

main82821-30700iURJ150201908

82821YCOVER, CONNECTOR

main90980-11033iURJ150201908

82824CONNECTOR, WIRING HARNESS

main82824-28180iURJ150202108

82824ACONNECTOR, WIRING HARNESS

main82824-26020iURJ150201908

8401

8601

86011GCONDENSER

main90980-04083iURJ150200911-201308

9011906923

main90119-06923

22 parts on this diagram · 17 diagrams in section
