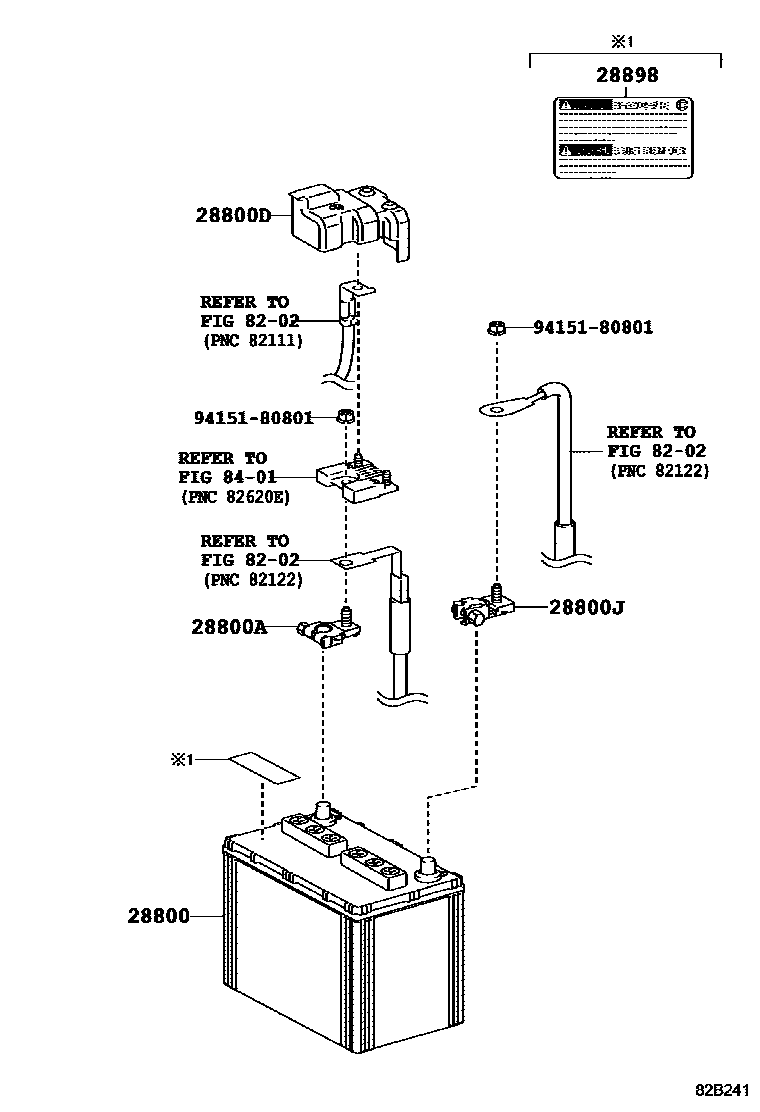

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-38200i1URFE..URJ150202103-202208

105D31L,FURUKAWA

sub28800-38201

main28800-38201i1URFE..URJ150202209

105D31L,FURUKAWA

sub28800-38202

main28800-64181i1URFE..URJ150200911-201204

95D31L,YUASA

sub28800-78120

main28800-64251i1URFE..URJ150200911-201101

105D31L,FURUKAWA

sub28800-64905

main28800-64905i1URFE..URJ150201101-202102

105D31L,FURUKAWA

sub28800-38200

main28800-66013i1URFE..URJ150201205-202305

105D31L,YUASA

sub28800-66014

main28800-66014i1URFE..URJ150202306

105D31L,YUASA

sub28800-66015

28800ATERMINAL, BATTERY POSITIVE

main90982-05069i1URFE..URJ150200911-201908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-60040i1URFE..URJ150201508-201610

sub82621-60041

main82621-60041i1URFE..URJ150201611-201908

main82821-60270i1URFE..URJ150200911-201508

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1URFE..URJ150200911-201908

28898PLATE, BATTERY

main28897-31040i1URFE..URJ150201908

main28897-31040i1URFE..URJ150201308-201908

ARMENIA SPEC

main28897-31040i1URFE..URJ150201308-201908

GEORGIA SPEC

main28897-31040i1URFE..URJ150201206-201908

AZERBAIJAN SPEC

main28898-46020i1URFE..URJ150200911-201206

AZERBAIJAN SPEC

8202

8401

9415180801

main94151-80801

8 parts on this diagram · 2 diagrams in section
