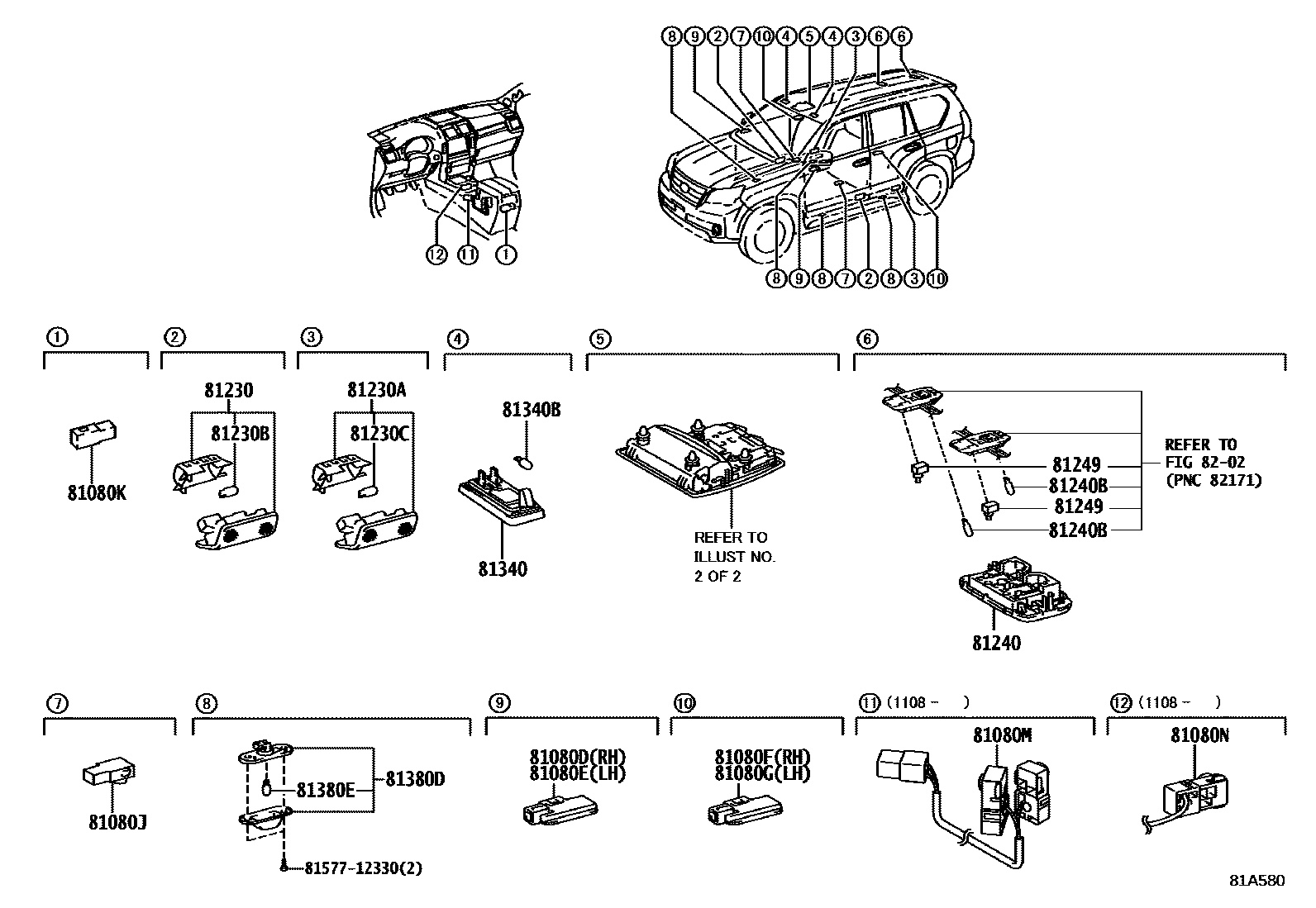

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
2 SEAT PACKAGE&COOL BOX-WITH
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81230BBULB(FOR COURTESY LAMP)
12V 5W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 5W
81240LAMP ASSY, ROOM, NO.1
ECRU,TRIM0#,4#
LT.GRAY,TRIM2#
BLACK,TRIM2#
81240BBULB, ROOM LAMP, NO.1
12V 5W
81249SWITCH, ROOM LAMP
81340LAMP ASSY, VANITY
ECRU,TRIM0#,4#
LT.GRAY,TRIM2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81380DLAMP ASSY, STEP
81380EBULB (FOR STEP LAMP)
8202
8157712330
main81577-12330
21 parts on this diagram · 2 diagrams in section
