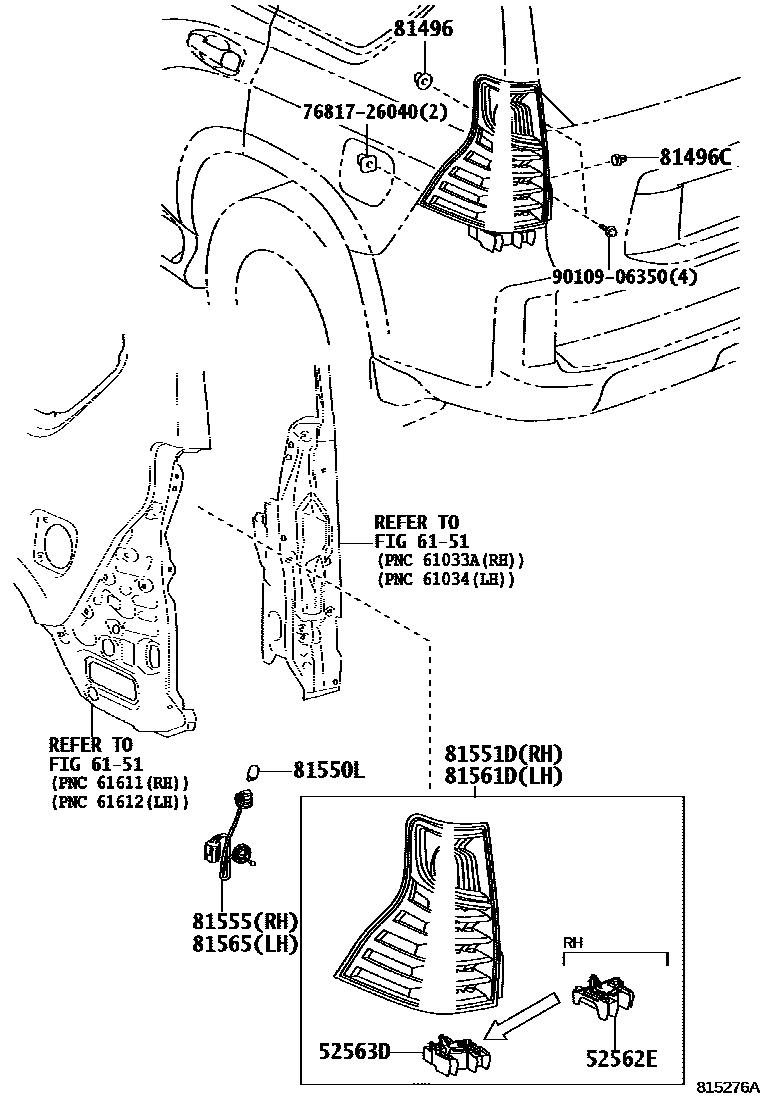

REAR COMBINATION LAMP

0001 1 0002 1W/O(SPORT PACKAGE) 0003 1W(SPORT PACKAGE)

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60070iURJ150200911-201908

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60070iURJ150200911-201908

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iURJ150200911-201908

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iURJ150200911-201908

81550LAMP ASSY, REAR COMBINATION, RH

main90981-15011

main81550-WY050

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iURJ150200911-201308

main90981-15011iURJ150201308-201908

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60A10iURJ150200911-201303

sub81551-60A11

main81551-60A11iURJ150201303-201308

main81551-60B40iURJ150201308-201606

sub81551-60B41

main81551-60B41iURJ150201606-201908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60A10iURJ150200911-201606

main81555-60B41iURJ150201606-201908

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60850iURJ150200911-201303

sub81561-60851

main81561-60851iURJ150201303-201308

main81561-60B20iURJ150201308-201606

sub81561-60B21

main81561-60B21iURJ150201606-201908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60A10iURJ150200911-201308

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9010906350

main90109-06350

13 parts on this diagram · 3 diagrams in section
