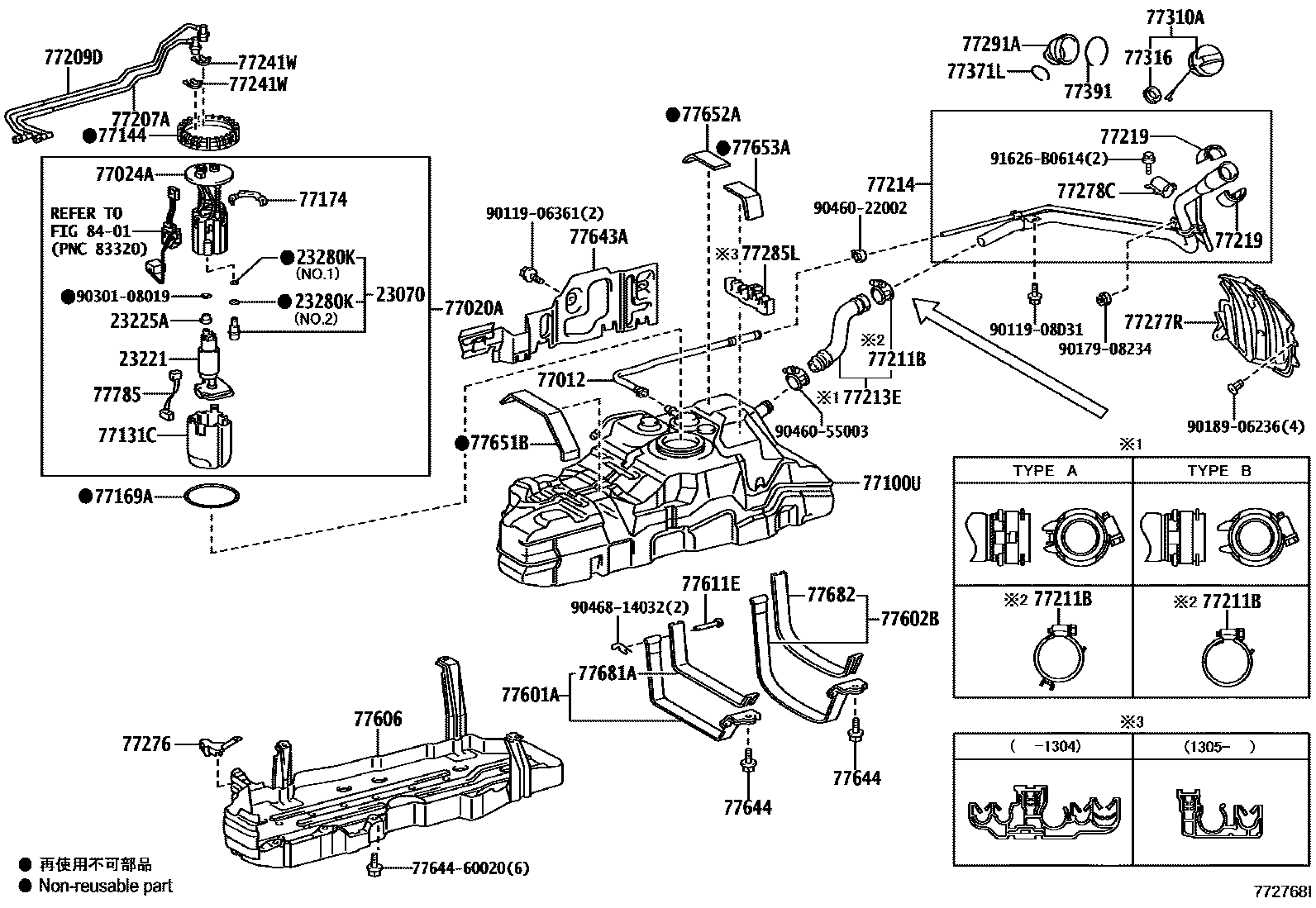

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77174SUPPORT, FUEL SUCTION, NO.1
77207ATUBE SUB-ASSY, FUEL RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
77213EHOSE, FUEL TANK TO FILLER PIPE
CLAMP = TYPE A
CLAMP = TYPE B
77214PIPE, FUEL TANK FILLER
77219COVER, FUEL TANK FILLER PIPE
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77371LRING, FUEL TANK FILLER PIPE SHIELD
77391RING, FUEL INLET BOX
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
VIETNAM SPEC
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611EPIN, FUEL TANK BAND
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
8401
7764460020BOLT, FUEL TANK
main77644-60020
9011906361
main90119-06361
9011908D31
main90119-08D31
9017908234
main90179-08234
9018906236
main90189-06236
9030108019
main90301-08019
9046022002
main90460-22002
9046055003
main90460-55003
9046814032
main90468-14032
91626B0614
main91626-B0614
51 parts on this diagram · 3 diagrams in section
