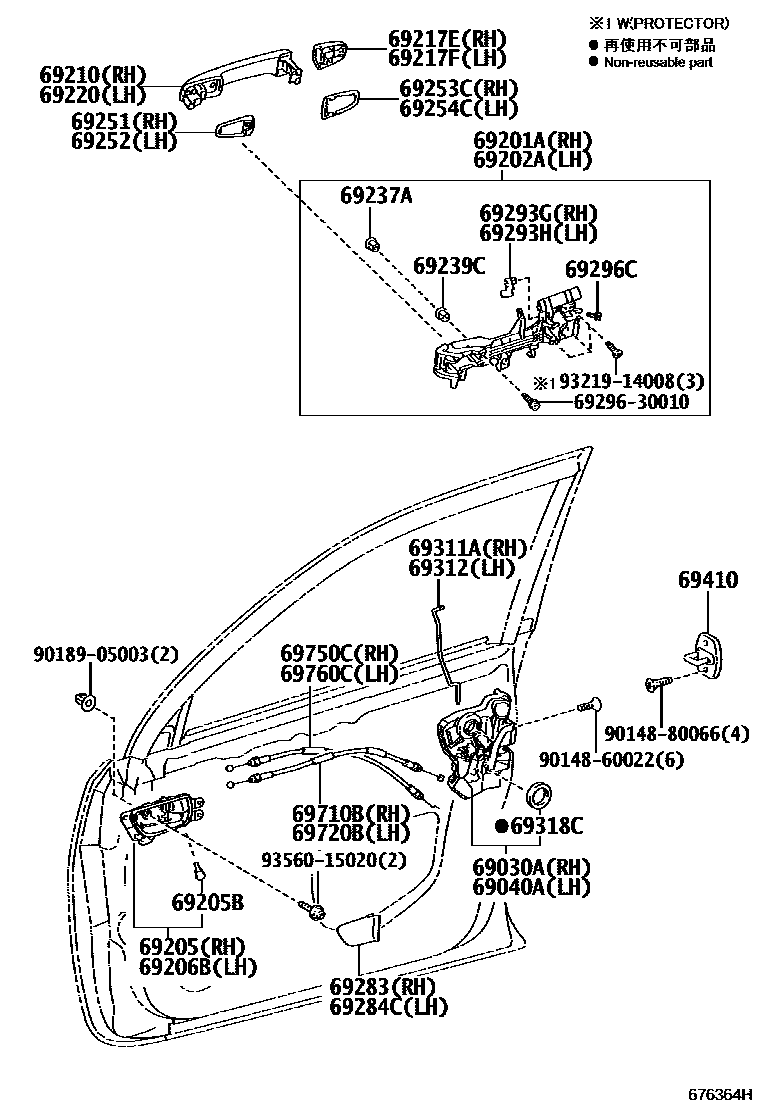

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
sub69202-60030
sub69202-60031
sub69202-60051
sub69202-60071
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
FIRE AGATE M.M.,4V3
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,202
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
GARNET RED MC.,3S0
FIRE AGATE M.M.,4V3
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9321914008
main93219-14008
9356015020
main93560-15020
36 parts on this diagram · 1 diagram in section
