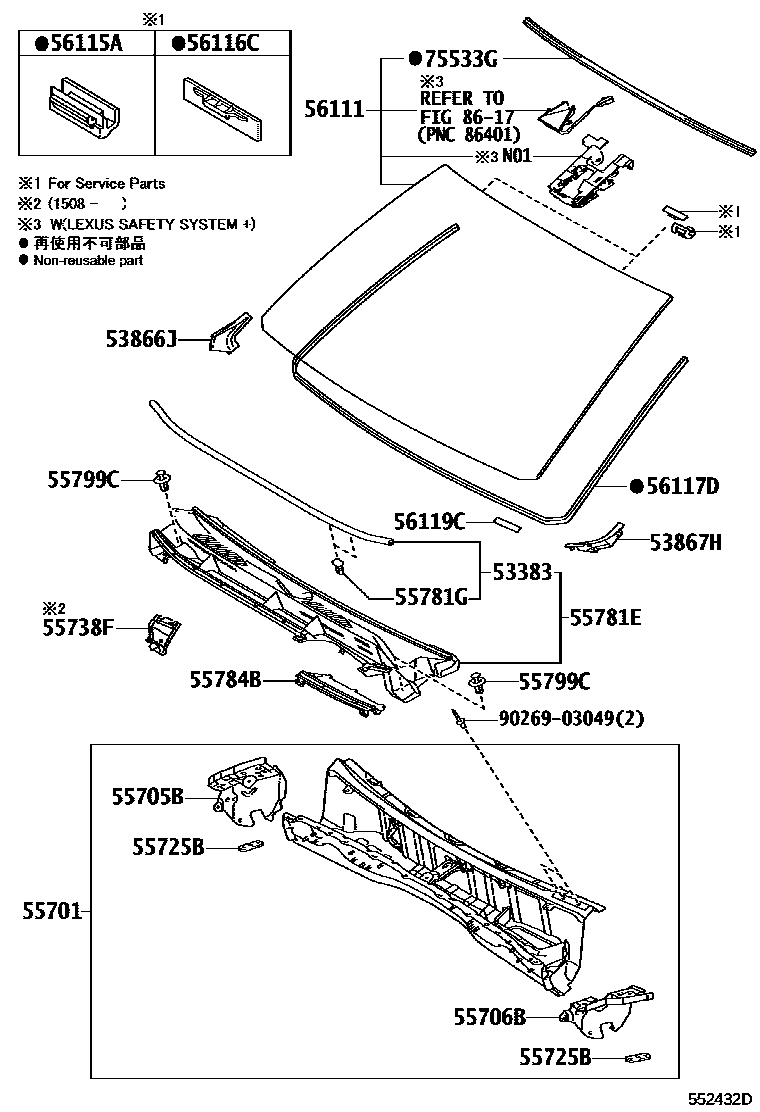

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60080iURJ150200911-201908

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60080iURJ150200911-201402

sub53866-60081

main53866-60081iURJ150201403-201411

sub53866-60090

main53866-60090iURJ150201412-201908

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60070iURJ150200911-201411

sub53867-60090

main53867-60090iURJ150201412-201908

55701PANEL SUB-ASSY, COWL

main55700-60C00iURJ150200911-201502

sub55700-60C01

main55700-60C01iURJ150201503-201702

sub55700-60C02

main55700-60C02iURJ150201703-201908

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-60020iURJ150200911-201908

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-60050iURJ150200911-201908

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020iURJ150200911-201908

55738FCOVER, FRONT PANEL, LH

main55738-60030iURJ150201508-201908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60160iURJ150200911-201105

sub55708-60161

main55708-60161iURJ150201106-201401

sub55708-60162

main55708-60162iURJ150201402-201508

main55708-60210iURJ150201508-201908

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iURJ150200911-201908

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-60080iURJ150200911-201908

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07211iURJ150200911-201401

main90467-07217iURJ150201402-201908

56111GLASS, WINDSHIELD

main56101-60300iURJ150200911-201308

*EHL,T=5.36,GREEN

sub56101-60800

main56101-60380iURJ150201508-201908

main56101-60800iURJ150201308-201508

*EHL,T=5.36,GREEN

main56101-60N10iURJ150201908-202008

sub56101-60N11

main56101-60N11iURJ150202008

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iURJ150200911-201908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iURJ150200911-201908

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60110iURJ150201908

L=2823,GEORGIA SPEC

main56117-60110iURJ150201908

L=2823,GEORGIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main56117-60110iURJ150201908

L=2823,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main56117-60110iURJ150200911-201908

L=2823

56119CSEAL, WINDSHIELD GLASS

main56119-60020iURJ150200911-202008

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60060iURJ150200911-201908

8617

9026903049

main90269-03049

20 parts on this diagram · 1 diagram in section
