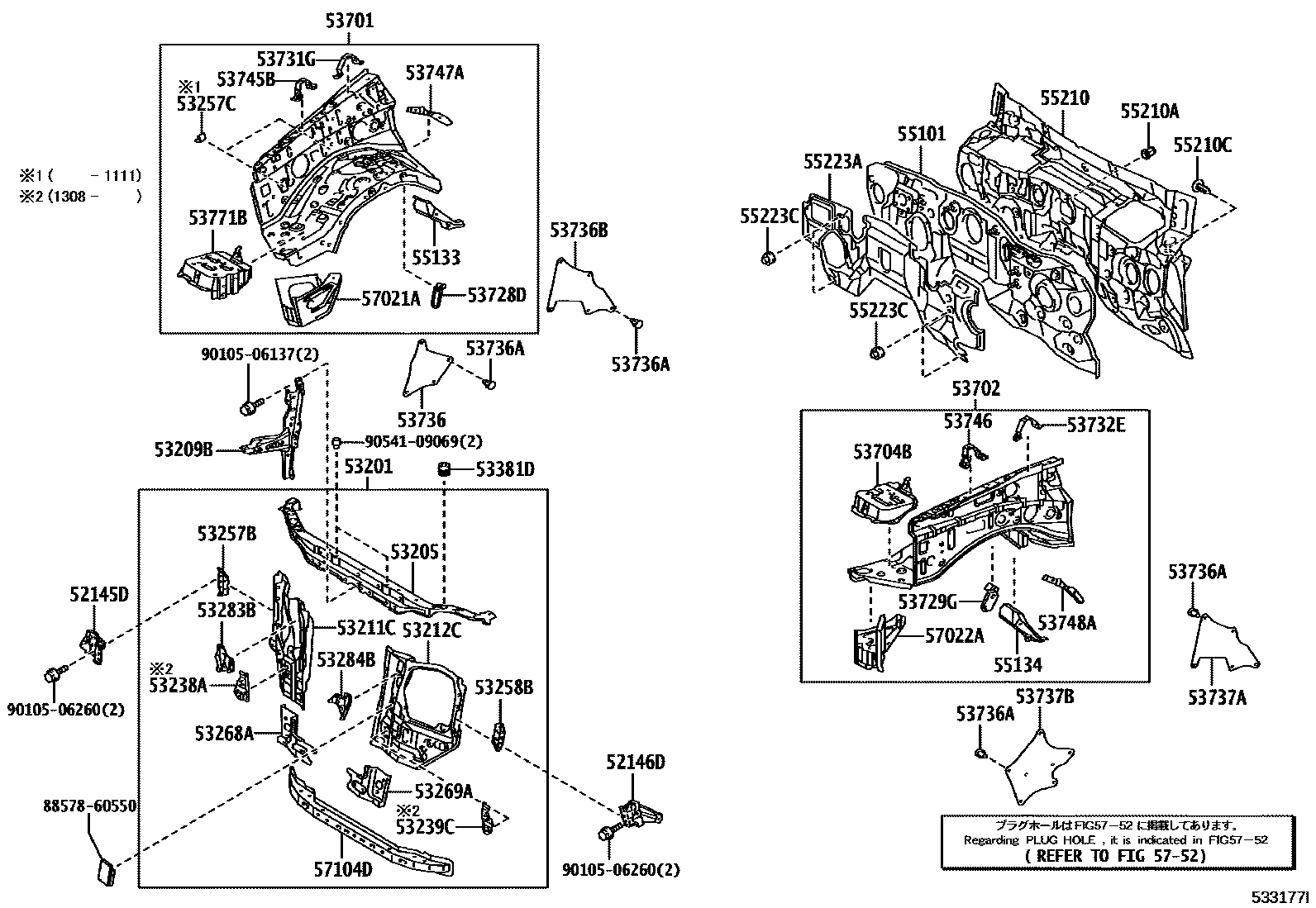

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53238ABRACKET, HOOD BUMPER MOUNTING
53239CBRACKET, HOOD BUMPER MOUNTING, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53381DBUMPER, HOOD TO FRONT SHROUD
53704BSUPPORT SUB-ASSY, BATTERY, LH
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53731GREINFORCEMENT, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
53737BSEAL, FRONT FENDER APRON, LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53747PLATE, AIR SEALED, RH
53747AEXTENSION, APRON FENDER SIDE, RH
53748PLATE, AIR SEALED, LH
53748AEXTENSION, APRON FENDER SIDE, LH
53771BSUPPORT, BATTERY CARRIER, RH
55101PANEL SUB-ASSY, DASH
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210ACLIP
55210CCLIP
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
8857860550PAKING, COOLER AIR DUCT
main88578-60550
9010506137
9010506260
9054109069
52 parts on this diagram · 3 diagrams in section
