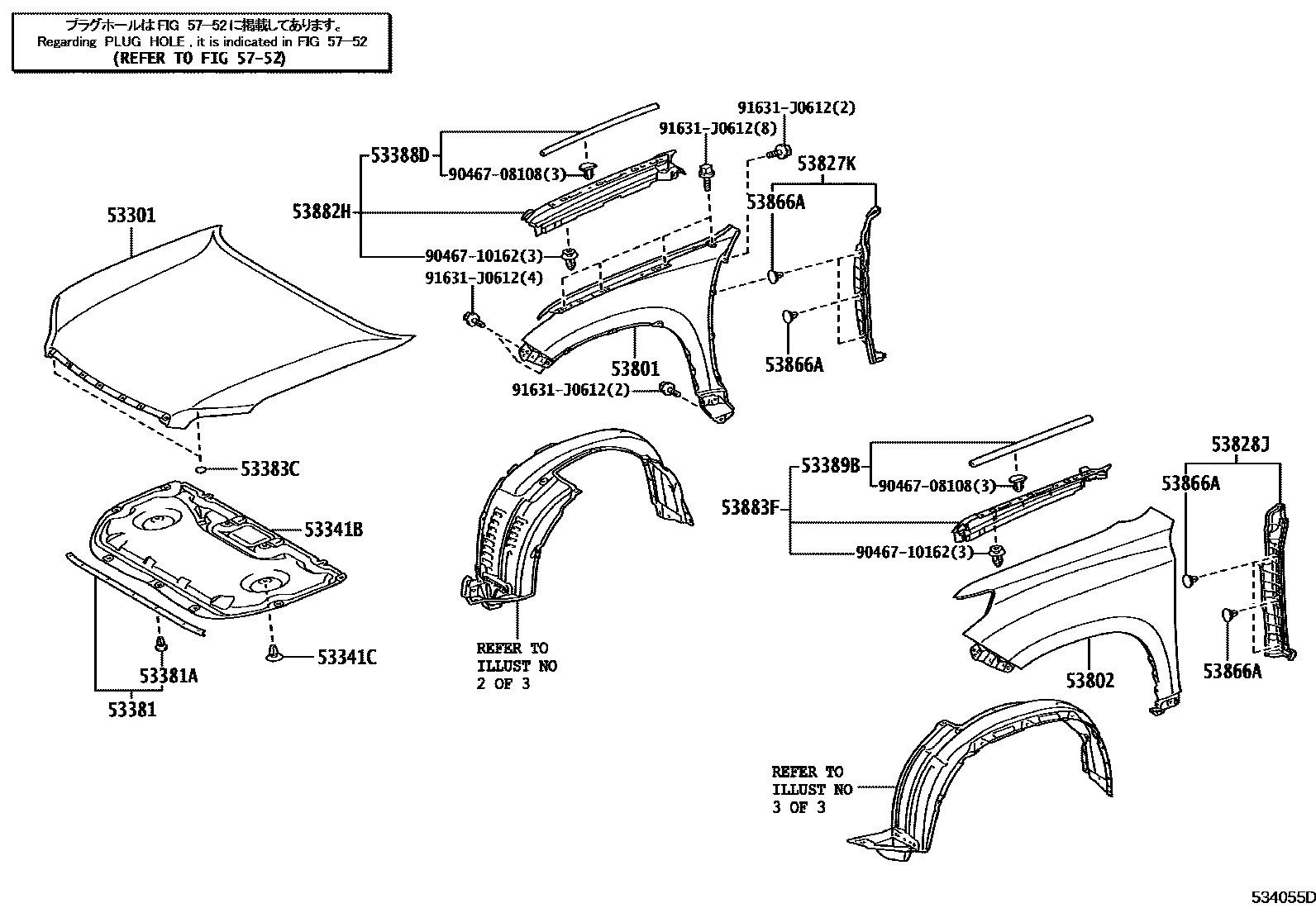

HOOD & FRONT FENDER

0001 1 0002 1RH 0003 1LH 0004 1 0005 1RH 0006 1LH

53301HOOD SUB-ASSY

main53301-60640iURJ150200911-201908

53341BINSULATOR, HOOD

main53341-60360iURJ150200911-201908

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iURJ150200911-201908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60140iURJ150200911-201908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iURJ150200911-201908

53383CSEAL, HOOD TO COWL TOP

main90950-06096iURJ150201406-201908

main90950-06124iURJ150200911-201405

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60050iURJ150200911-201908

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-60050iURJ150200911-201908

53801FENDER SUB-ASSY, FRONT RH

main53811-60C80iURJ150200911-201908

53802FENDER SUB-ASSY, FRONT LH

main53812-60C30iURJ150200911-201908

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60040iURJ150200911-201908

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60060iURJ150200911-201908

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main53857-47011iURJ150201102-201908

main90467-06205-C0iURJ150200911-201101

BLACK

53882HSEAL, FRONT FENDER MAIN, RH

main53807-60150iURJ150200911-201308

main53807-60160iURJ150201308-201908

53883FSEAL, FRONT FENDER MAIN, LH

main53808-60100iURJ150200911-201308

main53808-60110iURJ150201308-201908

5752

9046708108

main90467-08108

9046710162

main90467-10162

91631J0612

main91631-J0612

19 parts on this diagram · 6 diagrams in section
