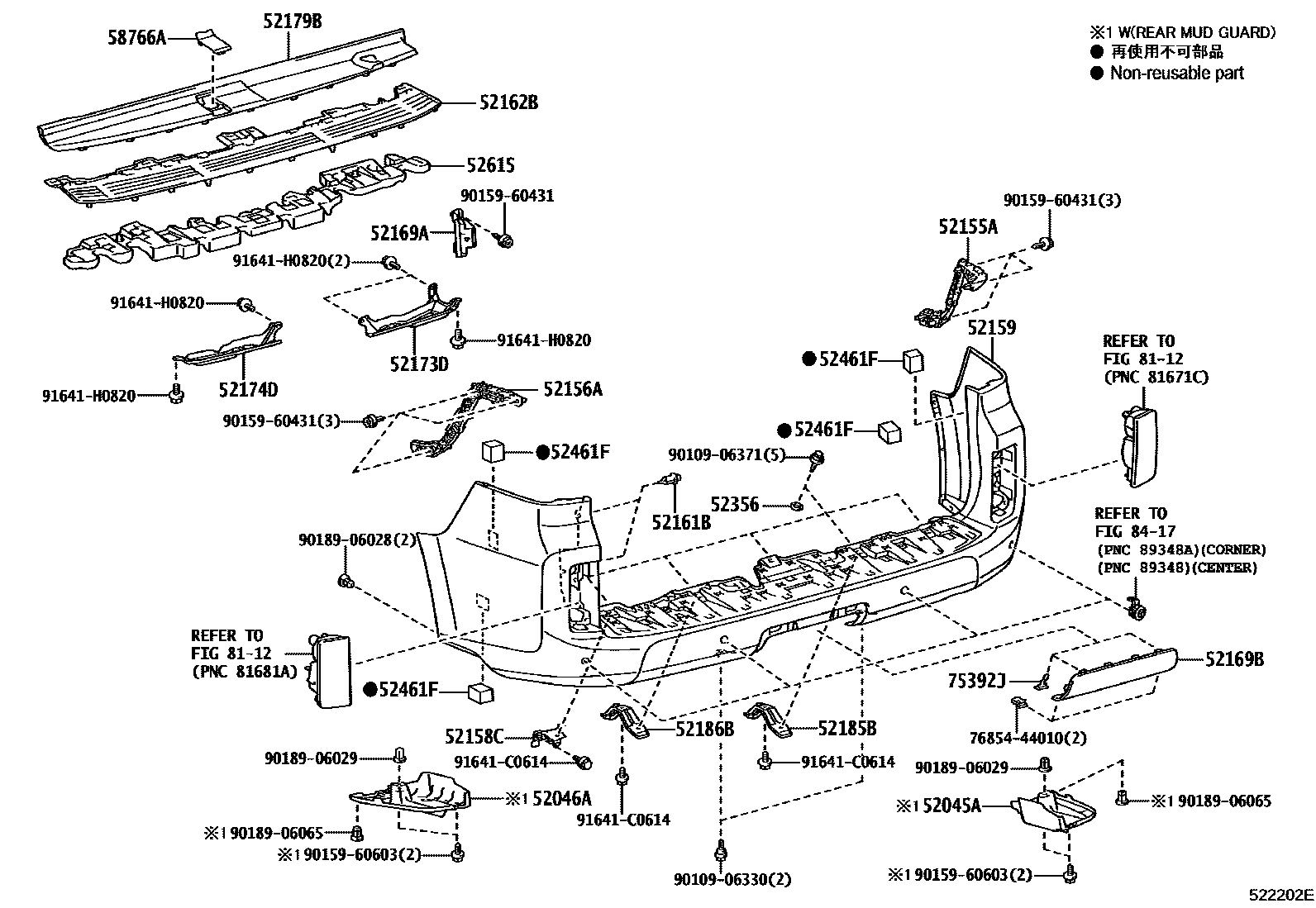

REAR BUMPER & BUMPER STAY
52045APROTECTOR SUB-ASSY, REAR BUMPER, RH
52046APROTECTOR SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52169ASUPPORT, REAR BUMPER SIDE, NO.3
BLACK,1H3 ,1H9 ,202 ,217 ,3S0 ,4U7 ,4V3 ,8X5
52169BBRACKET, REAR BUMPER, CENTER
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52179BPLATE, REAR BUMPER BAR
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52356CUSHION, REAR BUMPER STEP
52461FPAD, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
58766ACOVER, JACK BOX HOLE
75392JRETAINER, OUTSIDE MOULDING
8112
8417
7685444010RETAINER, FRONT SPOILER, UPPER LH
9010906330
9010906371
9015960431
9015960603
9018906028
9018906029
9018906065
91641C0614
91641H0820
32 parts on this diagram · 3 diagrams in section
