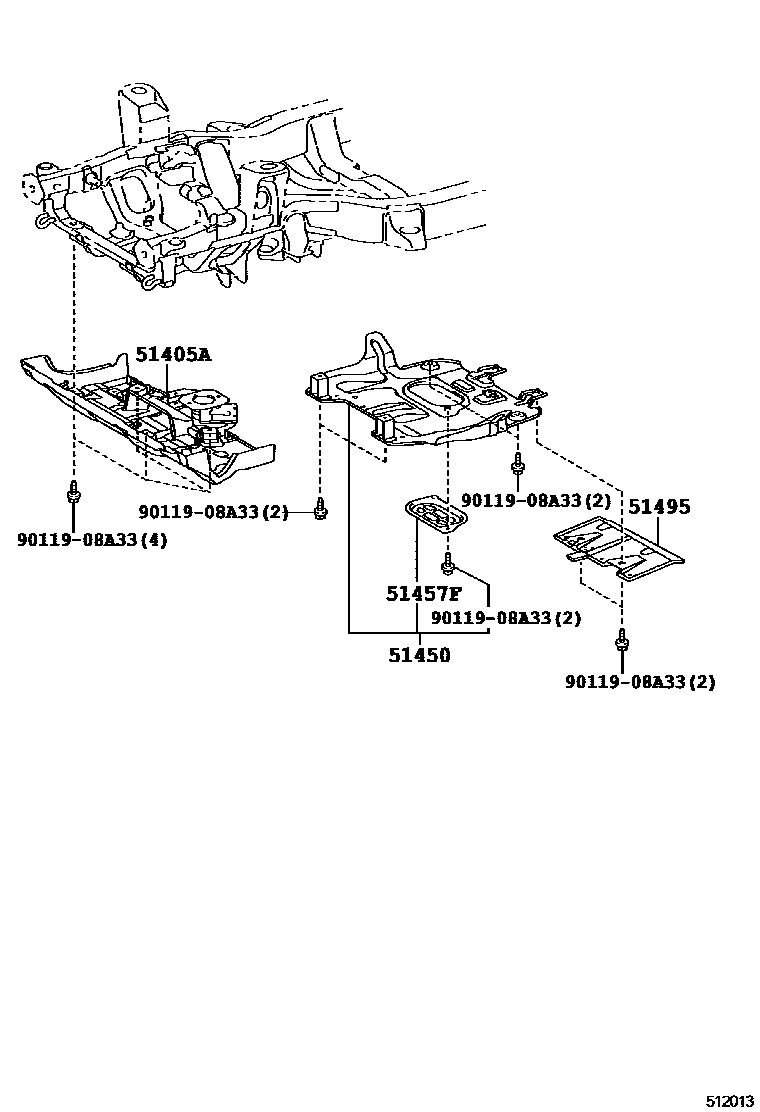

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60220iURJ150200911-201908

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iURJ150200911-201908

51457FSEAL, ENGINE UNDER COVER

main51457-60030iURJ150200911-201908

51495COVER, TRANSMISSION UNDER

main51495-60380iURJ150200911-201908

9011908A33

main90119-08A33

5 parts on this diagram · 1 diagram in section
